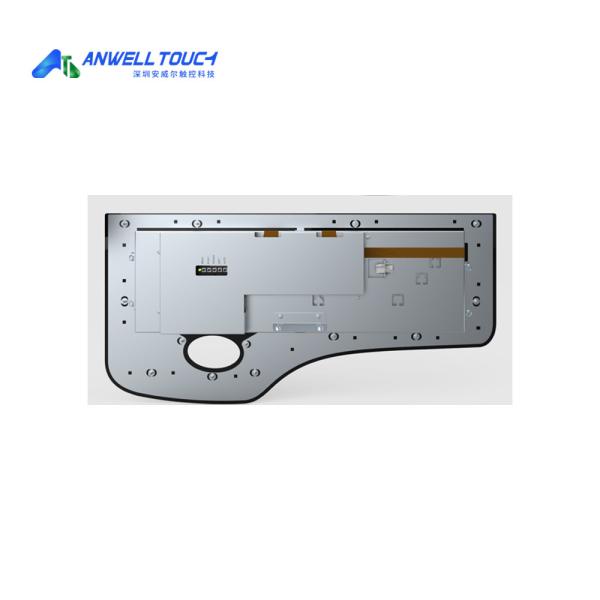

SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
SG TwinStar J43 IDeck 19.4inch Lcd Button Panel / Ideck Touch Monitor
Specifications
Brand Name :
Anwell Touch
Model Number :
AW194CB-GT01
Certification :
CE,RoHS,FCC
Place of Origin :
China
MOQ :
2 Pieces
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
1000 pieces per Month
Delivery Time :
8-15 working days
Packaging Details :
Standard carton box
Display Colors :
16.7M
Response :
<10 msec
Viewing Angle :
89/89/89/89(Typ.)(CR≥10)
Touch Technology :
Capacitive touch
Touch Connector :
USB
Surface Hardness :
7H
Operating Temperature :
0°C~45°C
Humidity Range (RH) :
10%-80%RH, 40"C
Description
Product Description
Specifications
TwinStar J43 iDeck
Panel Size 19.4"
Active Area 476.64mmx126.6mm
Resolution 1920*510
Pixels Pitch 248.25 (per one triad) ×248.25
Display Colors 16.7M
Scale Ratio 19:5
C/R 3000:1
Brightness 1000cd/cm²
Back-Light LED Lighting Bar Type
Viewing Angle Range 89/89/89/89
　
Touch Technology P-CAP
Touch Points 10Points(Max)
Touch Construction G+G
Touch Cover Glass T=1.8mm
Interface USB-B Female
Input Source Finger
Response Speed <10ms
Supports OS windows xp/7/8/10, Linux, Android, MacOS
Technical Service Customize protocol for USB and RS232 interface
Firmware Upgrade Supports Upgrade Firmware Via USB Interface
　
Temperature Operating:0°C~45°C
Storage:-20°C-55°C
Humidity Operating:10%-80%RH, 40"C
Storage:10%-80%RH, 40°C
　
Product Dimension 664mm x 247.3mm x 46.4mm
Net Weight 2.5kg
Package Dimension 740mm*300mm*200mm
Gross Weight 3.2kg
