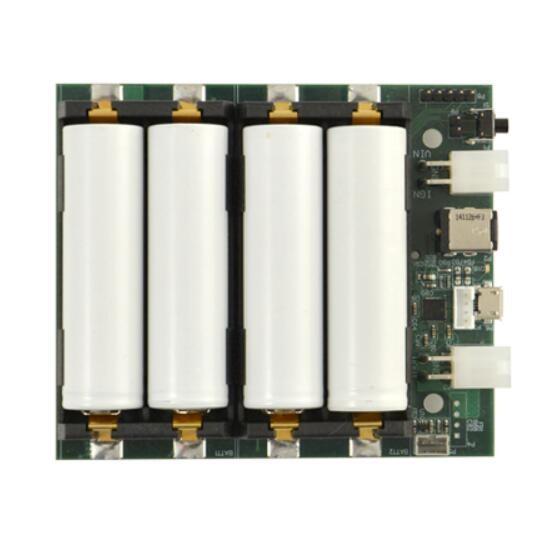

NUC-UPS ITX-UPS was designed to provide regulated power output from the widest input voltage (6-36V) or battery backup, microprocessor assisted Li-Ion battery charging and cell balancing in a single PCBA. Battery cells are inserted in the device, no need for special cabling between cells and UPS.

The UPS contains a synchronous buck-boost converter with high accuracy voltage and current regulation and automatic system power path selection from adapter or battery. It charges the battery in three phases: preconditioning, constant current mode and constant voltage mode.

NUC-UPS ITX-UPS has Windows support allowing developers to interface to custom applications.

Output and settings can be monitored via custom software applications, 2nd battery status shows on all Windows systems.

Full feature List:

Installation 2.5 inch HDD location

USB interface, works with Windows/ Linux devices

Input between 6-36V

Programmable thresholds, timings and configuration modes

Generates regulated 12V output voltage

Output current 5A continuous

Supports Li-Ion (3.7V) battery chemistry

3 state charger (precharge, constant current, constant voltage)

Battery balancing, 4S configuration

Charge voltage 4x4.2V, charge current 1A, precharge current ~0.3A

Coulomb counting

Battery temperature monitoring for each cell and temperature compensated charge

Start/Stop button and header

Motherboard ON/OFF pulse control*

Motherboard detection by power consumption or 5VUSB presence

Missing battery cells detection

Ultra low power consumption

Windows detects device as “Battery”,
