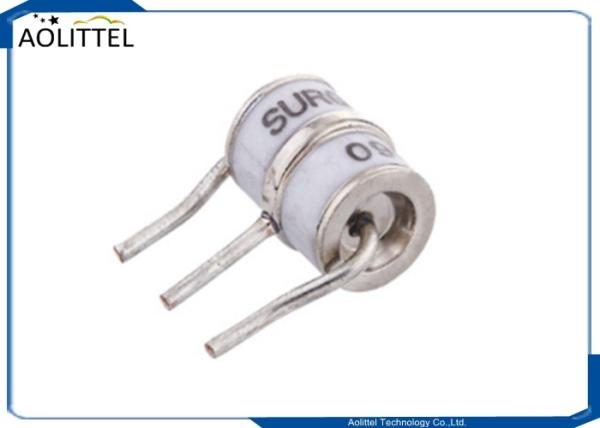

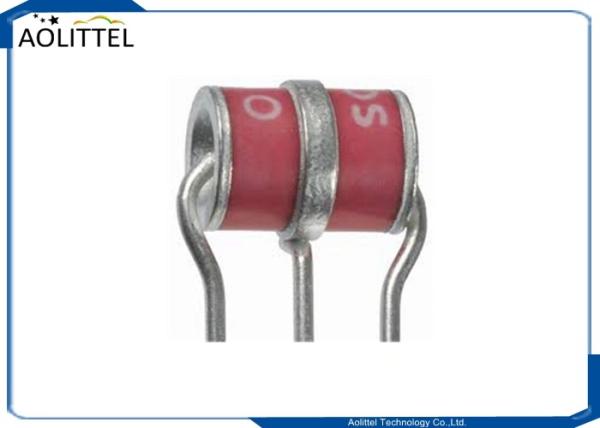

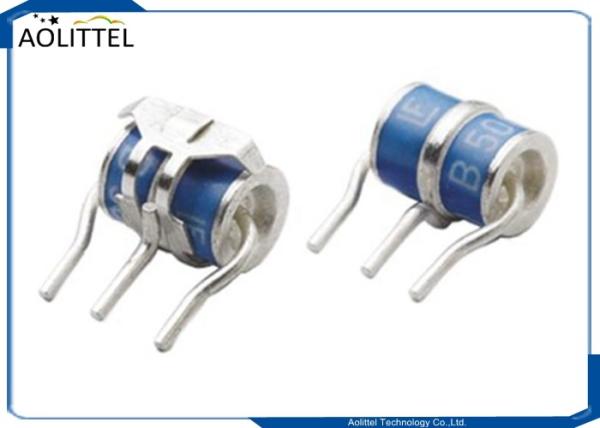

2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA
Specifications
Model Number :
SG83-350X
Place of Origin :
Made In China
MOQ :
5000PCS
Price :
Inuiqry please
Payment Terms :
Western Union, T/T
Supply Ability :
100000000PCS/MONTH
Delivery Time :
2 Weeks
Packaging Details :
Bulk,100 PCS/ Plastic Tray,500 PCS/ Box,5,000 PCS/ Carton
Name :
Gas Discharge Tube 8x10mm
Size :
8x10mm
Spark-over :
350V
Tolerance :
20%
Discharge Current :
20KA
Capacitance :
2pF
Description

2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA Surge Absorber SG83-350X

Description

Aolittel's pleased to announce the release of the Model 2046 and 2028 Series of 8 x 10 mm Gas Discharge Tube (GDT) products. The new GDTs are primarily targeted to telecom applications requiring ITU compliance but are suitable for use in many other applications. The GDTs are 3-electrode devices with a maximum 8/20 µs surge-current rating of up to 30 kA. Model 2028 and 2046 are offered as a core package for cassette or radial leaded for through-hole applications. An optional fail-short mechanism is available for thermal runaway protection.

Features

Long and stable service life
Low leakage
Low capacitance
High surge current rating
Optional fail-short mechanism available on some models

Product Attributes
Categories Circuit Protection
Gas Discharge Tube Arresters (GDT)
Manufacturer AOLITTEL
Series 2028
Packaging Tray
Part Status Active
Voltage - DC Spark Over (Nom) 350V
Impulse Discharge Current (8/20µs) 20000A (20kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Type User Defined
Package / Case Cylinder No Lead, 3 Terminal

Application

Telecommunications CPE and network equipment
Industrial electronics, power supplies
Data communications
Consumer electronics
Medical equipment

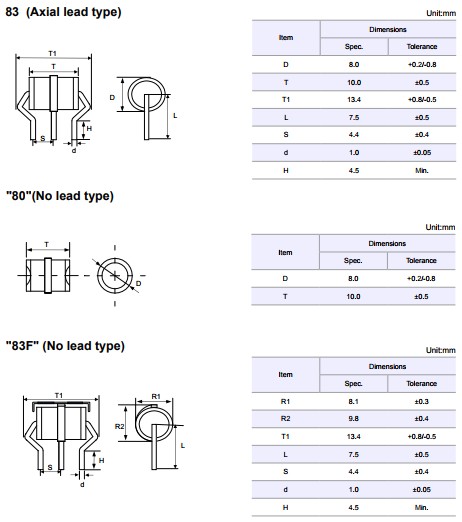

Dimension (mm)

2046 2048 3 Electrode Heavy Duty Radial Ceramic Gas Discharge Tube 8x10mm 350V 20KA

Electriacl Characteristics

Part Number

(83 Series)

Part Number

(80 Series)

Part Number

(83-F Series)

DC

Spark-over Voltage

V)

 1KV/μs (V) 8/20μs (10 times) (KA)

DC

Holdover Voltage

V)

 AC50Hz 1sec(A) Insulation Resistance (GΩ)

Capacitance 1MHz

PF)

Impulse Life

(10/1000μs)

@100A
SG83-75X SG80-75X SG83-75XF 75±20% 700 20 52 10 10 2 300
SG83-90X SG80-90X SG83-90XF 90±20% 700 20 52 10 10 2 300
SG83-150X SG80-150X SG83-150XF 150±20% 700 20 135 10 10 2 300
SG83-200X SG80-200X SG83-200XF 200±20% 700 20 135 10 10 2 300
SG83-230X SG80-230X SG83-230XF 230±20% 700 20 150 10 10 2 300
SG83-250X SG80-250X SG83-250XF 250±20% 700 20 150 10 10 2 300
SG83-350X SG80-350X SG83-350XF 350±20% 800 20 150 10 10 2 300
SG83-400X SG80-400X SG83-400XF 400±20% 900 20 150 10 10 2 300
SG83-470X SG80-470X SG83-470XF 470±20% 1000 20 150 10 10 2 300
SG83-600X SG80-600X SG83-600XF 600±20% 1100 20 150 10 10 2 300

Storage Conditions

1. Storage Temperature: -10°C~+40°C

2. Relative Humidity:≤75%RH

3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year

Packaging Bulk

100 PCS/ Plastic Tray 500 PCS/ Box 5,000 PCS/ Carton
