Micro-Gap Design 11.5mmx7.5mm Sized Gas Discharge Tube GDT SE72-600X 600V 20KA 3PIN For Cable Modem

GDT introduction

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).

Features

• RoHS & HF compliant

• Size:11.5mm*7.5mm

• DC Spark-over voltage: 75~800V

• Stable breakdown voltage.

• High insulation resistance.

• High holdover voltage.

• Large absorbing transient current capability.

• Low Capacitance

• Micro-Gap Design

• Small order accepttable

Application

• Cable Modem

• xDSL

• Set-Top Box

• Satellite and CATV equipment

• Power supplier

• Consumer electronics

• General telecom equipment

• SPD

Electriacl Characteristics

Dimension--"72" (Axial lead type)

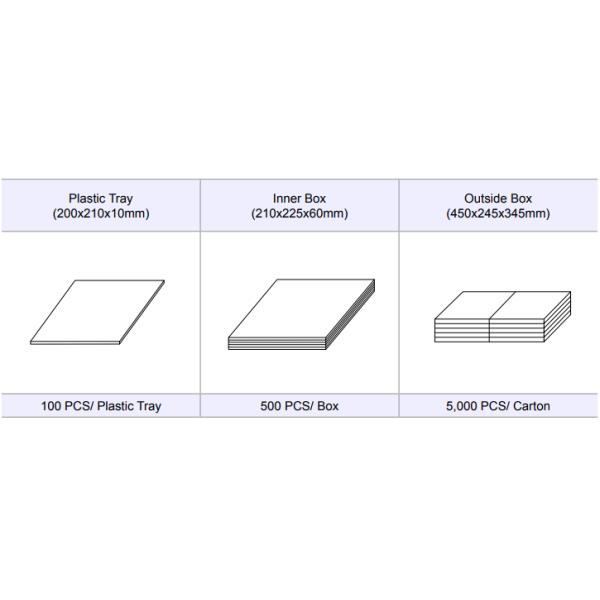

Packaging Bulk (mm)

Telcome Network Application

In Internet communication system, modem equipment, router, switch,hub,network card ,UPS,monitoring equipment, mobile communication,base station and antenna are more likely to be damaged by the over voltage. Shaoxin Electronics successfully apply the lighting protection and anti-static functions of electronic components to the Internet communication equipment and avoid the influence on communication quality.

Auto Electronics Application

As the smart car collision avoidance system, Intelligent cruise system, automatic parking system,autopilot and car network technology system are widely used in the modern car ,electronization and intellectualization is become the sign and trend . Shaoxin Electronic will provide the customer with the ceramic gas discharge tube, transient voltage suppressor and ESD suppressor, which are widely used to protect the car electronic systems.
