Specifications
Model Number :
SMD90X
Place of Origin :
Guangdong,China
MOQ :
10000Piece/Pieces
Price :
US $0.15 - 0.3 / Piece
Payment Terms :
T/T, Western Union
Supply Ability :
1000000 Piece/Pieces per Month
Delivery Time :
2 Weeks
Packaging Details :
Tape in reel
Type :
SMD Ceramic Gas Discharge Tube
Size :
4.5x3.2mm
DC Spark-over voltage :
90V
Impulse Spark-over Voltage :
700V Max.
Package :
Tape in reel
Max. Capacitance :
0.5pF
Description

High Holdover Voltage 4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics

Features

● Extremely small size

● Extremely fast response time
● Stable performance over life
● Very low capacitance
● High insulation resistance
● RoHS-compatible

4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics

Application

● Consumer electronics

● AC Power line devices

● Power supplier

Electriacl Characteristics

Part. Number DC Spark-over Voltage(V) 1KV/μs (V) Impulse Life Insulation Resistance (GΩ) Capacitance 1MHz(PF) Nominal Discharge Impulse Current(A)
SMD70XM 70(50～90) 600 300 1 0.5 2000
SMD75XM 75(55～95) 600 300 1 0.5 2000
SMD90XM 90(63～117) 700 300 1 0.5 2000
SMD120XM 120(84～156) 700 300 1 0.5 2000
SMD150XM 150(105～195) 750 300 1 0.5 2000
SMD200XM 200(140～260) 750 300 1 0.5 2000
SMD230XM 230(161～299) 750 300 1 0.5 2000
SMD300XM 300(210～390) 800 300 1 0.5 2000
SMD350XM 350(245～455) 900 300 1 0.5 2000
SMD400XM 400(280～520) 950 300 1 0.5 2000
SMD420XM 420(294～546) 950 300 1 0.5 2000
SMD470XM 470(329～611) 1000 300 1 0.5 2000
SMD500XM 500(350～650) 1100 300 1 0.5 2000
SMD600XM 600(420～780) 1200 300 1 0.5 2000

Description

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Ruilon offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA.The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication

lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).

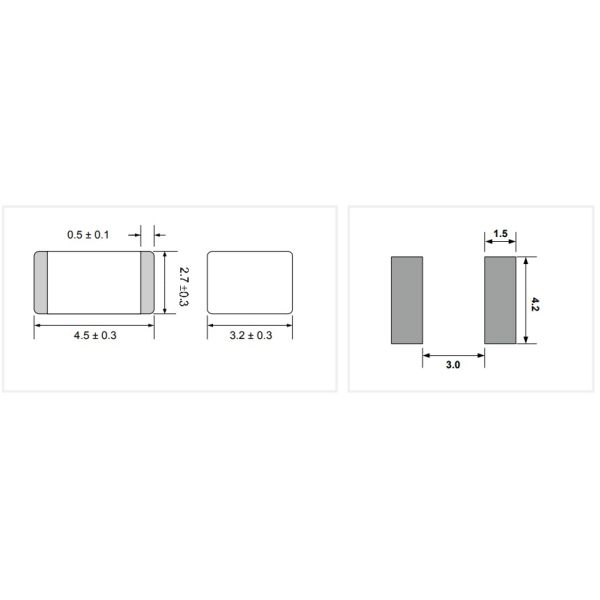

Product size (Unit:mm)

4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics

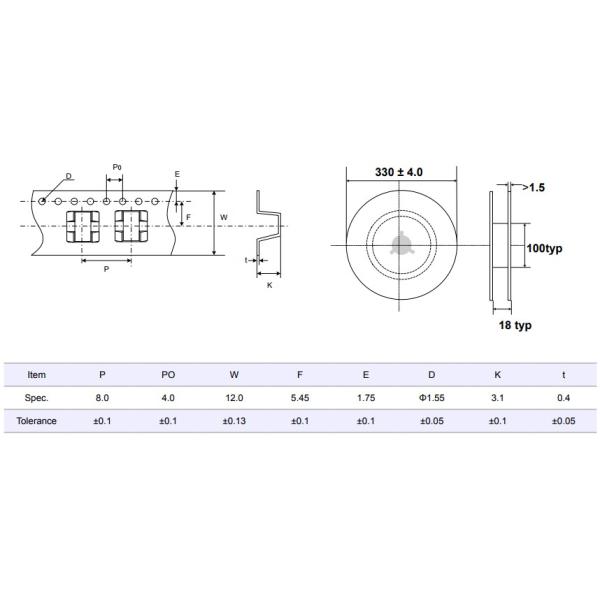

Packaging Taping

4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics

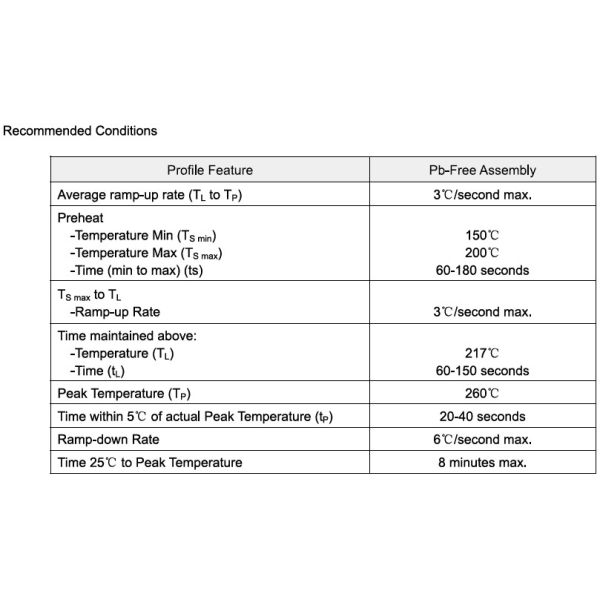

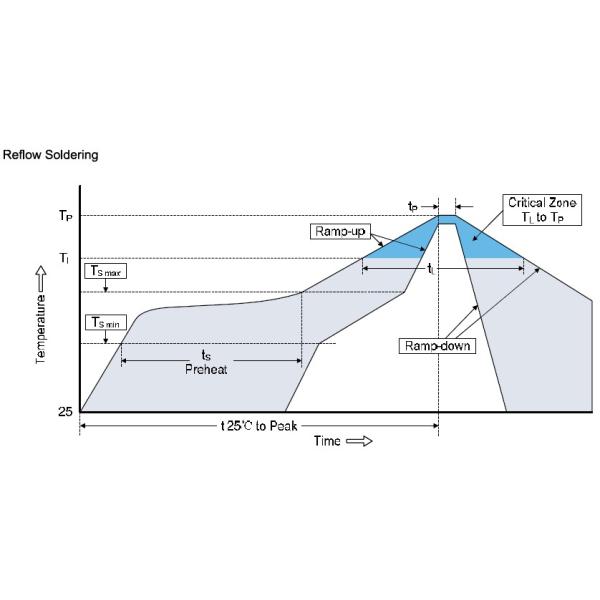

Recommended Soldering Conditions

4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics

4532 SMD Ceramic Gas Discharge Tube GDT 1812 4.5x3.2mm 90V SMD90XM For Consumer Electronics
