1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm
Specifications
Model Number :
SMB350XM
Place of Origin :
Made In China
MOQ :
1 Reel
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000,000Pieces Per Month
Delivery Time :
2 Weeks
Packaging Details :
Tape in Reel
Name :
Squared Ceramic Gas Discharge Tube
Size :
3.2x1.6x1.6mm
DC Spark-over Voltage :
350V
Tolerance :
±30%
1KV/μs :
<600V
8/20μs (10 time) :
0.5KA
AC Discharge Current :
0.5A
DC Holdover Voltage :
100V
Description

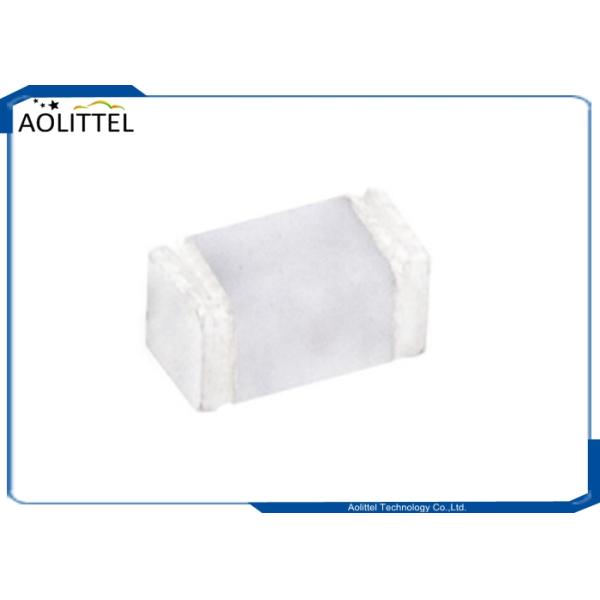

1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm Non-radioactive

Description

1)Are classical components for protecting installations of telecommunications
2)Essential that IT and telecommunications systems, with their high-grade but sensitive electronic circuits, be protected by arresters
3)1206 series GDT offers high surge ratings in miniature package
4)Designed for surface mounting on PCB with small size 3.2x1.6x1.6mm
5)Low insertion loss is perfectly suitable to broadband equipment applications
6)Capacitance don't vary with voltage and will not cause operational problems with ADSL2+, where capacitance variation across tip and ring is undesirable
7)These devices are extremely robust and are able to divert 500A pulse in miniature package 1206 without destruction

Features


1,Non-Radioactive
2,RoHS compliant
3,Ultra low capacitance(＜0.5pF)
4,UL recognized
5,Excellent response to fast rising transients
6,0.5KA surge capability testedd with 8/20μs pulse as defined by IEC 61000-4-5
7,Square Outline.

1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm

Application

1,Communication equipment
2,CATV equipment
3,Test equipment
4,Data lines
5,Power supplies
6,Telecom SLIC protection
7,Broadband equipment
8,ADSL equipment,including ADSL2+
9,XDSL equipment
10,Satellite and CATV equipment
11,General telecom equipment
12,ESD protection

Product size (Unit:mm)

1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm

Electrical Characteristics

Part.Number DC Spark-over Voltage(V) 1KV/μs (V) 8/20μs (10 time) (KA) DC Holdover Voltage(V) Insulation Resistance (GΩ) Capacitance 1MHz(PF) AC Discharge Current(1s 5times)
SMB70XM 70±30% <600 0.5 25 0.1 0.5 0.5
SMB75XM 75±30% <600 0.5 25 0.1 0.5 0.5
SMB90XM 90±30% <600 0.5 50 0.1 0.5 0.5
SMB150XM 150±30% <700 0.5 50 0.1 0.5 0.5
SMB200XM 200±30% <750 0.5 100 0.1 0.5 0.5
SMB230XM 230±30% <750 0.5 100 0.1 0.5 0.5
SMB300XM 300±30% <800 0.5 100 0.1 0.5 0.5
SMB350XM 350±30% <850 0.5 100 0.1 0.5 0.5
SMB400XM 400±30% <950 0.5 100 0.1 0.5 0.5
SMB420XM 420±30% <950 0.5 100 0.1 0.5 0.5
SMB470XM 470±30% <1050 0.5 100 0.1 0.5 0.5

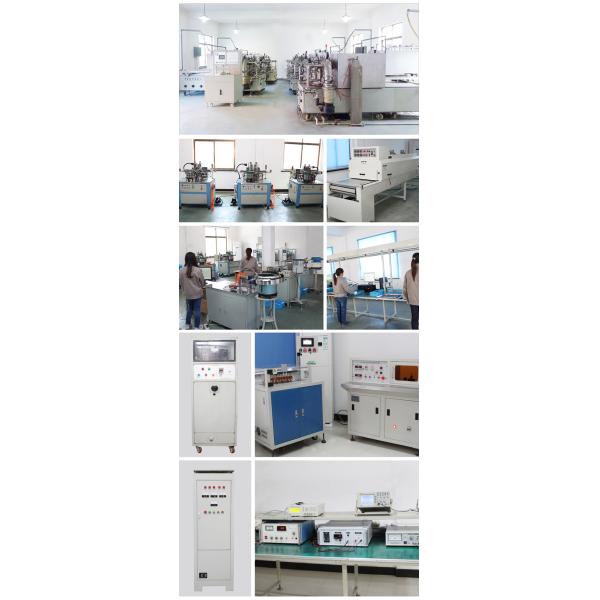

Production Equipments

1206 Surface Mount 2-Electrode Squared Ceramic Gas Discharge Tube GDT 3216 350V 500A 3.2x1.6x1.6mm

Electrical Ratings

Item Test Condition/Description
DC Spark-over Voltage The voltage is measured with voltage ramp dv/dt=100V/s.
Maximum Impulse Spark-over Voltage The maximum impulse spark-over voltage is measured with voltage ramp dv/dt=1000V/μs.
Insulation Resistance The resistance of gas tube shall be measured between two electrodes.
Capacitance The capacitance of gas tube shall be measured between two electrodes. Test frequency: 1MHz
Impulse Discharge Current Maximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval time, without causing the DC spark-over voltage to change more than 30% from its initial value.
Impulse Withstanding Voltage The maximum 10/700μs surge that can be applied to the Gas Tube, 5 positive and 5 negative surges, with 1 minute interval time, without causing the DC spark-over voltage to change more than 25% from its initial value.
