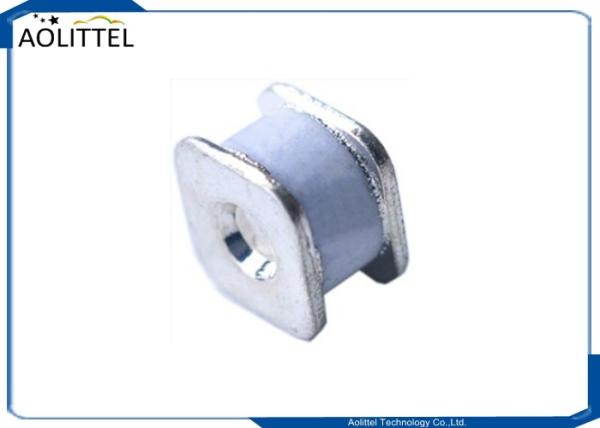

SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics
Specifications
Model Number :
SX4-150X
Certification :
UL,cUL
MOQ :
900PCS
Price :
Negotiable
Payment Terms :
T/T,Paypal
Supply Ability :
900000000PCS/Month
Delivery Time :
2 Weeks
Packaging Details :
900pcs per reel (13”)
Name :
2-Electrode Gas Discharge Tube
Size :
3.5x4.4x4.4mm
Structure :
SMD
Spark-over voltage :
150V
Operate Temp :
-30°C ~ +85°C
Store Temp :
-40°C ~ +115°C
Discharge Current :
5KA
Impulse Life :
300 Times
Description

SMD 2-Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics

Features

1. RoHS & HF compliant

2. SMD type series

3. DC spark-over voltage: 75~1000V

4. Low capacitance

5. Agency recognition: UL / cUL

6. Operating temperature: -40℃ ~ +85℃ Storage temperature: -40℃ ~ +115℃

Size in mm

SMD 2- Electrode Gas Discharge Tube 3.5x4.4x4.4mm 150V 5KA 0.5pF UL cUL For Consumer Electronics

Recommended Applications

1. Cable modem

2. xDSL

3. Set-top box

4. TV sets

5. Power supply

6. Consumer electronics

Ordering Information

Part Number

DC Spark-over voltage

(V)

1kV/s

(V)

AC

50Hz 1sec

 8/20μs (1 time)(KA) DC Holdover Voltage(V) Minimum Insulation Resistance(GΩ) Maximum capacitance @1MHz(PF) Impulse life (10/1000μs)@300A
SX4-75X 75±20% 800 3 5 52 1 0.5 300
SX4-90X 90±20% 800 3 5 52 1 0.5 300
SX4-150X 150±20% 800 3 5 80 1 0.5 300
SX4-230X 230±20% 700 3 5 150 1 0.5 300
SX4-250X 250±20% 700 3 5 150 1 0.5 300
SX4-300X 300±20% 700 3 5 150 1 0.5 300
SX4-350X 350±20% 800 3 5 150 1 0.5 300
SX4-400X 400±20% 800 3 5 150 1 0.5 300
SX4-470X 470±20% 900 3 5 150 1 0.5 300
SX4-600X 600±20% 1000 3 5 150 1 0.5 300
SX4-800X 800±20% 1400 2 3 150 1 0.5 100
SX4-102X 1000±20% 1600 2 3 150 1 0.5 100
SX4-122X 1200±20% 1800 2 3 150 1 0.5 100
SX4-142X 1400±20% 1800 2 3 150 1 0.5 100
SX4-152X 1500±20% 2100 2 3 150 1 0.5 100
SX4-162X 1600±20% 2100 2 3 150 1 0.5 100
SX4-182X 1800±20% 2600 2 3 150 1 0.5 100
SX4-202X 1800±20% 2600 2 3 150 1 0.5 100

DC Spark-over Voltage DC Measuring Voltage
70-90V 50V
120-400V 100V
470-800V 250V
1000V 500V

Packaging Taping

Quantity: 900pcs per reel (13”)

Warehouse Storage Conditions of Products

Storage Conditions:

1. Storage Temperature: -10°C~+40°C

2. Relative Humidity:≤75%RH

3. Keep away from corrosive atmosphere and sunlight.

· Period of Storage: 1 year
