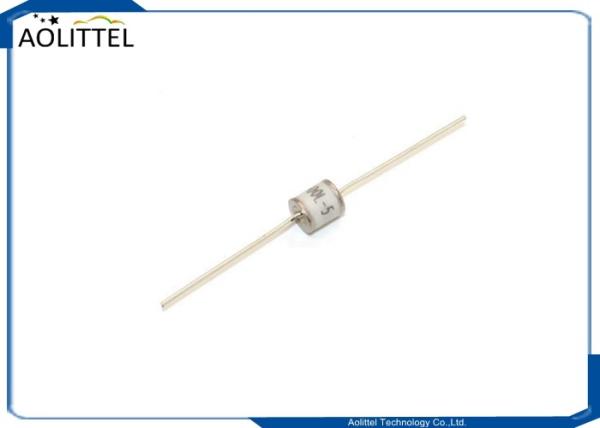

5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V
Specifications
Brand Name :
AOLITTEL
Model Number :
SGH8
MOQ :
Small order accepttable
Price :
TBA
Payment Terms :
Paypal, T/T
Supply Ability :
500000000PCS/Month
Delivery Time :
2 Weeks
Packaging Details :
Bulk
Article name :
Gas Plasma Arrestors 1000V
Peak Pulse Current :
5KA
BreakDown Voltage :
800~1200VDC
Electrodes :
2 Electrode
Termination Style :
Axial
Size :
8x8mm
Technology :
Gas Discharge Tube
TARIC :
8536301090
Mounting Type :
Through Hole
CNHTS :
8535400000
HTS Code :
8536308000
Type :
2 Pole Gas Discharge Tube
Description

5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V

Features

Provide ultra-fast response to surge voltage from slow-rising surge of 100V/s to rapid-rising surge of 10KV/µs.
Stable breakdown voltage.
High insulation resistance.
Low capacitance (<2pF).
High holdover voltage.
Large absorbing transient current capability.

Specification

Part Number(No.) DC BreakDown Voltage(V) 1KV/μs (V)

8/20μs

(10 time) (KA)

 AC50Hz 1sec(A) Insulation Resistance (GΩ) Capacitance 1MHz(PF)

Impulse Life(10/1000μs)

@100A
SGH81-600X 510～690 1100 5 10 10 1.5 500
SGH81-800X 680～920 1200 5 10 10 1.5 500
SGH81-102X 800～1200 1400 5 10 10 1.5 300
SGH81-142X 1120～1680 2200 5 2.5 10 1.5 10
SGH81-162X 1280～1920 2400 5 2.5 10 1.5 10
SGH81-202X 1600～2400 2800 5 2.5 10 1.5 10
SGH81-252X 2000～3000 3600 5 2.5 10 1.5 10
SGH81-272X 2160～3240 3800 5 2.5 10 1.5 300
SGH81-302X 2400～3600 4200 5 2.5 10 1.5 10

Recommended Application

Repeaters, Modems.
Telephone Interface, Line cards.
Data communication equipment.
Line test equipment.

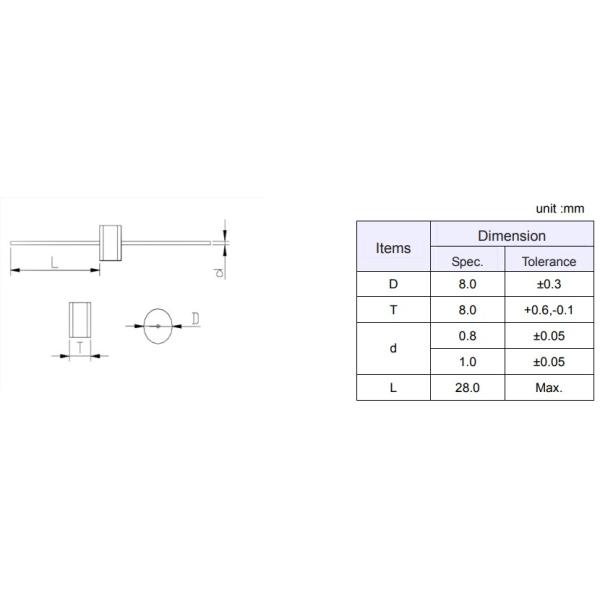

DIMENSIONS

5KA 2 Pole Gas Discharge Tubes 8x8mm 2 Electrode Axial Gas Plasma Arrestors 1000V

Description

Aolittel highly reliable SGH8 Series GDTs provide a high degree of surge protection in a small size ideal for board level circuit protection. GDTs function as switches which dissipate a minimum amount of energy and therefore handle currents that far surpass other types of transient voltage protection. Their gas-filled, rugged ceramic metal construction make them well suited to adverse environments. The SGH8 series comes in a variety of forms including surface mount, core, straight and shaped leads, to serve a variety of mounting methods. The SGH8 Series (75V-110V) is ideal for protection of test and communication equipment and other devices in which low voltage limits and extremely low arc voltages are required. The SGH8 Series (145V-1000V) is ideal for protecting equipment where higher voltage limits and holdover voltages are necessary.

Agency Approvals

* Non-Radioactive
* RoHS Compliant
* Fast breakdown-time
* Very high switch speed when switch voltage achieved, High di/dt allows for optimum performance of ignition transformers.
* Long service life

Cautions and warnings

* Switching spark gaps may be used only within their specified values.
* Damaged switching spark gaps must not be re-used.
