Disc NTC Thermistor 2.5D-15 2.5 Ohm 15mm 7A Negative Temperature Coefficient Pitch 7.5mm

Production Introduction

The MF72 power NTC thermistor is a kind of semiconductor ceramic element that mostly made from transition metal oxide material, and belongs to negative temperature thermistors. When you tune on an electrical equipment ,the surge current can be restrained by a power NTC thermistor connected in series with the power circuit .Because of the continuing action of current, temperature of power NTC thermistor raising, the resistance will rapidly drop to a small value, the consumed power can be ignored. So it can not affect normal operating current. Therefore, using power NTC thermistor is a most effectively amd most brief measure to restrain surge current, protecting electrical equipment from destruction.

APPLICATION

Convension power supply , switch power , kinds of electric heater , electronic energy-saving lamps , electronic ballast etc . All kinds of power circuit protection of electronic equipments , filament protection of all kinds of RT , display , bulb and other lighting lamps .

Electrical Parameters

Characteristics

1. Small size , Strong power and strong capability of surge current protection.
2. Fast response to surge current.
3. Big material constant(B value), Small remain resistance.
4. Longevity of service, High reliability.
5. Integral series , Extensive operating range

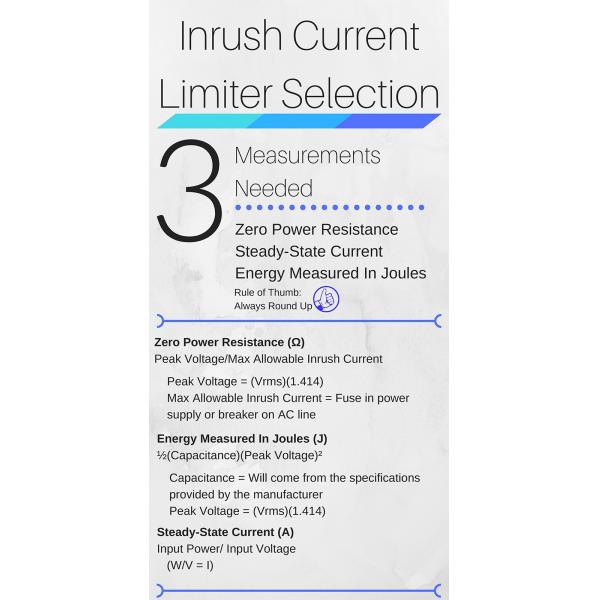

How To Select an Inrush Current Limiter(NTC Thermistor)

Choosing the correct inrush current limiter for your inrush current limiting needs can be vital for any project. Aolittel’s NTC inrush current limiters are designed to protect your components from damaging levels of inrush current at startup.
Below you will find information about measurements you will need to select the right inrush current limiter for your projects, calculators to help determine these values, and information about our NTC inrush current limiter lines and other useful content.
