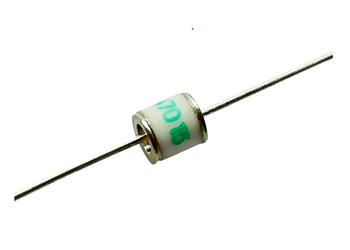

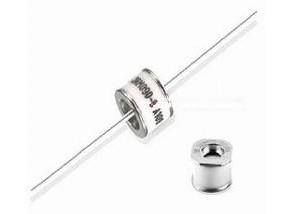

2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box
Specifications
Model Number :
S51-230X
Place of Origin :
Guangdong,China,Asia
MOQ :
500PCS
Price :
Contact our sales
Payment Terms :
T/T, Western Union
Delivery Time :
2 Weeks
Packaging Details :
Taping,100 PCS/ Plastic Tray,500 PCS/ Box,5,000 PCS/ Carton
Name :
Gas Discharge Tube
Size :
5x5mm
DC Voltage :
230 ±20%
1KV/μs :
700V
8/20μs (1 time) :
10KA
Holdover Voltage :
10V
AC50Hz 1sec :
80A
Capacitance 1MHz :
1PF
Description

2 Electrode SurgeArresters Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box

GDT Introduction

Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Surging offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD).

Features

1. RoHS & HF compliant

2. SMD Structure

3. DC Spark-over voltage: 70~800V

4. Low Capacitance

5. Agency Recognition : UL

6. Operating temperature:-30°C ~ +85°C Storage temperature:-40°C ~ +115°C

Recommended Applications

1. Cable Modem

2. xDSL

3. Set-Top Box

4. TV sets

5. Power supplier

6. Consumer electronics

Part Number Code

S5 0 - 230X SMDT

S5: S5 Series ф5*5mm

0: Lead shape 0=SMD 1=Thrust

230X: DC Line Voltage: 90X=90V 230X=230V 102X=1000V

SMDT : Package SMD=Cylinder No Lead SMDT=2-SMD Cylinder Square End

Electriacl Characteristics

Part Number (DIP) Part Number (SMD) DC Spark-over Voltage(V) 1KV/μs (V) 8/20μs (1 time) (KA) DC Holdover Voltage(V) AC50Hz 1sec(A) Insulation Resistance (GΩ) Capacitance 1MHz(PF) Impulse Life(10/1000μs)@100A
S51-70X S50-70X 70±20% 800 10 10 52 10 1 300
S51-75X S50-75X 75±20% 800 10 10 52 1 1 300
S51-90X S50-90X 90±20% 700 10 10 52 1 1 300
S51-150X S50-150X 150±20% 700 10 10 52 1 1 300
S51-230X S50-230X 230±20% 700 10 10 80 1 1 300
S51-250X S50-250X 250±20% 700 10 10 80 1 1 300
S51-300X S50-300X 300±20% 900 10 10 150 1 1 300
S51-350X S50-350X 350±20% 900 10 10 150 1 1 300
S51-400X S50-400X 400±20% 1000 10 10 150 1 1 300
S51-470X S50-470X 470±20% 1100 10 10 150 1 1 300
S51-600X S50-600X 600±20% 1500 10 10 150 1 1 300
S51-800X S50-800X 800±20% 1700 10 10 150 1 1 300

DC Spark-over Voltage DC Measuring Voltage
70-90V 50V
150-400V 100V
470-800V 250V

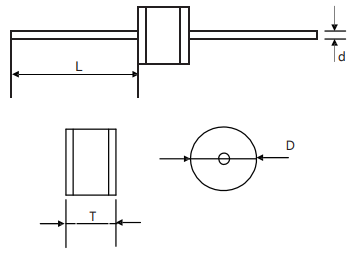

Dimension (Unit:mm)

(Axial lead type) S51

2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box

D 5 +0.3/-0.5
T 5 +0.3/-0.5
L 20 Min.
d 0.8±0.05

S50 (No lead type)

2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box

D 5 +0.3/-0.5
T 5 +0.3/-0.5

Packaging Taping

Plastic Tray (265×147×10mm) Inner Box (270×145×50mm) Outside Box (310×280×275mm)
100 PCS/ Plastic Tray 500 PCS/ Box 5,000 PCS/ Carton

For 2-electrode Axial Lead GDT: 500 PCS/Reel

2 Electrode Gas Discharge Tubes 230 ±20% 5x5mm S51-230X Dip Thrust UL Cert For Set-Top Box

Warehouse Storage Conditions of Products

1. Storage Temperature: -10°C~+40°C

2. Relative Humidity:≤75%RH

3. Keep away from corrosive atmosphere and sunlight.

4.Period of Storage: 1 year
