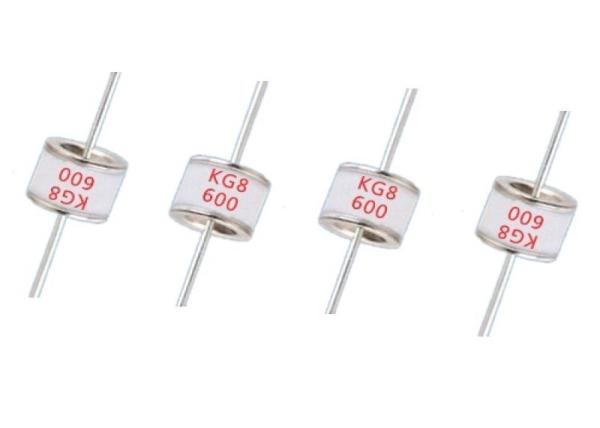

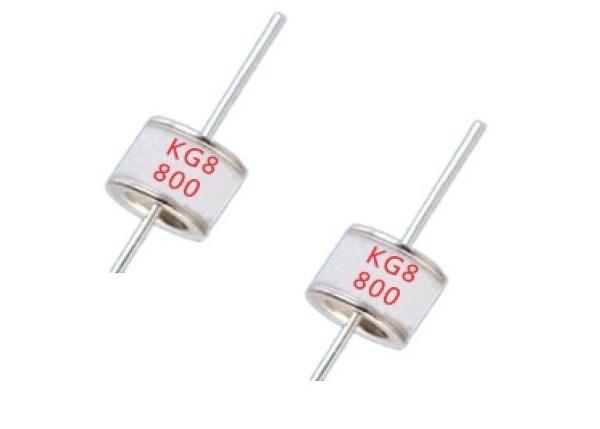

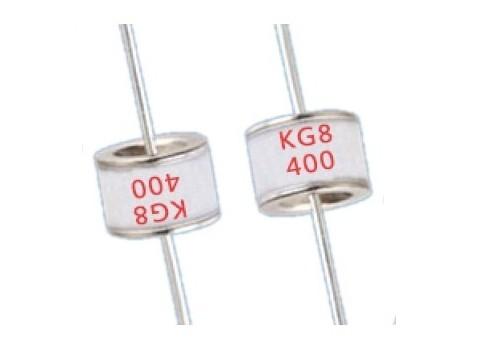

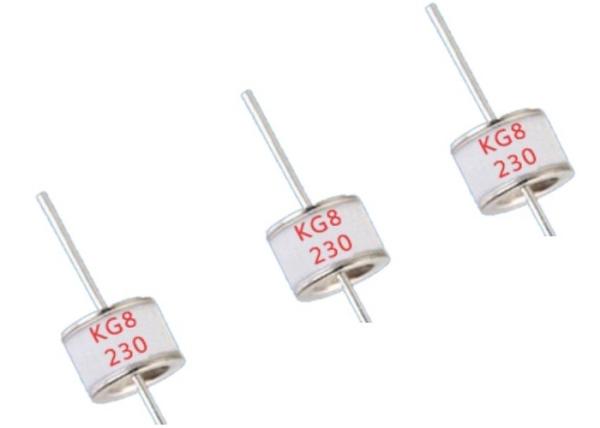

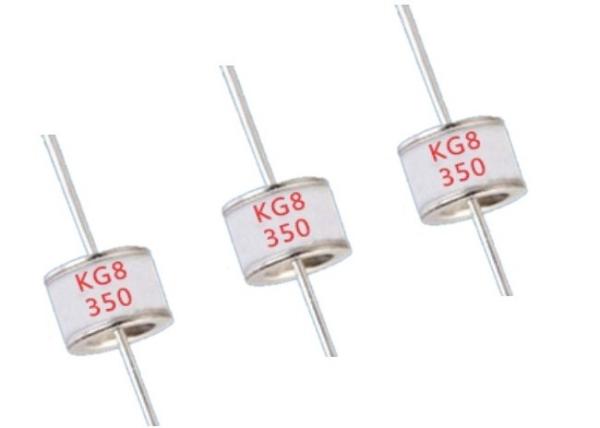

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
Specifications
Model Number :
KG8 Series
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5KKPCS/Month
Delivery Time :
2 Weeks
Packaging Details :
Bulk
Name :
Switching Spark Gaps SSG
Termination Style :
Axial
Body Diameter :
8mm
Body Length :
6mm
Technology :
Gas Discharge Tubes
Other name :
GDTs Gas Plasma Arrestors
Spark-over Voltage :
110V-800V
Mounting Style :
Through Hole
Description

KG8 Series GDT Leaded 8x6mm 2 Electrode Switching Spark Gaps SSG 110V-800V Surge Arrestors Ignition Of HID Lamps

Features

Extremely long life time

Stable performance over life

Insensitive performance against variations in temperature

Extremely low switching losses

Very short breakdown time

High reliability by robust design

RoHS compatible

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps

Dimensional drawing (Dimensions in mm )

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps

Application

Ignition of HID lamps

Electrical Performances

KG8 110L 110±(20%) 1000000 ～300 70 ≥1 <1.3 ≤50
KG8 150L 150±(15%) 1000000 ～300 30 ≥1 <1.3 ≤50
KG8 230L 230±(15%) 1000000 ～300 20 ≥1 <1.3 ≤50
KG8 300L 300±(12%) 400000 ～500 130 ≥1 <1.3 ≤50
KG8 350L- 320±(12%) 400000 ～500 150 ≥1 <1.3 ≤50
KG8 350L 350±(10%) 400000 ～500 150 ≥1 <1.3 ≤50
KG8 350L+ 370±(10%) 400000 ～500 140 ≥1 <1.3 ≤50
KG8 400L 400±(10%) 400000 ～500 130 ≥1 <1.3 ≤50
KG8 450L 450±(10%) 300000 ～500 120 ≥1 <1.3 ≤50
KG8 500L 500±(10%) 300000 ～400 170 ≥1 <1.3 ≤50
KG8 600L- 560±(10%) 300000 ～400 140 ≥1 <1.3 ≤50
KG8 600L 600±(10%) 300000 ～400 210 ≥1 <1.3 ≤50
KG8 800L- 730±(10%) 300000 ～400 130 ≥1 <1.3 ≤50
KG8 800L 800±(10%) 300000 ～400 120 ≥1 <1.3 ≤50

Description

Switching Spark Gaps (SSG) are active components that work reliably even after igniting thousands of times. Switching Spark Gaps utilize the advantages of arc discharge principle: The enormous speed at which the arc is formed (<50 ns) as well as the high current capability allow the generation of short pulses of 10µs pulses with extremely high current or voltage rise times and low power loss. They can be used in all applications where high voltage pulses must be generated such as for the ignition of HID xenon lamps in automotive headlights.

Cautions and warnings

Switching spark gaps may be used only within their specified values.

Damaged switching spark gaps must not be re-used.

Figures

Fig. 1: QC- test circuit (100% outgoing inspection)

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps

DUT device under test

ICU ignition control unit (sensitivity 10...30 uA)

Discharge current 10...20 mA

Fig. 2: Explanation of measurands

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps

dVS/dt ~ dVN/dt

Fig. 3: QC- test circuit (sampling inspection at 25

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps

KB PD AB E / KB PD AB PM

Fig. 4: Explanation of measurands

KG8 Series GDT 8x6mm 2 Electrode Switching Spark Gaps 110V-800V Surge Arrestors Ignition Of HID Lamps
