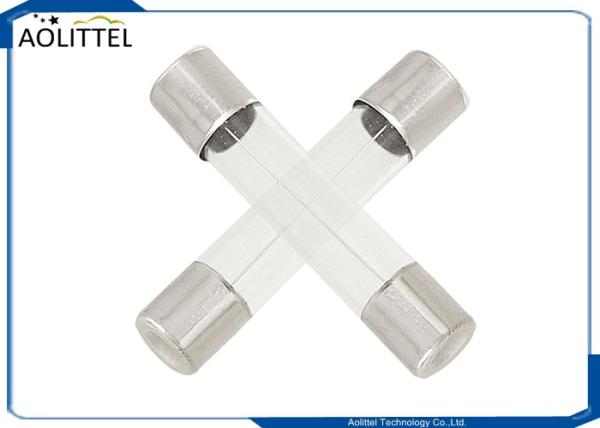

3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A
Specifications
Brand Name :
AOLITTEL
Model Number :
6.250MFC1500A
Certification :
UL,cUL
Place of Origin :
Dongguan,Guangdong,China
MOQ :
1000 Pieces
Price :
0.025~0.04 USD/Pieces
Payment Terms :
T/T
Supply Ability :
6000,000 Pieces Per Quarter
Delivery Time :
7 Workdays
Packaging Details :
Bulk,200pcs/bag,20000pcs/box,40000pcs/carton
Name :
Glass Tube Fuse
Size :
6.35x32mm
Type :
Fast Blow
Rated Current :
5A
Voltage :
250VAC
Agency :
UL,cUL
Description

UL cUL Listed 3AB 3AG 6.3x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A

Description

The 6.250MFC Fast-Acting Fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.

Features


In accordance with UL Standard 248-14

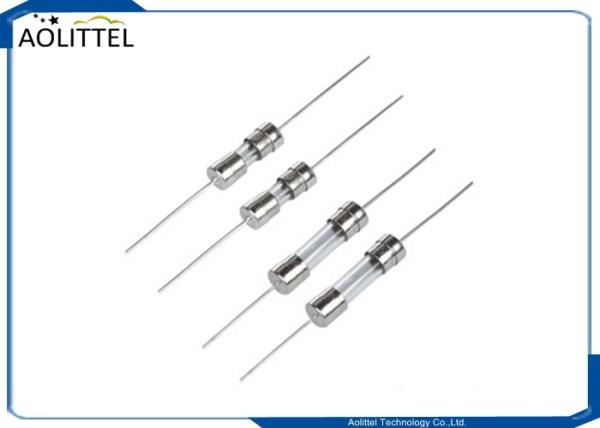

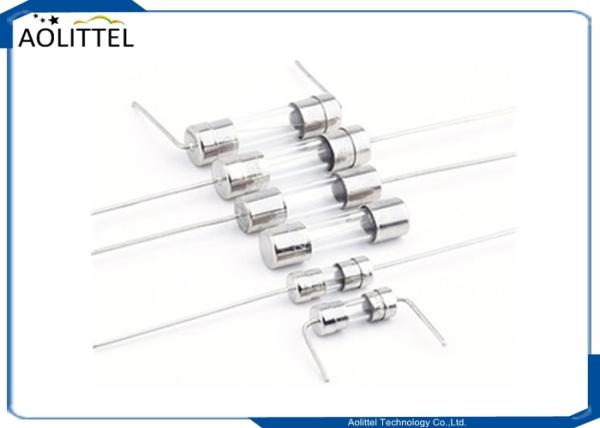

Available in cartridge and axial lead format and with various forming dimensions
RoHS compliant and Lead-free

Certifications

Voltage Rating Agency Ampere Range Agency File Number
125V/250V UL 100mA ~ 30A E340427
C-UL 100mA ~ 30A E340427

Specification

A Means 250V ; B means 125V .

Catalog Ampere Voltage Breaking I2TMelting
No. Rating Rating Capacity Integral (A2.S)
6.250MFC0100A/B 100mA 250V/125V

10000A@125 V AC (100mA~10A);

35A@250V AC (100mA~1A);

100A@250V AC (1.25A~3.5A);

200A@250V AC (4A~10A).

 0.003
6.250MFC0160A/B 160mA 250V/125V 0.008
6.250MFC0200A/B 200mA 250V/125V 0.02
6.250MFC0250A/B 250mA 250V/125V 0.026
6.250MFC0300A/B 300mA 250V/125V 0.047
6.250MFC0315A/B 315mA 250V/125V 0.055
6.250MFC0350A/B 350mA 250V/125V 0.072
6.250MFC0400A/B 400mA 250V/125V 0.1
6.250MFC0500A/B 500mA 250V/125V 0.16
6.250MFC0600A/B 600mA 250V/125V 0.25
6.250MFC0630A/B 630mA 250V/125V 0.28
6.250MFC0750A/B 750mA 250V/125V 0.49
6.250MFC0800A/B 800mA 250V/125V 0.6
6.250MFC1100A/B 1A 250V/125V 0.8
6.250MFC1125A/B 1.25A 250V/125V 1.6
6.250MFC1150A/B 1.5A 250V/125V 2.5
6.250MFC1160A/B 1.6A 250V/125V 3.2
6.250MFC1200A/B 2A 250V/125V 5.6
6.250MFC1250A/B 2.5A 250V/125V 7.6
6.250MFC1300A/B 3A 250V/125V 14
6.250MFC1315A/B 3.15A 250V/125V 19
6.250MFC1350A/B 3.5A 250V/125V 20
6.250MFC1400A/B 4A 250V/125V 25
6.250MFC1500A/B 5A 250V/125V 42
6.250MFC1600A/B 6A 250V/125V 80
6.250MFC1630A/B 6.3A 250V/125V 96
6.250MFC1800A/B 8A 250V/125V 200
6.250MFC2100A/B 10A 250V/125V 320
6.250MFC2120A/B 12A 250V/125V 470
6.250MFC2150A/B 15A 250V/125V 650
6.250MFC2200A/B 20A 250V/125V 870
6.250MFC2250A/B 25A 250V/125V 1320
6.250MFC2300A/B 30A 250V/125V 1820

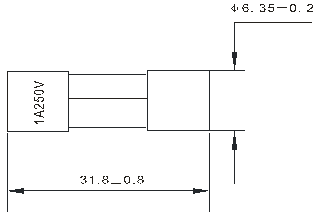

Dimension and Material

Unit:mm

3AB 3AG 6.35x32mm Fast Acting Cartridge Fuses 5A AC 250V 125V Glass Tube Fuse 6.250MFC1500A

NO. Part Name Material
1 Cap Nickel Plated Brass
2 Body Glass Tube
3 Fuse element Alloy

Operating Characteristics

% of Ampere Rating(In) Blowing Time
100%* In 4 hours Min
135%* In 1 hour Max
200%* In 60 sec Max

Interrupting Rating

Breaking Capacity:

10000A at125 V AC (6.250MFC In range 100mA~10A);

35A at 250V AC (6.250MFC In range 100mA~1A);

100A at 250V AC (6.250MFC In range 1.25A~3.5A);

200A at 250V AC (6.250MFC In range 4A~10A).

Recommended Soldering Parameters

A Wave Parameters:

Solder Pot Temperature: 260℃ Max

Solder Dwell Time: 2~5s

B Hand-Solder Parameters:

Solder Iron Temperature: 350±5℃

Heating Time: 5s Max

Packing Quantity

Bulk 200 pcs in per poly bag;10 poly bags in per inner box;4 inner boxes in per outer carton

Box: L240±2 * W170±2 * H110±2mm

Outer carton : L390±5 * W240±5 * H250±5mm
