Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting
Specifications
Brand Name :
Ao littel
Place of Origin :
China
MOQ :
500 Set
Price :
USD 15 to 30 Per Piece
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Set Per Month
Delivery Time :
2~4 Weeks
Packaging Details :
Bulk, standard export package
Item :
AC Light Linear Driver ODM Solutions
Life Time :
≥50000 Hours
Model Number :
ALT-T2A010-1
Input voltage :
AC220V-240V
Input current (single IC) :
HF3028---90mA CJ3030F-100m
Operating Temperature :
-60℃～85℃
Storage Temperature :
-40℃～100℃
Frequency range :
50HZ-60HZ
THD :
≤20%
Power factor(PF) :
>0.98
System consumption(AC230V) :
50W±5%
LED luminous efficiency (AC230V) :
≥100LM/W
LED luminous flux (AC230V) :
≥5000M
Colour Tempearture :
6000K±300K
Ra :
>80
Surge Voltage :
4000V
Power Cord :
L(LIVE) N(NULL)
PCB Size :
80*40mm
Customized :
Available
Services :
ODM/OEM
Description

Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting

Overview

Ao littel , one of leading circuit protective components manufacturer in Dongguan , products exported to more than 100 countries with high quality and competitive price. According to our serve experiences, we have enough power to produce linear LED light driver , hence, beginning to provide Linear LED Driver ODM solutions from now on. We have great advantages that we can use high quality components produced by us, by this ,quality assuranced and cost down to support customer to win market.

Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting

Quality is our culture, components like led chips, alu thickness, thermal conductivity etc all with top quality ones. Noted that except for our standard item, we also support clients with custom service, like dimension, volts, temperature, lumens etc.

______________________________________________________________________________Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting Download________

Extened file : Ao littel LED Lighting Driver ODM Solutions.PDF

______________________________________________________________________________Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting Download________

Advantages

Customized availble

Excellent stability and long life

High PF value >0.98, Low THD<20%

Fully SMT project , small size

No emission of harmful short wavelength

Ideal for LED spot lighting& floor lighting

Comply with CE, ROHS etc available if assembed to be end product

High efficiency>90%

Over temperature protection(120°)

Most of components used were produced by us

High voltage linear constant current LED driver, AC input directly design without AC-DC transformer , LED light design become more flexible and convenient

No need e-cap required , very stable, life time is very long as LED beads.

With high power , energy saving function performed well in actual application,it can be used for LED spot lighting, floor lighting.

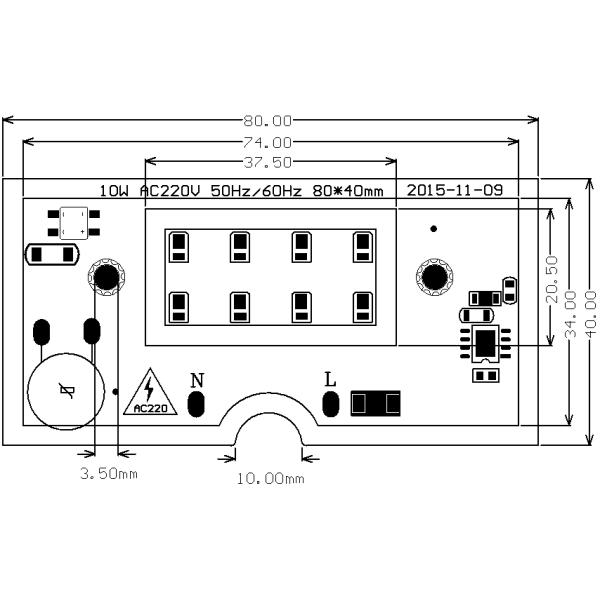

Dimension

Unit:mm

Universal High Voltage High Brightness IC AC LED Light Linear Driver ODM Solutions For Floor Lighting

Components List

COMPONENTS LIST

Part

Specification

 Quantity

Reference
Resister Aolittel R0805 R ±1% 4 R1
Resister Aolittel R1206 4 R8-R11
Fuse Aolittel-SET1500(5A/250V) 1 F1
Safety capacitor C1808 1 C1
capacitor C1206 1 R2
LED HL 2835 36V 6000K 8 D1-D8
Bridge diode MB10F 1 BD1
MOV Aolittel 10D431K 275Vac 1 VR1
IC CJ3030F 1 U1
PCB(mm) L=80 W=40 T=1.6 1layer/Cu 1oz/White PSR -

Maximum Ratings

Ambient temperature is 25°c if there are no special instructions

Parameters Symbol Max value
Input voltage V 260V
Input current (single IC) I HF3028---90mA
CJ3030F-100mA
Work temperature TOPT -60℃～85℃
Storage temperature TSTG -4
without thermal pads--2KV
with thermal pads--10KV

Main Electro-0ptical Characteristics(T=25℃)

Input voltage AC220V-240V
Input current (AC230V) mA
Frequency range 50HZ-60HZ
THD ≤20%
Power factor(PF) ＞0.98
System consumption(AC230V) 50W±5%

LED luminous efficiency

(AC230V)

 ≥100LM/W

LED luminous flux

(AC230V)

 ≥5000LM
CCT 6000K±300K
Ra >80

Max. Surge Voltage

 4000V

Life Time

 ≥50,000H
Power Cord L(LIVE) N(NULL)
(G.W.) g±2g
PCB(mm) 80*40mm

Notes

*The above parameters based on the current test conditions we have, after be applied with a suitable radiator, we suggest that the peak temperature of the module can’t exceed 75℃

1.The above parameters are the stable value after 5 minutes tested with a simulate radiator, different radiator will have a small difference.

2 Φv is the total luminous flux output measured with an integrated sphere.

3. Operating Voltage can’t exceed the maximum voltage in long time which customers used.
