Specifications
Brand Name :
AUPO
Model Number :
BF133-I
Certification :
UL,CUL,PSE,ROHS,CCC
Place of Origin :
FUJIAN,CHINA
MOQ :
1000 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100KKPCS Per Month
Delivery Time :
1-2 Weeks
Packaging Details :
Bulk,100pcs per bag,1000pcs per box.
Fuse Type :
Thermal Cutoff Fuse
Body Size :
4x11mm
Functioning temp. :
133C
Fusing-off temp :
131+2/-3℃
Holding temp :
119℃
Max temp. limit :
215℃
Rated current :
10A/15A/16A
Rated voltage :
250VAC
Description


UL CUL PSE Aupo Thermal Cutoff Fuse TF 133C 250V 10A 15A 16 Amp BF133-I Temperature Fuse Links With Metal Casing


General

The AUPO thermal cutoff is an unresettable thermal protect instrument. It is used in household appliances and industry instrument for thermal protecting. When an ambient temperature of the thermal cutoff rises to an abnormal temperature, the thermal cutoffs tastes the ambient temperature and open the circuit. Its all-sealed structure insures the stability and reliability, and it is not influenced by ambient humidity and so on. Its main features are: extremely sensitive to ambient temperature; precise and stable functioning temperature; compact, epoxy-sealed structure; reliable, approved by various international safety standards.

UL CUL PSE Aupo Thermal Cutoff Fuse TF 133C 250V 10A 15A 16 Amp BF133-I Temperature Fuse Links With Metal Casing


Appearance and dimension(mm)


UL CUL PSE Aupo Thermal Cutoff Fuse TF 133C 250V 10A 15A 16 Amp BF133-I Temperature Fuse Links With Metal Casing

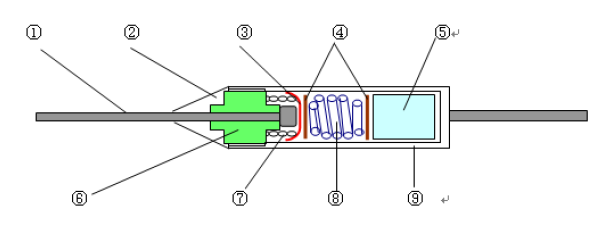

Structural instruction
UL CUL PSE Aupo Thermal Cutoff Fuse TF 133C 250V 10A 15A 16 Amp BF133-I Temperature Fuse Links With Metal Casing
1) Lead wire
2) Epoxy
3) Star contact
4) Discs
5) Thermal pellet
6) Ceramic bushing
7) Spring A
8) Spring B
9) Metal case


BF-I Series Specifications

P/N

Rated
functioning
temp.

Fusing-off
temperature

Holding
temperature

Maximum
temp .limit

Rated
current

Rated
voltage

(Tf)(Th)(Tm)(Ir)(Ur)
BF73-I73℃70±2℃58℃175℃10A250V
15A125V
16A125V
BF77-I77℃74±2℃62℃175℃10A250V
15A125V
16A125V
BF84-I84℃82±2℃69℃175℃10A250V
15A125V
16A125V
BF94-I94℃90±2℃79℃175℃10A250V
15A125V
16A125V
BF99-I99℃95±2℃84℃175℃10A250V
15A125V
16A125V
BF104-I104℃101+2/-3℃90℃175℃10A250V
15A125V
16A125V
BF113-I113℃110±2℃98℃175℃10A250V
15A125V
16A125V
BF117-I117℃114±2℃102℃175℃10A250V
15A125V
16A125V
BF121-I121℃118±2℃106℃175℃10A250V
15A125V
16A125V
BF133-I133℃131+2/-3℃119℃215℃10A250V
15A125V
16A125V
BF142-I142℃138+2/-3℃127℃215℃10A250V
15A125V
16A125V
BF157-I157℃154+2/-3℃142℃250℃10A250V
15A125V
16A125V
BF172-I172℃169+2/-3℃157℃260℃10A250V
15A125V
16A125V
BF184-I184℃181±2℃169℃260℃10A250V
15A125V
16A125V
BF192-I192℃189±2℃177℃390℃10A250V
15A125V
16A125V
BF216-I216℃212±2℃191℃380℃10A250V
15A125V
16A125V
BF229-I229℃226±2℃201℃390℃10A250V
15A125V
16A125V
BF240-I240℃236±2℃201℃450℃10A250V
15A125V
16A125V
BF257-I257℃254±2℃200℃450℃10A250V
15A125V
16A125V

Rated functioning temp.(Tf):The temperature at which a Thermal Cutoff changes its state of conductivity to open circuit detection current. The tolerance according to IEC60691 is from +0 to -10degC. (With Japan Electrical Appliance and Material Law, on the other hand, they must function in the tolerance range of +/-7degC)
Fusing-off temperature:The fusing-off temperature indicates value measured in silicon oil with a temperature increased by 0.5-1degC per minute and a detective current 100mA or less.
Holding temperature(Th):The maximum temperature at which a Thermal Cutoff will not cause a change in state of conductivity to open circuit while conducting rated for 168 hours. This rating is required by safety standards based on IEC60691.
Maximum temp. limit(Tm):The maximum temperature at which a Thermal Cutoff can be maintained for 10 minutes without re-closing. This rating is required by safety standards based on IEC60691.
Rated current(Ir):The allowable maximum current which a Thermal Cutoff is able to carry.
Rated voltage(Ur):The allowable maximum voltage which a Thermal Cutoff is able to be applied.


Caution:
1, can not make the shell deformed or crushed during installation!
2, the product unfit for air temperature, applies only contact temperature!
(Available tie wire, wire, silicone rubber mounts or 704 as fixed)
3, metal case live, the water unfit for work.
Not immersed insulation sealant into the water at the time of the plastic shell work.
4, when the product is installed, the thermostat switches the appliance should be installed close to the charged surface.
In order to avoid the heat is not accurate.


Package

A small package includes 100Pcs. A big package includes 10 small packages.One big package contains 1000pcs of thermal cutoffs (10×100pcs)
