Specifications
Model Number :
NSMD005
Certification :
UL,TUV,CSA,RoHS
MOQ :
3500 Pcs
Price :
USD 0.03 to 0.05 Per Pieces
Payment Terms :
T/T
Supply Ability :
350,000,000 Pieces Per Month
Delivery Time :
10 Workdays
Packaging Details :
Tape,3500 Pieces Per Reel
Type Name :
Surface Mount Fuse
Function :
Resettable
Operation Current :
0.05A(0.05A~2.0A)
Maximum Voltage :
6V~60V
Temperature Range :
-40℃ to 85℃
Trip Current :
0.15A
Rated Voltage :
60 Vdc
Max Current :
10A
Typical Power :
0.4W
Max Time to Trip -Current :
0.25A
Max Time to Trip - Time :
1.50 sec
Resistance Tolerance Rmin :
2.5 Ohm
Resistance Tolerance R1max :
40 Ohm
Approvals :
UL,TUV,CSA,RoHS
Description

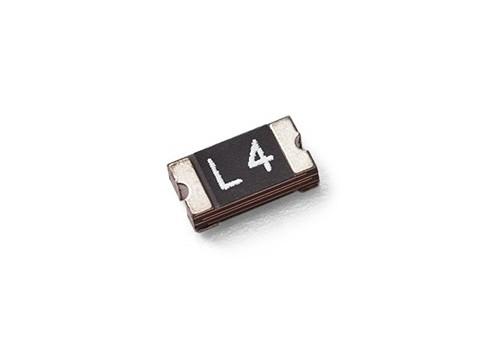

Fast Tripping Resettable Solid State SMD Polymer PTC Devices Surface Mount Fuse 1206 50mA 60V For Automated Assembly

Agency Approvals

Agency Approvals:UL,CSA,TUV
Regulation/Standard: RoHS 2.0(2011/65/CE)

______________________________________________________________________________Fast Tripping Resettable Solid State SMD Polymer PTC Devices Surface Mount Fuse 1206 50mA 60V For Automated Assembly Download________

Product Dimensions & Marking (Unit: mm)

Fast Tripping Resettable Solid State SMD Polymer PTC Devices Surface Mount Fuse 1206 50mA 60V For Automated Assembly

P/N

Marking

 A B C D
Min. Max. Min. Max. Min. Max. Min.
NSMD005 T0 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD010 T1 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD012 T01 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD020 T02 3.00 3.40 1.40 1.80 0.60 1.00 0.25
NSMD025 T03 3.00 3.40 1.40 1.80 0.60 1.00 0.25
NSMD035 T04 3.00 3.40 1.40 1.80 0.60 1.00 0.25
NSMD050 T05 3.00 3.40 1.40 1.80 0.60 1.00 0.25
NSMD075 T07 3.00 3.40 1.40 1.80 0.45 0.85 0.25
NSMD100 T10 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD110 T10 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD150 T15 3.00 3.40 1.40 1.80 0.80 1.20 0.25
NSMD175 T20 3.00 3.50 1.40 1.80 0.80 1.20 0.25
NSMD200 T20 3.00 3.50 1.40 1.80 0.80 1.20 0.25

Electrical Characteristics

P/N IH, (A) IT,(A) Vmax,(v) Imax,(A) (A) (Sec.) Pd typ(W) (Ω)
Rmin R1max
NSMD005 0.05 0.15 60 10 0.25 1.50 0.40 2.500 40.00
NSMD010 0.10 0.25 30 10 0.50 1.20 0.40 1.400 15.00
NSMD012 0.12 0.29 30 10 1.00 0.20 0.40 1.350 8.500
NSMD020 0.20 0.46 24 10 1.00 0.60 0.60 0.600 2.600
NSMD025 0.25 0.55 16 10 1.25 0.60 0.60 0.400 2.400
NSMD035 0.35 0.75 6 40 8.00 0.10 0.60 0.300 1.200
NSMD050 0.50 1.00 13.2 40 8.00 0.10 0.40 0.150 0.750
NSMD075 0.75 1.50 6 100 8.00 0.10 0.40 0.100 0.400
NSMD100 1.00 2.00 6 100 8.00 0.10 0.60 0.060 0.280
NSMD110 1.10 2.20 6 100 8.00 0.10 0.60 0.060 0.280
NSMD150 1.50 3.00 6 100 8.00 0.30 0.60 0.030 0.170
NSMD175 1.75 3.50 6 100 8.00 1.00 0.70 0.020 0.12
NSMD200 2.00 4.00 6 100 8.00 1.00 0.70 0.020 0.120
IH=Hold current: maximum current at which the device will not trip at 25℃ still air.
IT=Trip current: minimum current at which the device will always trip at 25℃ still air.
Vmax=Maximum voltage device can withstand without damage at rated current.
Imax=Maximum fault current device can withstand without damage at rated voltage.
Ttrip=Maximum time to trip(s) at assigned current.
Pdtyp=Typical power dissipation: typical amount of power dissipated by the device when in state air environment.
Rmin=Minimum device resistance at 25℃ prior to tripping.
R1max=Maximum device resistance measured in the nontripped state 1 hour post reflow.
Features
Small size of 1206
Fast tripping resettable circuit protection
Surface mount packaging for automated assembly
Agency recognition: UL,CSA,TUV
RoHS Compliant (Lead Free) Product
Applications: All high-density boards
Product Features: Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices
Operation Current: 0.05A~2.0A
Maximum Voltage: 6V~60V
Temperature Range : -40℃ to 85℃
Thermal Derating Curve
Fast Tripping Resettable Solid State SMD Polymer PTC Devices Surface Mount Fuse 1206 50mA 60V For Automated Assembly

Typical time to trip at 25℃

The Time to Trip curves represent typical performance of a device in a simulated application environment. Actual performance in specific customer applications may differ from these values due to the influence of other variables.

Fast Tripping Resettable Solid State SMD Polymer PTC Devices Surface Mount Fuse 1206 50mA 60V For Automated Assembly

Packaging

Model Q’ty/Reel

NSMD005 ~ NSMD012；NSMD100~NSMD200 3500 pcs

NSMD020 ~ NSMD075 4000 pcs

Thermal Derating Chart – I hold (Amps)

P/N Ambient Operating Temperature
-40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃
NSMD005 0.08 0.07 0.06 0.05 0.05 0.04 0.04 0.03 0.03
NSMD010 0.16 0.14 0.13 0.10 0.09 0.08 0.08 0.07 0.06
NSMD012 0.19 0.17 0.15 0.12 0.11 0.10 0.09 0.08 0.07
NSMD020 0.30 0.27 0.24 0.20 0.18 0.16 0.14 0.12 0.11
NSMD025 0.38 0.34 0.30 0.25 0.23 0.20 0.18 0.15 0.14
NSMD035 0.51 0.46 0.40 0.35 0.30 0.27 0.24 0.22 0.18
NSMD050 0.76 0.68 0.59 0.50 0.44 0.40 0.35 0.32 0.26
NSMD075 1.11 1.00 0.85 0.75 0.67 0.61 0.52 0.50 0.42
NSMD100 1.60 1.40 1.30 1.00 0.90 0.80 0.75 0.70 0.60
NSMD110 1.64 1.46 1.30 1.10 0.92 0.83 0.80 0.65 0.52
NSMD150 2.20 1.99 1.77 1.50 1.34 1.23 1.10 1.01 0.84
NSMD175 2.57 2.32 2.07 1.75 1.56 1.44 1.28 1.18 0.98
NSMD200 2.88 2.61 2.28 2.00 1.80 1.66 1.51 1.39 1.19
