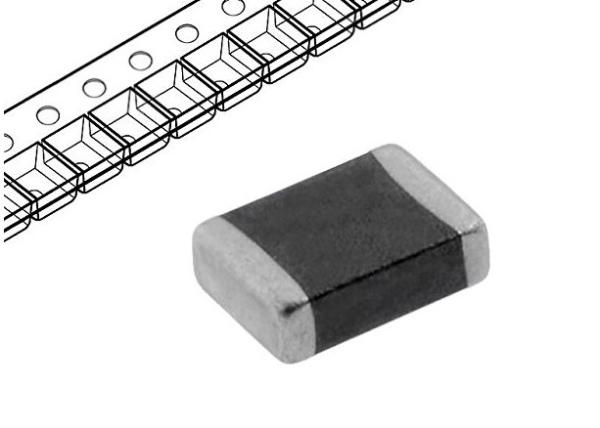

Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount
Specifications
Model Number :
MVR1812-390H
Place of Origin :
CHINA
MOQ :
1 Reel
Price :
0.1 ~ 0.3 USD/Pieces
Payment Terms :
T/T, Western Union
Supply Ability :
1,000,000 Pieces Per Month
Delivery Time :
2 Weeks
Packaging Details :

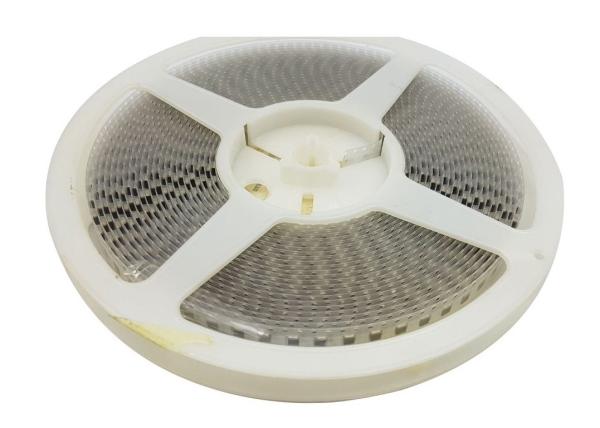

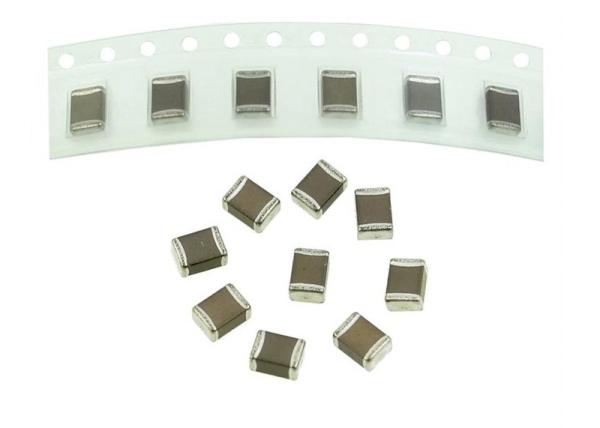

Tape in reel
Varistor Type :
SMD Metal Oxide Varistor
Size :
1812 (4532 metric)
Response time :
<5ns
Body :
ZNO
Terminal :
Ag/Ni/Sn SMD/SMT
Standard :
IEC61000-4-5
Customs number :
8533210000
Temperature range :
-55 ... +125 °C
Description

Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount

Description

The MVR Series of low voltage varistors is designed to protect sensitive electronics devices against high voltage surges in the low voltage region. They offer excellent transient energy absorption due to improved energy volume distribution and power dissipation. Low voltage varistors cover wide DC operating voltage range from 3V to 170V. The MVR Series is the same except for higher operating temperatures up to 150ºC. MVR varistors are typically applied to protect components at the circuit board level.

Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount

Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount

Features

* Sizes available: 0603, 0805, 1206, 1210, 1812, and 2220

* Nickel barrier terminations

* AC operating voltage range from 2 VRMS to 130 VRMS

* DC operating voltage range from 3 VDC to 170 VDC

* No plastic coating for a better flammability rating

* Inherently bi-directional

* Operating temperature range from -55°C to +125°C

* Compliant with AEC-Q200 (Grade 1)

Application

• On-board protection of voltage sensitive IC’s and transistors

• Fire and carbon monoxide detection

• Sensors and monitoring equipment

• Timers

• Auto and heavy equipment instrumentation

• ESD protection for components sensitive to IEC 1000-4-2, MIL-STD 883C Method 3015.7 and other industry specifications

• Suppression of inductive switching or other low to medium transient events at the circuit board level • Provides on-board transient voltage protection of ICs and transistors

• Replace larger surface mount TVS Zeners in many applications

• Used to help achieve electromagnetic compliance of end products

• 6 model sizes available 0603, 0805, 1206, 1210, 1812 and 2220

Size(mm)

Low Voltage SMD 1812 Multilayer Chip Metal Oxide Varistors MVR1812-390H 39V 800A 2500pF 3.1J 4532 Metric Surface Mount

Type Length(L) Width(W) High(H) Termination(L1)
1812 4.50±0.40 3.20±0.30 2.50(max) 0.75±0.25

Electrical Parameters

Part
Number
Working
Breakdown
Clamping
Peak Current
Voltage
Voltage
Voltage
AC
DC
@ 1mA DC
8/20uS

8/20uS(A) Ip(MAX)
VAC
VDC
VB
VC
0603
0805
1206
1210
1812
2220
3220
MVR1812-3R0G
1.4
2
3
2.4～3.6
9
20
MVR1812-5R0G
2.4
3.3
5
4.0～6.0
12
20
60
80
MVR1812-8R0G
4
5.5
8
7.0～10.5
14
20
60
80
250
400
MVR1812-120G
7
9
12
10～14
24
20
60
80
250
400
800
MVR1812-180G
11
14
18
15.5～21
30
20
80
100
250
400
800
500
MVR1812-240G
14
18
24
22-27
38
20
80
100
250
500
1200
500
MVR1812-270G
17
22
27
24～30
42
20
80
100
250
500
1200
500
MVR1812-330G
20
26
33
29～36
54
20
80
100
250
500
1200
500
MVR1812-390G
24
30
39
35～42
65
20
80
100
250
500
1200
500
MVR1812-470G
28
36
47
42～52
77
20
80
100
250
500
1200
500
MVR1812-560G
35
45
56
50～62
90
80
100
250
500
1200
500
MVR1812-680G
40
56
68
60～75
110
100
250
500
1200
500

MVR1812-820G
50
65
82
73～91
135
80
200
300
800
500
MVR1812-101G
60
85
100
90～110
165
80
200
300
800
500
MVR1812-121G
75
100
120
108～132
200
200
300
500
500
MVR1812-151G
95
125
150
135～165
250
300
500
500
MVR1812-181G
115
150
180
162～198
300
500
500
MVR1812-201G
130
170
205
184～226
340
500
MVR1812-221G
140
180
220
198～242
360
500
MVR1812-241G
150
200
240
216～264
395
500
MVR1812-271G
175
225
270
243～297
455
500
MVR1812-361G
230
300
360
324～396
595
500
MVR1812-391G
250
320
390
351～429
650
500
MVR1812-431G
275
350
430
387～473
710
400
MVR1812-471G
300
385
470
423～517
775
400

Enviromental Reliability Test

Characteristic Test method and description
High Temperature Storage The specimen shall be subjected to 125℃ for 1000 hours in a thermostatic bath without load and then stored at room temperature and humidity for 1 to 2 hours. The change of varistor voltage shall be within 10%.
