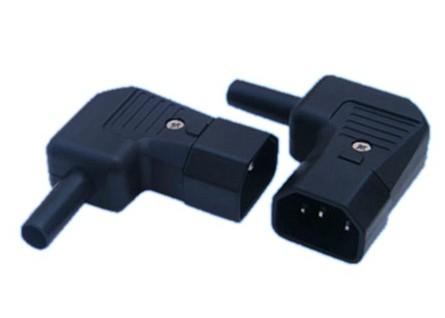

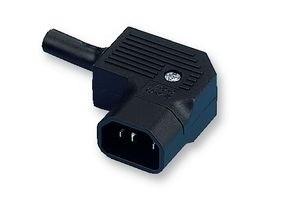

IEC 60320 Cable Mount AC Electrical Plug JA-2233-2 10A 250VAC 3PIN Screw Inlet Rewireable Male Power Entry Connector

Dimension(mm)

Description

- Cord Connectors (rewireable): Screw-on mounting
- 1 Function
- Appliance Inlet, Pin temperature 70 °C, Protection class I
- Cable

Main Features

Rating: 10A 250V AC
Insulation Resistance: 100MΩ 500V DC/1 minute
Dielectric Strength: 2000V AC/1 minute

Housing Material: Thermoplastic 94V-2~V-0

IEC 60320 Plug List

AC Inlets and Outlets

IEC 60320 Plug Inlet Outlet

Using IEC 60320 components in electrical product designs can be beneficial when exporting to global markets. The IEC 60320 standards are a series of standards specific to connectors, inlets, plug connectors, and outlets.

There are a number of benefits that may be gained for an equipment designer when following IEC 60320 standards. The IEC 60320 is the common connector interface throughout the industrialized world. It simplifies the task of specifying a connector to use on a cord set along with a country-specific plug. The IEC 60320 also provides a standard framework to work from for product design and testing. These connectors help prevent improper connections by the design configurations themselves. They provide a uniform connector for similar voltages, thus ensuring a safe connection. Another benefit is that the IEC 60320 standards are accepted globally.

The IEC 60320 AC power inlet is the most commonly used means of connecting a detachable cord set to electrical or electronic equipment. By designing an IEC 60320 power inlet into a product, the manufacturer can attach a cord set (e.g. a country-specific plug on one end and an IEC connector on the other end) just prior to shipment. This allows the equipment manufacturer to make one device for sale worldwide.

IEC-60320 (IEC320) Reference Chart

IEC-60320 Plugs and Connectors
Rating					Type
Configuration Female/Male	International	North America	Wires	Poles	Cord	Plug	Inlet	Connector	Outlet	Adapter
C1/C2	250 Volts 2.5 Amps	125 Volts 10 Amps	2 Wires	2 Poles	–	–	–	–	–	–
C3/C4	250 Volts 2.5 Amps	125 Volts 10 Amps	2 Wires	2 Poles	–	–	–	–	–	–
C5/C6	250 Volts 2.5 Amps	125 Volts 10 Amps	3 Wires	2 Poles	C14 - C5 5-15 - C5	–	C6	–	–	C6
C7/C8	250 Volts 2.5 Amps	125 Volts 10 Amps	2 Wires	2 Poles	C14 - C7 1-15 - C7	–	C8	C7	–	C8
C9/C10	250 Volts 6 Amps	– –	2 Wires	2 Poles	–	C10	–	–	–	–
C11/C12	250 Volts 10 Amps	125/250 Volts 15 Amps	2 Wires	2 Poles	–	–	–	–	–	–
C13/C14	250 Volts 10 Amps	125/250 Volts 15 Amps	3 Wires	2 Poles	C14 - C13 C14 - C15 C14 - C19/21 5-15 - C13	C14	C14	C13	C13	C14
C15/C16	250 Volts 10 Amps	125/250 Volts 15 Amps	3 Wires	2 Poles	5-15 - C15 C14 - C15 C20 - C15	–	C16	C15	–	Custom
C15A/C16A	250 Volts 10 Amps	125/250 Volts 15 Amps	3 Wires	2 Poles	C15A C16A	–	C16A	C15A	–	Custom
C17/C18	250 Volts 10 Amps	125/250 Volts 15 Amps	2 Wires	2 Poles	1-15 - C17	–	–	C17	–	–
C19/C20	250 Volts 16 Amps	125/250 Volts 20 Amps	3 Wires	2 Poles	C20 - C13 C20 - C19 C20 - C21 5-15 - C19	C20	C20	C19	C19	C20
C21/C22	250 Volts 16 Amps	125/250 Volts 20 Amps	3 Wires	2 Poles	C14 - C21 C20 - C21	–	C22	C21	–	Custom
C23/C24	250 Volts 16 Amps	125/250 Volts 20 Amps	2 Wires	2 Poles	–	–	–	–	–	–

Note
International Electro technical Commission (IEC) published IEC 60320 to specify appliance couplers for households and similar general purposes. These have become a de facto standard for the electrical interface between the device and the cord on most detachable power supply cords. Power distribution strips also employ this electrical interface between the source and the output cord.

Unlike NEMA which uses the same identifying series number for both male and female ends i.e. (5-15P to 5-15R) IEC 320 uses a sequential even number for male end and odd number for the mating female end i.e. (C14 to C13).
