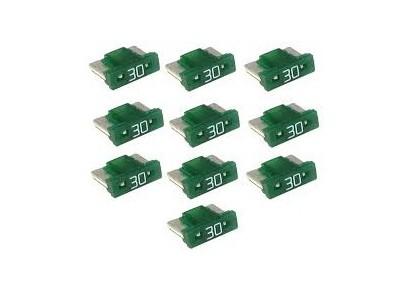

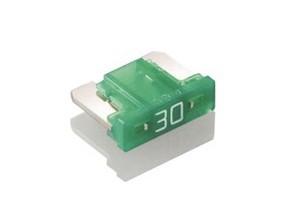

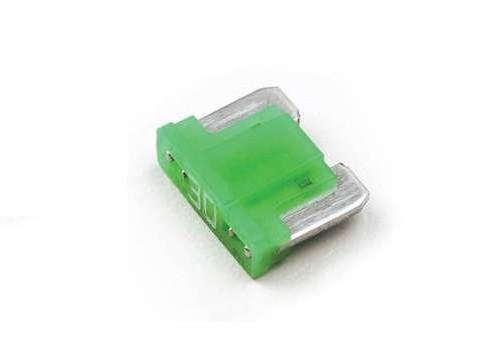

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Specifications
Model Number :
BFLP 1199
Place of Origin :
CHINA
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10,000,000 Pieces/Month
Delivery Time :
1-2 Weeks
Packaging Details :
Bulk
Fuse Type :
Mini Blade Fuse
Rated Voltage :
DC58V and less
Breaking Capacity :
1000A
Rated Current :
30A
Operation Temperature :
-40℃ - 80℃
Standard :
ISO8820-9
Description

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Quick Specifications

Automotive fuses that are most used by the automotive manufacturers in the world

► Rated Voltage: DC58V and less
► Breaking Capacity: 1000A
► Operation Temperature: -40℃ - 80℃
► Standard Packaging :20,000
► Standard: ISO8820-9

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Dimension (mm)

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Electrical Performances

Ampere Rating(A) Part Number Housing Colors Resistance Value Voltage Drop
2A 1190 Gray 46.6 mΩ 126 mV
3A 1191 Violet 33.7 mΩ 137 mV
4A 1192 Pink 20.6 mΩ 109 mV
5A 1193 Tan 16.5 mΩ 115 mV
7.5A 1194 Brown 10.2 mΩ 105 mV
10A 1195 Red 7.38 mΩ 104 mV
15A 1196 Blue 4.55 mΩ 97 mV
20A 1197 Yellow 3.25 mΩ 94 mV
25A 1198 White(natural) 2.50 mΩ 93 mV
30A 1199 Green 1.94 mΩ 88 mV

※The fuse characteristic may change depending on the conditions of use.

Time-Current Characteristics

% of Ampere Rating(A) Operating Time
MIN MAX
110% 100 hrs. -
135% 0.75 sec. 600 sec.
160% 0.25 sec. 50 sec.
200% 0.15 sec. 5 sec.
350% 0.04 sec. 0.5 sec.
600% 0.02 sec. 0.1 sec.

※The fuse characteristic may change depending on the conditions of use.

Time-Current Characteristics Chart

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Suitable Blade Fuse Holder

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda AutomotiveLow Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

Blade Fuse Series Introduction

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFSL Mini Blade Fuse : This state-of-the-art blade fuse was realized by reducing the width of the BFMN to offer space reduction

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFSL-3 Auto Fuse : BFSL-3 is a multi terminal state-of-the-art blade fuse

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFLP Automotive Fuse : BFLP is a lower-cost and more compact BFMN

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFMN Car Fuse : BFMN is a lower-cost and more compact BFAT

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFMN-S Auto Fuse :The BFMN-S is a blade fuse with excellent self-extinguising properties equivalent to UL standard V-0

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFAT-D Medium Blade Fuse

The BFAT-D is blade fuse that had spread extensively in non-automotive application

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive

BFAT-S Car Blade Fuse : The BFAT-S is a BFAT with Ag plated terminals
