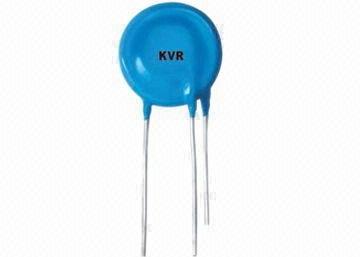

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO
Specifications
Model Number :
TMOV14-471A
Place of Origin :
Guangdong,China
MOQ :
1000 Pcs
Price :
0.37~0.5 US Dollars Per Pieces
Payment Terms :
T/T
Supply Ability :
500,000 Pieces Per Month
Delivery Time :
2 Weeks
Packaging Details :
Bulk,200pcs/bag,1000pcs/box,2000pcs/carton
Product Name :
Metal Oxide Varistor
Pin number :
3
Norminal Dia :
14mm
Package :
Radial
Lead wire :
Tinning copper wire)
Coating :
Blue insulated epoxy resin
Description

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

TMOV Description

The TMOV and iTMOV thermally protected varistors represent a new development in integrated circuit protection. Both versions are comprised of radial leaded MOVs (Metal Oxide Varistors) with an integrated thermally activated element designed to open in the event of overheating due to the abnormal overvoltage, limited current, conditions outlined in UL 1449.

The iTMOV varistor differs from the TMOV varistor by the inclusion of a third party lead for the purpose of indicating that the MOV has been disconnected from the circuit. This lead facilitates connection to monitoring circuitry.
The TMOV and iTOMV varistors offer quick thermal response due to the close proximity of the integrated thermal element to the MOV body.
The integrated configuration also offers lower inductance than most discrete solutions resulting in improved clamping performance to fast over-voltage transients.
Additionally, TMOV and iTMOV varistors are wave solderable, thus simplifying end product assembly by reducing the expense and rework associated with hand soldering operations.
The TMOV and iTMOV varisors are both recognized surge suppression components to UL 1449.
The TMOV and iTMOV varistor’s integrated thermal element, in conjunction with appropriate enclosure design, helps facilitate TVSS module compliance to UL 1449 for both cord connected and permanently connected applications.
TMOV and iTMOV varistors are compatible for use with industry standard wave-soldering processes or recommended hand-soldering methods.

________________________________________________________________________Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO Download_______

Features


RoHS compliant and Lead–free available
Designed to facilitate compliance to UL1449 3nd Edition for SPD product
High peak surge current rating up to 10kA
Wave solderable
Standard lead form and spacing option
Low leakage
-55°C to +85°C operating temp range
Three-lead version available for indication purposes

Dimension in mm

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

D (max.) 17.5
H2 (max.) 21.0
T (max.) 10.1
L (min) 20.0
l (min) 15.0
W1 (±1.0) 7.5
W2 (±1.0) 3.0
e1 (max) 3.4
e2 (max) 5.1
d1 (±0.1) 0.8
d2 (±0.1) 0.5
Lead wire Tinning copper wire
R

Comply with ROHS Directive
Coating Blue Epoxy resin

Electrical parameters

Varistor voltage (V1mA) 423V ~ 470 V ~ 517V
Max. continuous operating voltage Vrms: 300 V; VDC: 385V
Rated power 0.6 W
Max. clamping voltage (8/20μs) VC: 775V; IC: 50A
Surge current (1×8/20μs) 4500 A (8/20μs)
Max. energy 125 J (2ms)
Typical capacitance 550pF (1KHz)
Leakage current ≦10μA (75% of V1mA (DC))
Operating temperature -40℃ ~ +85℃
Storage temperature -40℃ ~ +100℃
Fuse temperature 146℃
Hand soldered temperature / Time 265℃/3s
Package
■ Bulk 200pcs/bag 1000pcs/box 2000pcs/carton

Applications


• SPD Products
• AC Panel Protection Modules
• AC Line Power Supplies
• Surge Protected Strip Connectors
• Relocatable AC Power Taps
• GFCI (Ground Fault Current Interupter)
• UPS (Uninterruptable Power Supply)
• Plug-in SPD
• Inverters
• AC/DC Power Supplies

Other products you may interesting in

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

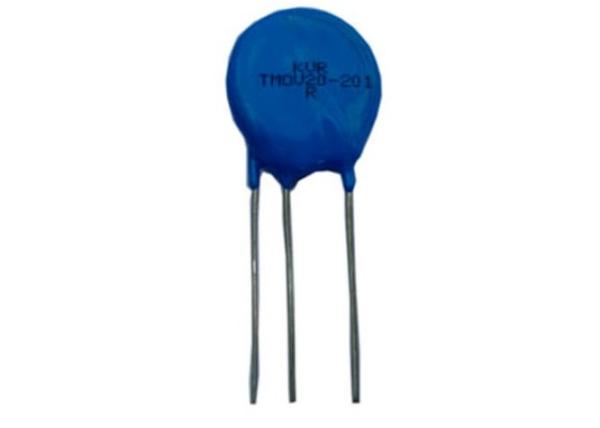

TMOV/D20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

TMOV/D25

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

TMOV/D32

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

PA/D20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYP/D32

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYP/D40

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYP/D53

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYP/Q34

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYE/E20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYE/E30

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYE/E40

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYE/E70

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYL/D25

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYL/D32

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYL/D40

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYL/D53

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYL/Q34

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYH/Q20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYH/Q14

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYH/D20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYH/D14

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYG/D20

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYG/D14

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYG/D10

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYG/D7

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

MYG/D5

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

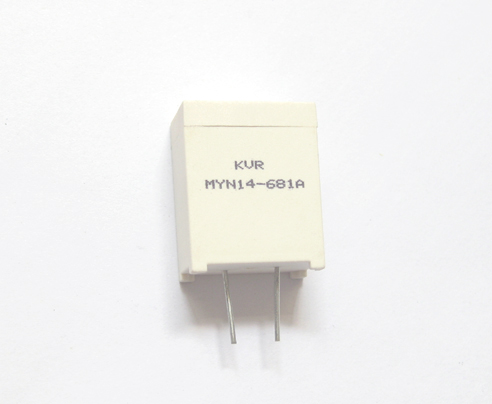

MYN/681K

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

KM20C/4

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

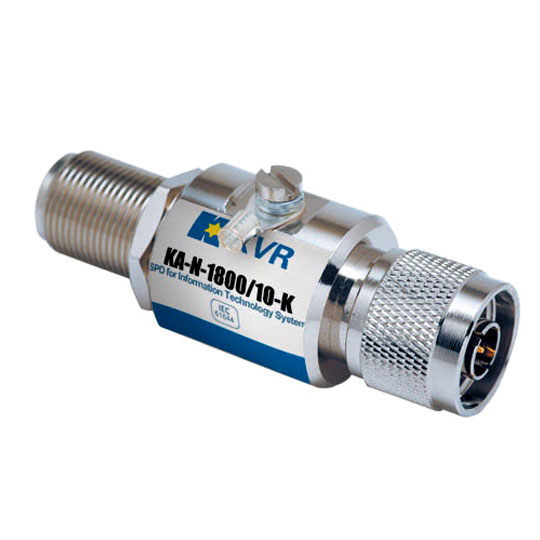

KA-N-K

Low Leakage Current 14mm Disc 3Pin Metal Oxide Varistor TMOV 300Vac Thermally Protected With Thermal Cutoff TCO

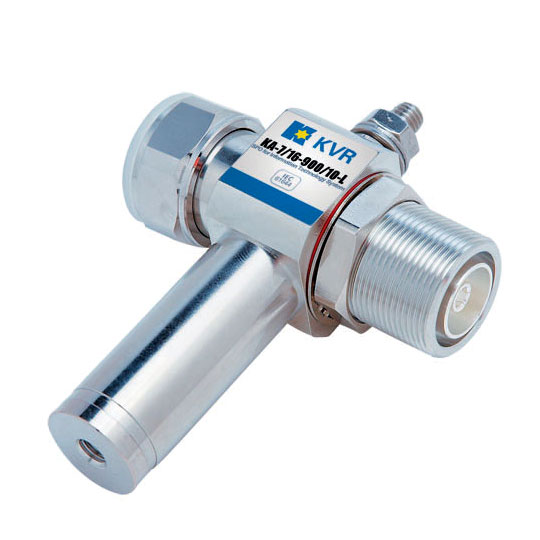

KA-716/06161630265
