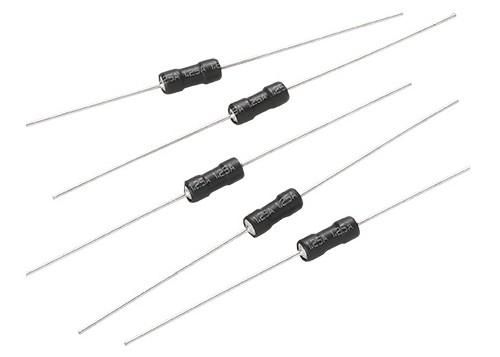

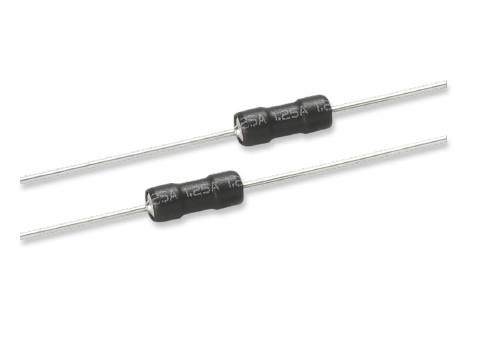

Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube
Specifications
Model Number :
PMU
Certification :
TUV UL CUL KTL CQC
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100KKPCS Per Month
Delivery Time :
10 Workdays
Packaging Details :
Bulk
Type :
Ceramic Tube Fuse With Black Heat Shrink Tube
Size :
2.9*8.3 mm
Voltage :
250V
Current :
1A-20A
With :
Black Heat Shrink Tube
Interrupting Rating :
70A
Description

Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube

Description

PMU ceramic tube fuse with black heat shrink tube is a customized example.Also other dimension can be available with customzed such as lead shaping, add heat shrink tube etc with low cost,no matter it is glass fuse or ceramic fuse, below is availabile list

Glass Fuse
STP Series 3.6x10mm 250V 0.5A-20A Time-Lag SFP Series 3.6x10mm 250V 0.5A-20A Fast-acting
STC Series 5X20mm 250V 0.5A-20A Time-Lag SFC Series 5*20mm 250V 0.5A-20A Fast-acting
BMT Series 6*30mm 250V 0.5A-20A Time-Lag BMF Series 6*30mm 250V 0.5A-20A Fast-acting

Advantage

Low cost extra services

Customer can use directly

Fuse with global certificates

Proper processing

Approval


TUV 1.25A~2A
Recognized Component for Canada and U.S. 500mA~6.3A
KTL 1.25A
CQC 1.25A~2A

Electrical Characteristic

Rated current 1 In 2 In
Min. Max.
1.25A/1.6A 4 hour 60 sec

Ordering Information

PN Ampere
Rating
[ In ]		 Voltage
Rating
( V )		 Nominal
Resistance
Cold Ohms		 Nominal
Melting I t
A Sec		 Voltage
Drop(mv)
MAX
PMU 1.25 1.25A

250V

 0.540 3.010 300
PMU 1.6 1.6A 0.0446 3.460 400

Interrupting Rating


70 amperes at 250V AC


Environmental Specification


-55°C to +125°C


Mechanical Dimension(mm)

Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube

Customized PMU Subminiature Ceramic Tube Fuse 250V 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 5A 6A 6.3A With Black Heat Shrink Tube

Physical Specification


Material
Ceramic Body / Nickel Plated Brass Caps
Lead Wire: Diameter 0.6 mm
