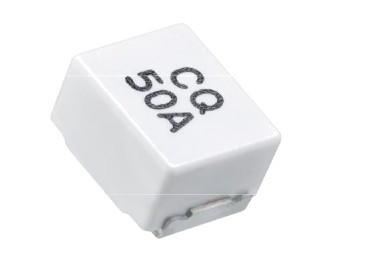

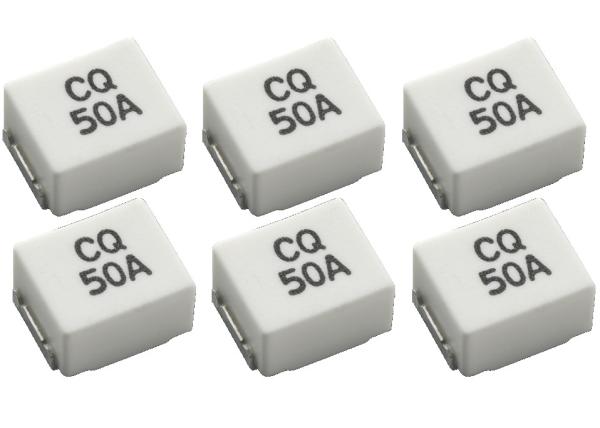

MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS
Specifications
Model Number :
MMS-P 050
Certification :
UL,ROHS,H/F,PB Free
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10KKPCS Per Month
Delivery Time :
2 Weeks
Packaging Details :
Tape,1,000 pcs per reel.
Type :
SMD Fuse
Size :
7.3*5.8*4.0
Voltage :
35V/60V
Material :
Ceramic
Current Rating :
50A
Approvals :
UL
Description

MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS

Features

High current rating

Size saving on PCB

Waterproof

Overview

Application Cooling Fan System, Battery Management System (BMS)
Approval Recognized Component for Canada and U.S. 50A
Interrupting Rating 300 amperes at 35V DC
Operating Temperature -55°C to +125°C
Vibration MIL-STD-202G, Method 201(10-55 Hz, 0.06 inch, total excursion)
Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance MIL-STD-202G, Method 302, Test Condition A
Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)

MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS

Electrical Characteristic

Rated current 1 In 2.5 In
Min Max
50A 4 Hour 60 sec

Specification

P/N Marking Ampere Rating [ In ] Voltage Rating ( V ) Nominal
Resistance
Cold Ohms		 Nominal
Melting I²t
A² Sec
MMS-P 050 50A 50A 35V 0.0007 1750.00

1. Measured at ≤ 10% of rated current and 25ºC.
2. Melting I²t at 1000% of current rating.

Physical Specification


Material
Constuction Body Material: Ceramic
Termination Material: Copper(Cu), Tin(Sn)
Fuse Element: Copper(Cu), Tin(Sn)


Packaging


1. Tape & Reel: 16mm tape
2. Packing Specification: EIA Standard 481-D
3.Quantity: 1,000 pcs per reel.


Mechanical Dimension(mm)

MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS

Recommended Land Pattern

MMS-P Series SMD High Current Ceramic Surface Mount Micro CartridgeFuse 7.3x5.8mm 35V 50A For Cooling Fan System BMS

Fuse group

circuit protection design combines miniature Fuses,Fuse Bases and Fuse-Carriers.We provide to you good combinations according to your different demands.For example,a fuse clip or holder is suitable for fuse without lead wire connect with pcb,it's easy for user change and fix it.
The Fuse-Holder must be thinking about the maximum energy dissipation (temperature raise) of the application and must check especially in installment about the temperature raise in the maximum ambient temperature. Please ask for further detailed information for choice and application of our Fuse-Links.
