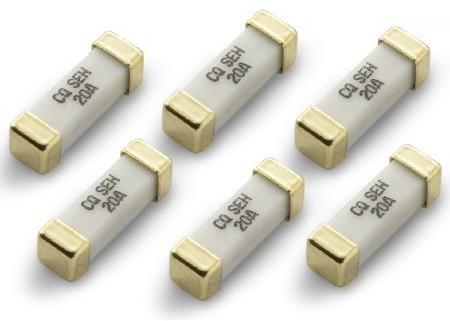

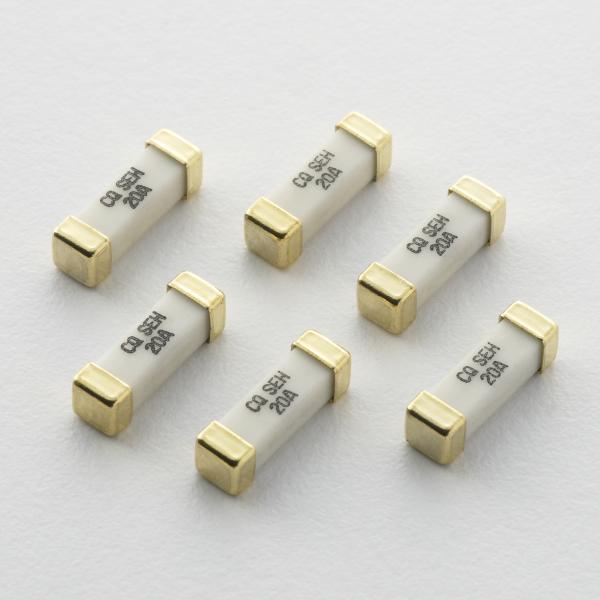

UL Approved 1032 Square Ceramic Gold Plated Surface Mount Fuse SEH SEG 500mA-30A 125V 300V 10.1x3.1x3.1mm

General

• Surface mount high current fuse

• Available in ratings of 20 to 60 Amperes

• Higher voltage rating up to 100VDC

• 1032square shape surface mount

• Operating temperature range from -55°C to 125°C

• Enhanced thermal cycling endurance

• RoHS compliant and Halogen Free

• Approval Recognized Component for Canada and U.S. 0.5A~30A

Application

• Storage system power

• Cooling fan system for PC server

• Voltage regulator module

• Base station power supply

• Voltage regulator module for PC server

• High end servers / Blade computing

• Battery Management System

Electrical Characteristic

Interrupting Rating

0.5A~2A: 60 amperes at 300V AC
100 amperes at 80V DC
20A: 100 amperes at 125V AC
300 amperes at 100V DC
25A~30A: 100 amperes at 125V AC
100 amperes at 100V DC

Environmental Specification

Operating Temperature:-55°C to +125°C
Vibration:MIL-STD-202G, Method 201(10-55 Hz, 0.06 inch, total excursion)
Salt Spray:MIL-STD-202G, Method 101, Test Condition B (48Hrs)
Insulation Resistance:MIL-STD-202G, Method 302, Test Condition A
Resistance to Solder Heat:MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)
Thermal Shock:MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)

Ordering info

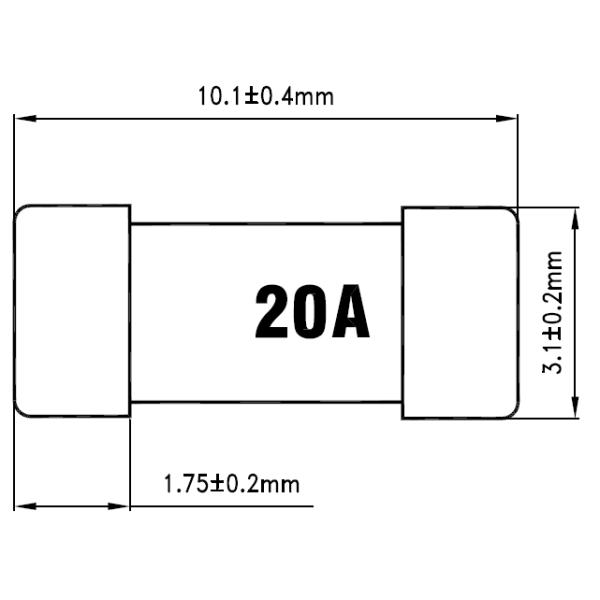

Mechanical Dimension(mm)

Physical Specification

Material
Body: Ceramic
Terminations: Gold Plated Brass Caps

Packaging

1. Tape & Reel: 24mm
2. Packing Specification: EIA RS-481-2
3. Quantity: 2,500 pcs per reel.

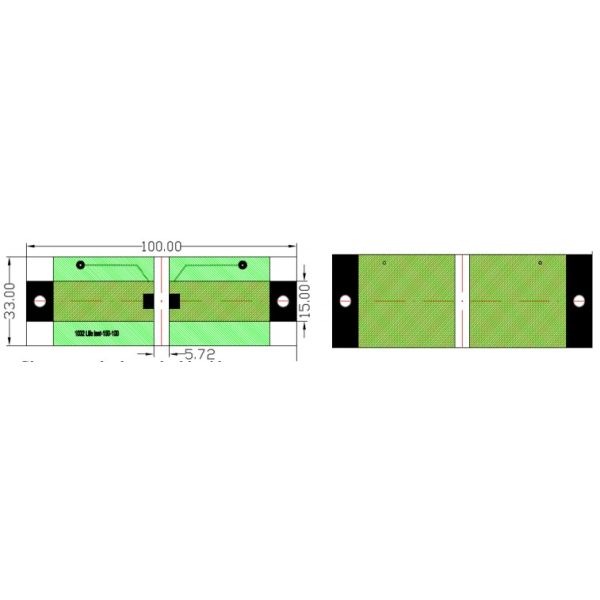

Standard Test Board

Glass epoxy body on double side; Board thickness: 1.6mm; Thickness of Copper layer: ≥100μm; Width of Copper trace: One side 15mm and the other side 33mm
