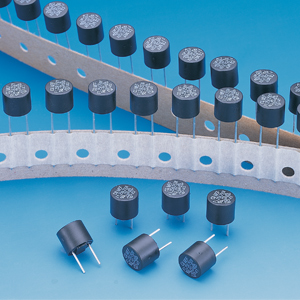

Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Specifications
Model Number :
MET .315
Certification :
CCC KTL PSE UL TUV VDE CSA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100KKPCS Per Month
Delivery Time :
10 Workdays
Packaging Details :
Bulk: 1,000 pcs per box. Tape: Ammo pack, 1,000 pcs box
Article :
Micro Fuse
Rated current :
3.15A(40mA~6.3A )
Voltage :
250V~277V
Material :
PLASTIC
Characteristic :
Slow Blow
Pig-Tail :
Yes
Shape :
Round
Color :
Black
Description

Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL

Features


Ø 8.35*7.7 mm Micro fuse
Small volume,
Rating Current : MEF 50mA~6.3A ; MET 40mA~10mA ; MSF 50mA~6.3A ; MSt 40mA~10A ;
MAF 50mA~10A ; MAT 40mA~10A ; SAF 50mA~6.3A ; SAT 40mA~6.3A
Rating Voltage : 250V / 277V / 300Vac
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability.
Operating temperature range: -55℃ to +125℃

Application

• Battery Chargers
• Consumer Electronics
• Power Supplies
• Industrial Controllers
•Flat-panel display TV
•LCD monitor
•LCD back light inverter
•Office machines
•Audio/Video system
•Lighting system
•Medical equipment

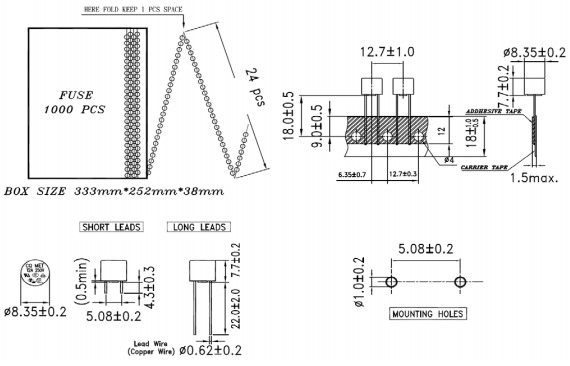

Mechanical Dimensions

Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL

Product specifications attribute table

P/N Rated current
(A)		 Rated voltage
(V)		 cold resistance maximum voltage drop I²T value Breaking capacity Unit Weight(g)
MET .040 40 mA 250V/277V 12.864 600 0.0158 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .050 50 mA 250V/277V 8.9 550 0.0225 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .063 63 mA 250V/277V 5.4053 480 0.0446 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .080 80 mA 250V/277V 3.687 400 0.0634 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .100 100 mA 250V/277V 2.4063 350 0.108 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .125 125 mA 250V/277V 1.6194 300 0.1223 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .160 160 mA 250V/277V 1.2458 280 0.17 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .200 200 mA 250V/277V 0.824 260 0.306 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .250 250 mA 250V/277V 0.63 240 0.6019 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .315 315 mA 250V/277V 0.38 220 0.8216 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .400 400 mA 250V/277V 0.27 200 1.4832 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .500 500 mA 250V/277V 0.195 190 2.7 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .630 630 mA 250V/277V 0.1322 180 3.1792 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET .800 800 mA 250V/277V 0.0907 160 5.76 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 001 1 A 250V/277V 0.075 140 8.73 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 002 2 A 250V/277V 0.0316 100 36 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 004 4 A 250V/277V 0.0136 100 158.4 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 005 5 A 250V/277V 0.01 100 202.5 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 008 8 A 250V/277V 0.0042 100 155.52 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 010 10 A 250V/277V 0.0034 100 288 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 1.25 1.25 A 250V/277V 0.055 130 14.766 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 1.60 1.6 A 250V/277V 0.0425 120 23.04 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 2.50 2.5 A 250V/277V 0.0241 100 56.25 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 3.15 3.15 A 250V/277V 0.0188 100 93.768 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553
MET 6.30 6.3 A 250V/277V 0.0074 100 310.77 35A or 10*rated current at 250V AC
UL Recognized Component:35A or 10*rated current at 277V AC		 0.49553

Electrical Characteristic

Rated Current 1.5 In 2.1 In 2.75 In 4 In 10 In
Min. Max. Min. Max. Min. Max. Min. Max.
50mA~5A 60min 2min 400ms 10sec 150ms 3sec 20ms 150ms
6.3A~10A 60min 2min 400ms 10sec 150ms 3sec 20ms 150ms

Approval

VDE 50mA~6.3A
TUV 8A / 10A
UL Recognized 50mA~6.3A(250V/277V)
CSA Acceptance 50mA ~6.3A
PSE 1A ~ 10A(250V/277V)
CCC 50mA~6.3A
KTL 50mA~6.3A

Interrupting Rating

35 amperes or 10 x rated current; whichever is greater at 250V AC.

5 amperes or 10 x rated current; whichever is greater at 277V AC.(optional)

Environmental Specification

Operating Temperature -55°C to +125°C

Vibration MIL-STD-202G, Method 201(10-55 Hz x 3axis/no load)

Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)

Insulation Resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum

Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec,at 260°C)

Thermal Shock: MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)

Physical Specification

Material Base and Cap: Black thermoplastic, UL 94-V0

Round Pins: Copper, Tin-plated

Packaging

1. In bulk: 1,000 pcs per box.

2. On Tap: Ammo pack, 1,000 pcs box

Series introduction

Product Image Part No Ampere Voltage Dimension Material Characteristic Safety Approval
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL MEF

 50mA~6.3A 250V 8.35mmx7.7mm Plastic F Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL MET 40mA~6.3A

250V

277V

 8.35mmx7.7mm Plastic T Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL MSF

 50mA~6.3A 250V 8.35mmx7.7mm Plastic F
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL MST 40mA~10A

250V

277V

 8.35mmx7.7mm Plastic T Dip Round Radial lead Time Lag Subminiature Sized Micro Fuse T3.15A 250V MET 3.15A 277V 8.35x7.7mm UL
