UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm
Specifications
Model Number :
MSF 005
Certification :
VDE CSA UL PSE CCC CQC
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
T/T,Paypal
Supply Ability :
5KKPCS Per Month
Delivery Time :
2 Weeks
Packaging Details :
Ammo or Bulk,1000pcs per box
Type :
Fast Blow Micro Fuse
Color :
Black
Shape :
Square/Box Type
Size :
8.35x7.7mm
Speed :
Fast-acting
Rated current :
5A
Rated Voltage :
250V
Interrupting Rating :
35A
Description

UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm

Approval

VDE 50mA~6.3A

CSA Acceptance 50mA~6.3A

UL Recognized 50mA~6.3A

PSE 1A~6.3A

CCC 50mA~5A

CQC 6.3A

UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm

Electrical Characteristic

Rated
current		 1.5In 2.1In 2.75 In 4 In 10 In
MIN MAX MIN MAX MIN MAX MAX
50mA~5A 60 min 30 min 10 ms 3 sec 3 ms 300 ms 20 ms
6.3 A 60 min 30 min 10 ms 5 sec 3 ms 300 ms 20 ms

Environmental Temperature at 25°C

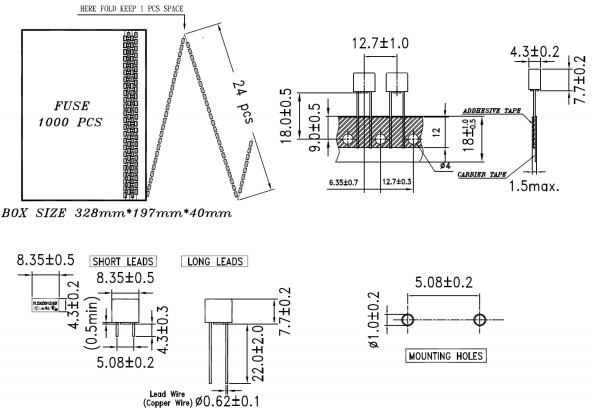

Mechanical Dimensions

UL VDE CSA Ammo Pack Radial Leaded Black Thermoplastic Fast Blow Micro Fuse MSF 005 F5A 250V 8.35x7.7mm

Specification

Product Type (A) (V) cold resistance maximum voltage drop I²T value Breaking capacity Weight(single product)
MSF .050 50 mA 250V 4.197 850 0.000675 35A or 10*rated current at 250V AC 0.35419
MSF .063 63 mA 250V 2.802 750 0.001429 35A or 10*rated current at 250V AC 0.35419
MSF .080 80 mA 250V 1.71 650 0.007258 35A or 10*rated current at 250V AC 0.35419
MSF .100 100 mA 250V 1.16 600 0.009 35A or 10*rated current at 250V AC 0.35419
MSF .125 125 mA 250V 1.0002 550 0.012656 35A or 10*rated current at 250V AC 0.35419
MSF .160 160 mA 250V 1.4923 500 0.02304 35A or 10*rated current at 250V AC 0.35419
MSF .200 200 mA 250V 1.0965 480 0.0324 35A or 10*rated current at 250V AC 0.35419
MSF .250 250 mA 250V 0.7007 440 0.081563 35A or 10*rated current at 250V AC 0.35419
MSF .315 315 mA 250V 0.382 400 0.093768 35A or 10*rated current at 250V AC 0.35419
MSF .400 400 mA 250V 0.3006 370 0.1296 35A or 10*rated current at 250V AC 0.35419
MSF .500 500 mA 250V 0.2471 350 0.30375 35A or 10*rated current at 250V AC 0.35419
MSF .630 630 mA 250V 0.146 320 0.375071 35A or 10*rated current at 250V AC 0.35419
MSF .800 800 mA 250V 0.104 300 0.6912 35A or 10*rated current at 250V AC 0.35419
MSF 001 1 A 250V 0.08 280 0.72 35A or 10*rated current at 250V AC 0.35419
MSF 002 2 A 250V 0.033 240 3.6 35A or 10*rated current at 250V AC 0.35419
MSF 004 4 A 250V 0.0133 160 19.44 35A or 10*rated current at 250V AC 0.35419
MSF 005 5 A 250V 0.0109 150 21.375 35A or 10*rated current at 250V AC 0.35419
MSF 1.25 1.25 A 250V 0.0581 280 1.125 35A or 10*rated current at 250V AC 0.35419
MSF 1.60 1.6 A 250V 0.0406 250 2.1888 35A or 10*rated current at 250V AC 0.35419
MSF 2.50 2.5 A 250V 0.0229 200 7.03125 35A or 10*rated current at 250V AC 0.35419
MSF 3.15 3.15 A 250V 0.0179 180 8.037225 35A or 10*rated current at 250V AC 0.35419
MSF 004 4A 250V 0.0133 160 19.44000 35A or 10*rated current at 250V AC 0.35419
MSF 005 5A 250V 0.0109 150 21.37500 35A or 10*rated current at 250V AC 0.35419
MSF 6.30 6.3 A 250V 0.0087 150 46.4373 35A or 10*rated current at 250V AC 0.35419

Interrupting Rating

35 amperes or 10 x rated current; whichever is greater at 250V AC.

Environmental Specification

Operating Temperature -55°C to +125°C

Vibration MIL-STD-202G, Method 201(10-55 Hz x 3axis/no load)

Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)

Insulation Resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum

Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)

Thermal Shock: MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)

Physical Specification

Materials Base and Cap: Black thermoplastic, UL 94-V0

Round Pins: Copper, Tin-plated

Packaging

1. In bulk: 1,000 pcs per box.

2. On Tap: Ammo pack, 1,000 pcs box
