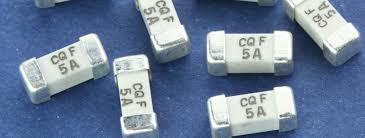

SEF 2410 Speed F 6.1x2.6x2.6mm Fast Acting Square Ceramic Cartridge Fuse Surface Mount Fuse 1A 65V 125V

Features

A hollow precise ceramic tube design
Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc.
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability, 2 terminal caps can choice plating gold or silver.
Meet RoHS Requirement
Operating temperature range: -55 C to +125 C
Our SET,SEF series products, because the materials used in these fuses include
high melting temperature type solder and this solder contains more than 85%
lead (Pb), so these products can conform to the exempts of the requirements of RoHS Directive (2002/95/EC)

SEF 2410 Speed F 6.1x2.6x2.6mm Fast Acting Square Ceramic Cartridge Fuse Surface Mount Fuse 1A 65V 125V

Application

• Cell phones
• Battery packs
• Digital cameras
• DVD players
• Hard disk drives

Approval

PSE 1A~15A

Certified products for U.S. and Canada 62mA~5A

Recognized Component for Canada and U.S. 6A~15A

CSA Listed 62mA~10A

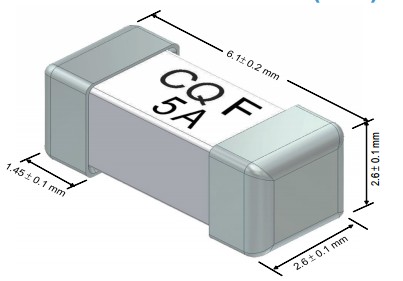

Dimension(mm)

SEF 2410 Speed F 6.1x2.6x2.6mm Fast Acting Square Ceramic Cartridge Fuse Surface Mount Fuse 1A 65V 125V

Material :Tube (Body): Non-Transparent ceramic tube fuse. No breaking or deformation is allowed.
Two brass end caps: Made of brass of good conductivity. (Silver Plating)
Silver Alloy: Fuse element.

Electrical Characteristic

Rated Current 1 In 2 In
MIN MAX
62mA~10A 4 hr 5 sec
12A~15A 4 hr 60 sec

Part number

Product Type
(A)
(V)		 cold resistance

max

voltage drop

 I²T value Breaking capacity Weight(single product)
SEF .062 62 mA 125V 11.275 1000 0.000961 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .080 80 mA 125V 9.955 900 0.001 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .100 100 mA 125V 9.513 900 0.0015 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .125 125 mA 125V 5.8395 800 0.00312 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .200 200 mA 125V 2.0195 600 0.008 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .250 250 mA 125V 1.105 500 0.00938 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .300 300 mA 125V 0.8554 450 0.018 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .375 375 mA 125V 0.7819 400 0.0211 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .400 400 mA 125V 0.52 350 0.032 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .500 500 mA 125V 0.4895 300 0.0375 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .700 700 mA 125V 0.2814 280 0.1205 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF .750 750 mA 125V 0.2425 270 0.1531 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 001 1 A 125V 0.1407 250 0.385 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 002 2 A 125V 0.0594 200 0.894 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 003 3 A 125V 0.0333 160 1.475 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 004 4 A 125V 0.0209 150 3.882 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 005 5 A 125V 0.0179 130 5.48 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 006 6 A 125V 0.0117 120 8.52 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 007 7 A 125V 0.0104 120 9.931 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 008 8 A 125V 0.0095 110 18.82 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 010 10 A 125V 0.0067 90 22.5 35A at 125V AC
50A at 125V DC
300A at 32V DC		 0.1243
SEF 012 12 A 65V 0.0042 80 43.2 50A at 65V AC/DC
300A at 24V DC		 0.1243
SEF 015 15 A 65V 0.0029 70 112.5 50 amperes at 65V AC/DC
300 amperes at 24V DC		 0.1243
SEF 1.50 1.5 A 125V 0.113 220 0.725 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 2.50 2.5 A 125V 0.0384 180 1.182 50A at 125V AC/DC
300A at 32V DC		 0.1243
SEF 3.50 3.5 A 125V 0.0268 150 2.055 50A at 125V AC/DC
300A at 32V DC		 0.1243

Quick details

Attribute Value
Current Rating 1 A
Voltage Rating 125 V
Fuse Speed F
Fuse Size 6.1 x 2.6 x 2.6mm
Overall Length 6.1mm
Body Material Ceramic
High Rupture Capacity Yes

Breaking Capacity at

Max Voltage Rating

35 A @ 125 V ac,

50 A @ 125 V ac/dc,

300 A @ 32 V dc

Max Operating

Temperature

 +125°C
Resistance 0.1407Ω
Series SEF

Min Operating

Temperature

 -55°C
Material

Body: Ceramic

Terminations: Silver Plated Brass Caps
Packaging

1000 Fuses in 7 inches dia. reel.

12mm wide tape, per EIA Standard 481

Interrupting Rating

62mA~8A: 50 amperes at 125V AC/DC 300 amperes at 32V DC

10A: 35 amperes at 125V AC 50 amperes at 125V AC/DC 300 amperes at 32V DC

12A~15A: 50 amperes at 65V AC/DC 200 amperes at 86V AC/DC 300 amperes at 24V DC

Environmental Specification

Operating Temperature -55°C to +125°C

Vibration MIL-STD-202G, Method 201 (10-55 Hz, 0.06 inch, total excursion)

Salt Spray MIL-STD-202G, Method 101, Test Condition B (48Hrs)

Insulation Resistance MIL-STD-202G, Method 302, Test Condition A

Resistance to Solder Heat MIL-STD-202G, Method 210, Test Condition B (10sec, at 260°C)

Thermal Shock: MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C)
