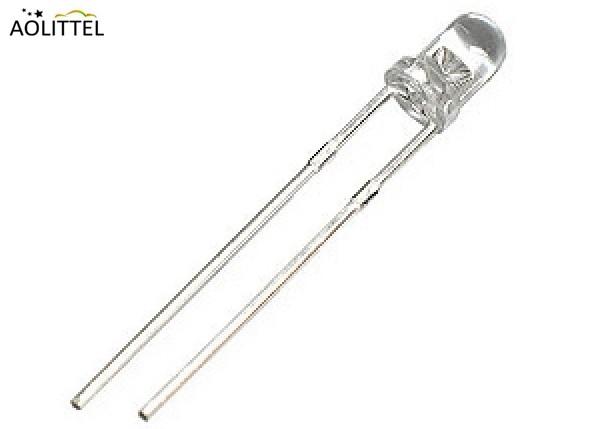

3mm Round Top LED Ultra Bright RGB White Clear Plug-in Light Emitting Diodes LED

Overview

Ao littel Light Emitting Diodes LED are available in a variety of sizes and shapes including the 3mm LED. We produce a wide assortment of the most common models of 3mm, 5mm, 8mm and 10mm models.

The size refers to the outside diameter of the LED. 3mm LEDs are the smallest and used in tight-fitting applications, while 8mm and 10mm models are used where you want to get out as much light as possible.

Super bright 3mm LEDs are extremely bright good for use in your projects, illuminations, headlamps, spotlights, car lighting, models.

______________________________________________________________________________ Download________

3mm LEDs can be used anywhere where you need low power, high-intensity reliable lighting or indication. They go easily into a breadboard and will add that extra zing to your project.

Features

* Mechanically and spectrally matchend to the phototransistor.

* Lead (Pb) free product – RoHS compliant.
* Low power consumption, Good angle directivity

* High efficiency.
* Versatile mounting on p.c. board or panel.
* I.C. compatible/low current requirement.
* Popular T-1 diameter.

* Multi – angle options

* Applicable to wave - soldering technique

* Radiant Intensity(mW/sr): 75@50mA

* Viewing angle 30°

Application

Electronic Whiteboard
Induction device
Electronic surveillance device

Dimension

NOTES:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm(.010") unless otherwise noted.
3. Protruded resin under flange is 1.0mm(.04") max.
4. Lead spacing is measured where the leads emerge from the package.
5. Specifications are subject to change without notice.

Absolute Maximum Ratings at Ta=25℃

Electrical / Optical Characteristics at Ta=25℃

NOTE:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2. The Iv guarantee should be added ±15﹪tolerance.

3. Iv classification code is marked on each packing bag.

4. θ1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

5. The chromaticity coordinates (x, y) is derived from the 1931 CIE chromaticity diagram.

6. Precautions in handling:

• When soldering, leave 2mm of minimum clearance from the resin to the soldering point.

• Dipping the resin to solder must be avoided.

• Correcting the soldered position after soldering must be avoided.

• In soldering, do not apply any stress to the lead frame particularly when heated.

• Lead forming must be done before soldering.

• It is necessary to cut the lead frame at normal temperature.

7. Caution in ESD: Static Electricity and surge damages the LED. It is recommend to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.

Typical Electrical / Optical Characteristics Curves

(25℃ Ambient Temperature Unless Otherwise Noted)

Package

i 1,000 pcs per packing bag

ii 10 packing bags per inner carton Total 10,000 pcs per inner carton

iii 8 Inner cartons per outer carton Total 80,000 pcs per outer carton
