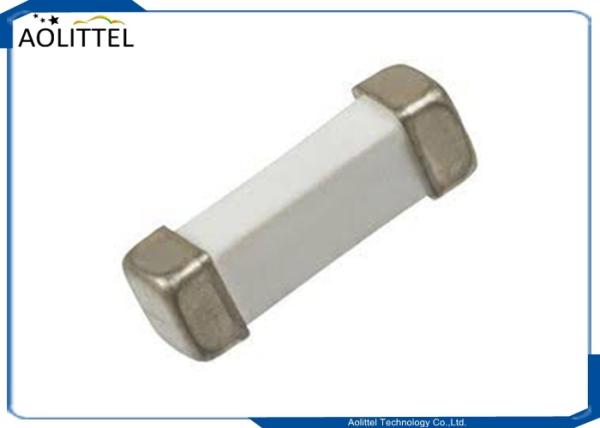

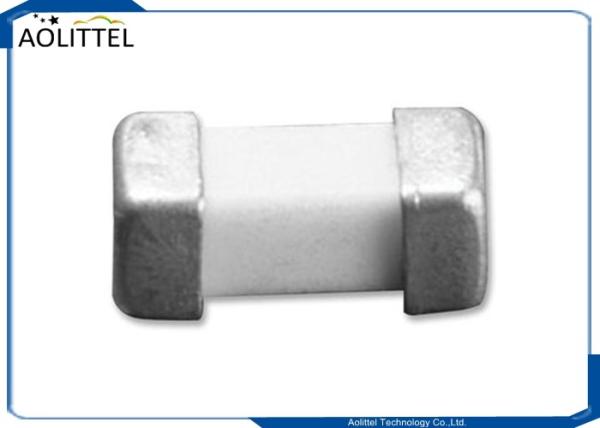

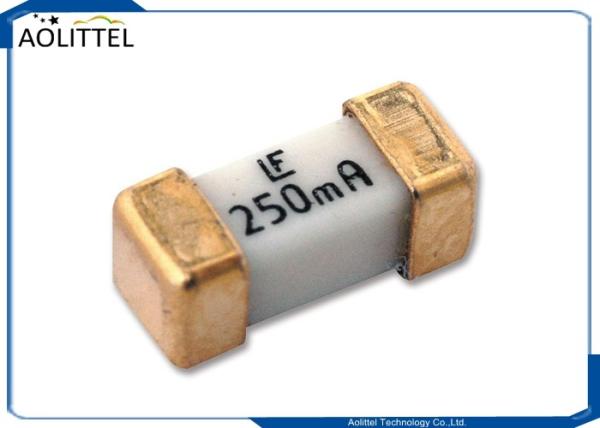

451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
Specifications
Brand Name :
Littelfuse
Model Number :
451/453
Certification :
ROHS,HF,UL,CUL,CSA,CE,PSE
Place of Origin :
Philipines
MOQ :
1000PCS
Price :
Inquiry
Payment Terms :
T/T
Supply Ability :
10000000PCS Per Month
Delivery Time :
7-10 Workdays
Packaging Details :
Tape in reel, 1000pcs or 5000pcs per reel
Name :
Surface Mount Fuse 2410
Size :
6125/1808
Speed :
Fast Blow
Current Rating :
1A
Voltage Rating AC :
125 VAC
Voltage Rating DC :
125 VDC
Interrupt Rating :
300 A at 32 VDC
Resistance :
78 mOhms
Description

CE Certificated 451 453 Series NANO2 Very Fast-Acting Subminiature Surface Mount Fuse 2410 6125 1A 125VAC

Part Numbering System

0451 001. M R L

0451 : Series-451 = Gold / SnPb / Silver Plated Caps 453 = Silver Plated Caps

001. : AMP Code : Refer to Electrical characteristics table

M : QUANTITY Code : M = 1000 pcs N = 5000 pcs

R : Package Code -R = Tape and Reel

L: L-RoHS Compliant & Halogen Free (Gold Plated Caps) ; SN-RoHS Compliant & Halogen Free (Sn-dipped Caps)

NOTE: “L” suffix applies to 451 series only - 451 series may be ordered as either “RoHS and HF” (“L” suffix) or non-RoHS (no suffix) version. - 453 series is available only as RoHS compliant version and does not require “L” suffix. Please do not include “L” suffix within 453 series ordering instructions.

Dimensions

451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2

Electrical Characteristics for Series

% of Ampere Rating Ampere Rating Opening Time
100% 0.062 – 20 4 hours, Minimum
200% 0.062 – 10 5 sec., Maximum
12 – 20 20 sec., Maximum

Packaging

Packaging Option Packaging Specification Quantity Quantity & Packaging Code
12mm Tape and Reel EIA RS-481-2 (IEC 286, part 3) 1000 NR
12mm Tape and Reel EIA RS-481-2 (IEC 286, part 3) 5000 MR

Agency Approvals

AGENCY AGENCY FILE NUMBER AMP RANGE
UL E10480 6.3A - 20A
CSA 29862 0.062A - 15A
PSE

NBK030205-E10480A/B

NBK101105-E184655

1A - 5A

6.3A - 10A
CUL E10480 0.062A - 5A

Description

The Nano2® SMF Fuse is a very small, Wire-in-Air (WIA) square shape surface mount fuse that was designed for secondary side circuit over-current protection applications. These fuses are designed for PCB using surface mount technology.

Features

• Very fast-acting • Small size • Wide range of current rating available (0.062A to 20A) • Wide operating temperature range • Low temperature rerating • RoHS compliant and Halogen Free

Application

• Notebook PC • LCD/PDP TV • LCD monitor • LCD/PDP panel • LCD backlight inverter • Portable DVD player • Power supply • Networking • PC server • Cooling fan system • Storage system • Telecom system • Wireless basestation • White goods • Game console • Office Automation equipment • Battery charging circuit protection • Industrial equipment

451/453 Series Fuse Datasheet

451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2451 453 Series NANO2 Very Fast - Acting Surface Mount Fuse 2410 6125 1A 125VAC 0.50A - 5.0A 2
