1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card
Specifications
Brand Name :
AOLITTEL
Model Number :
CKOB1608-47uH/M
Certification :
ISO9001 2008/QNA
Place of Origin :
CHINA
MOQ :
2000PCS
Payment Terms :
T/T, Western Union
Supply Ability :
2000,000,000PCS
Delivery Time :
7-10 Workdays
Packaging Details :
Tape In Reel ,2000PCS/Reel
Name :
SMD Power Inductor
INDUCTANCE :
47uH±20%
DCR (Max) :
1.00 Ohm
IDC (Max) :
0.5A
TEST FREQ :
100kHZ
Diameter :
4.5mm
Dimension :
8x4.8x3.5mm
Operating Temperature :
-25℃ ~ +105℃
Package :
Tape in reel
MPQ :
2000pcs Per Reel
Description

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

Products Series: Axial Leaded Inductor, Choke Inductor, Power Inductor, IFT Coil, Toroidal Inductor, Transformer & Line Filter, Multilayer Inductor, Air Coil, Chip Bead etc.


Production Ability: 1500 Employees; 70000㎡ Workshop; Monthly Capacity: 260 Million pieces totally


R&D Ability: 73 R&D Engineer and 35 QE, Independent Research and Development Equipment


Marketing Development: Global Top 500 Companies, Large-scale enterprises in China and abroad, Listed companies and famous enterprises in electronic industry.


Quality Control and Standards: Cenker is operating according to international standards all the time, and has gotten the approval of ISO9001:2008 Product Quality Certificate and ISO14001:2004 Environmental Management System Certificate and TS16949:2009.

SHAPES AND DIMENSIONS (Unit:mm)

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

TYPE A (Max) B (Max) C (Max) D E F G H J K
CKOB1608 8.0 4.8 3.5 4.5 1.2 3.9 1.15 0.95 3.83 1.16
CKOB1306 14.0 10.0 5.2 8.4 2.54 7.6 2.54 2.92 7.37 2.79
CKOB1312 14.0 10.0 11.5 8.4 2.54 7.6 2.54 2.92 7.37 2.79
CKOB1808 19.5 15.5 7.0 12.7 2.7 12.7 2.54 2.92 13.10

2.79

Specification

1608 series

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

1306 series

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

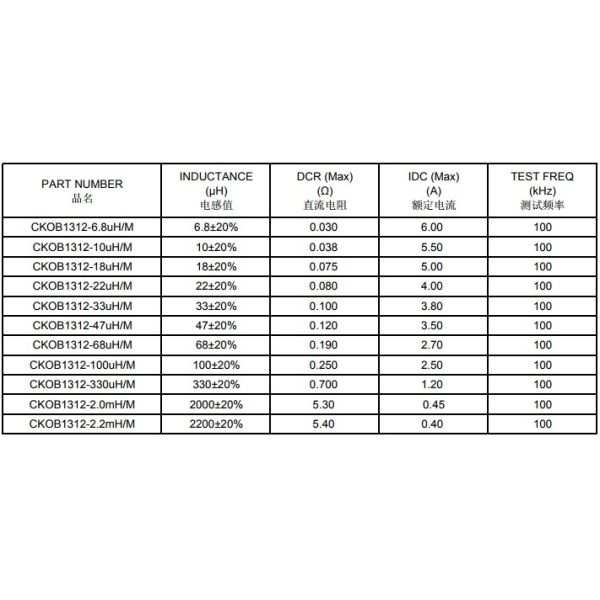

1312 series

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

1808 series

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

Remark:

● Inductance Tested at 100kHz,0.25Vrms (20℃)

● IDC: DC current at which the inductance drops approximate 20% from its value without current

● Operating Temperature : -25℃ ~ +105℃

● Measure Equipment:

INDUCTANCE : Agilent HP-4284A , HP-4285A

IDC : Agilent HP-4284A+HP-42841A

DCR : CHEN HWA 502A

Pakcage

1608 1306 1312 1808 Low Reslstance Surface Mount SMD Power Inductor 47uH 20% For VGA Display Card

Features

The Sureface Mount Inductors are designed for the smallest possible size and high performance. They are with high energy storage and very Low reslstance making them the ideal inductors for DC-DC conversion in the following applications.Surface mount power inductors for applications ranging from power supply to power converters. Core types include ferrite and pressed iron powder with topologies including: non-shielded, shielded, pressed iron powder, ferrite coated, and wirewound chip inductors.

Application

VGA display card,Notebook Computers,PDAs,Step-up and step-down converters. Flash Memory programmers,etc.

Our Advantages

TDK experience engineer
Over 10 years ferrite material experience
Over 7 years in automotive customer
Executive team led by engineers
Financial stability, strong balance sheet
Corporate Social Responsibility
Leadership in design and manufacture of automation
World Class DPPM(some of parts passed AEC-Q200)
Rapid response to customer inquiry and corrective action
Powder development increased -provides a high performance (high current, low DCR) to our customers.
