Small Volume 10W Full Voltage Direct ODM Solutions AC ESOP-8 PDFN-8 Linear LED Driver 5-60mA
Small Volume 10W Full Voltage Direct ODM Solutions AC ESOP-8 PDFN-8 Linear LED Driver 5-60mA
Small Volume 10W Full Voltage Direct ODM Solutions AC ESOP-8 PDFN-8 Linear LED Driver 5-60mA
Small Volume 10W Full Voltage Direct ODM Solutions AC ESOP-8 PDFN-8 Linear LED Driver 5-60mA
Specifications
Brand Name :
AOLITTEL
Model Number :
F7112+F2552
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100,000,000PCS/MONTH
Delivery Time :
2 Weeks
Packaging Details :
Bulk
Name :
10W Full Voltage Linear LED Driver
Current :
5-60mA
Voltage :
110V-260V
Frequency :
50-60HZ
Protection :
Overvoltage overtemperature
Package :
ESOP-8 PDFN-8
Description

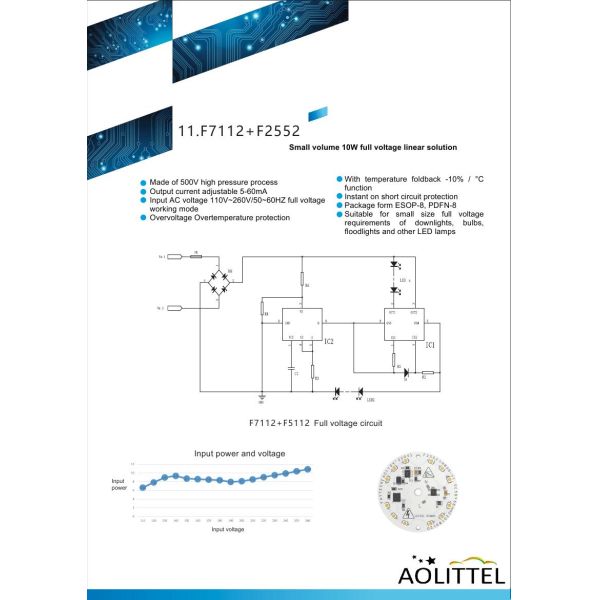

Small Volume 10W Full Voltage Direct AC ESOP-8 PDFN-8 Linear LED Driver ODM Solutions 5-60mA

Main Features

Made of 500V high pressure process

Output current adjustable 5-60mA

Input AC voltage 110V~260V/50~60HZ full voltage working mode

Overvoltage Overtemperature protection

With temperature foldback -10% / °C function

Instant on short circuit protection

Package form ESOP-8, PDFN-8

Suitable for small size full voltage requirements of downlights, bulbs, floodlights and other LED lamps

Small Volume 10W Full Voltage Direct ODM Solutions AC ESOP-8 PDFN-8 Linear LED Driver 5-60mA

F Linear Series Chip Selection Table

NO. P/N Function & Features MOSFET I(mA) LED VF value Package
1 F5111 Constant current temperature reentry, can design high P ripple and low P ripple free, can be used in parallel with high power Internal 60 120/252V SOT-89
2 F5112 100 TP-252
3 F7112 Constant power, temperature foldback, PWM dimming, high and low PFC 100 ESOP-8
4 F7110 High-power linear drive, analog DC dimming, temperature foldback, voltage protection, can be used to design full-voltage operation mode External 350 SOP-8
5 F7722 SCR dimming, can design flat panel lights, bulb lamps, filament lamps E14, E27 and other 12W thyristor dimming Internal 100 ESOP-8
6 F7522 1.VF half-pressure design, input width (160-270VAC) work 2.110/220VAC high P ripple-free design 100 100-150V
7 F2552 1. With F7112 full voltage 12W design 2.VF half voltage rippleless design 3.110/220VAC high P ripple free design 100 120-252 PDFN-8
8 F2722/1 Constant power type can be used in parallel 100 ESOP-8

F Linear Series Chip Matching Selection Table

NO. P/N Function&Features MOSFET I(mA) LED VF value Package
1 3*F7112 Full voltage lamps less than 15W, constant power, temperature reentry Internal 60-100 126/126 ESOP-8
2 3*F7110 High power full voltage constant power high voltage linear scheme External 350 126/126 ESOP-8
3 F7110+F5111/2 High-power linear solution that meets certification requirements External 350 252 SOP-8+TO-252
4 F7111/2+F2552 Full voltage lamps less than 10W, no constant power, temperature reentry Internal 60-100 126/126 PDFN+ESOP+8

Why choose us

AOLITTEL TECHNOLOGY CO., LTD. set up vigorous, proactive and innovative R&D and management team for professional design of LED driver chips,focusing on the development, design and application of LED driver chips. We have two R&D centers in East China and South China,Aolittel has formed strategic cooperation & Industry Alliance with the 13th Research Institute of China Electronics Technology Group Corporation, the Software Research Institute of the Chinese Academy of Sciences, the National Semiconductor Lighting Engineering R&D , also maintained close cooperation in chip development, design and technology applications. communication.
