Automatic water liquid sauce milk oil soybean milk packing machine
Automatic water liquid sauce milk oil soybean milk packing machine
Specifications
Brand Name :
Aotong
Model Number :
AT-420/520/620
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
USD12000-16000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500SET/YEAR
Delivery Time :
30-40DAYS
Packaging Details :
CASE
Material :
paint
material :
SS
Description

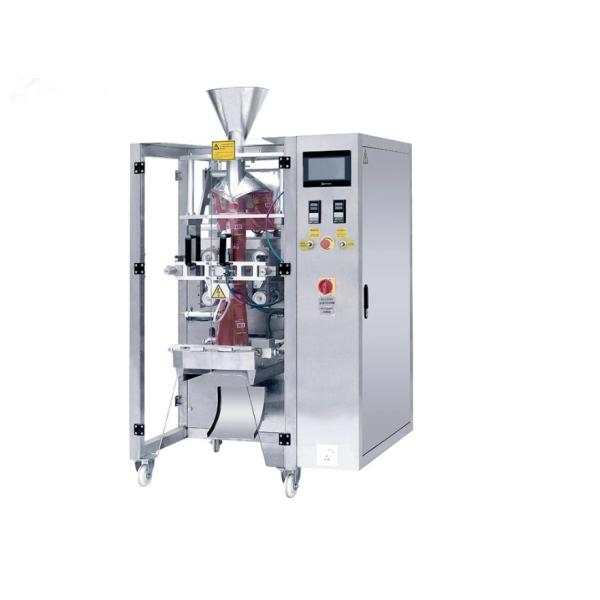

Automatic water liquid sauce milk oil soybean milk packing machine

Main Machine Parameter
Items Content
Mole AT-420
Packing speed 5-80 bag/min
Bag size (Width)60-200mm (Length)50-300mm

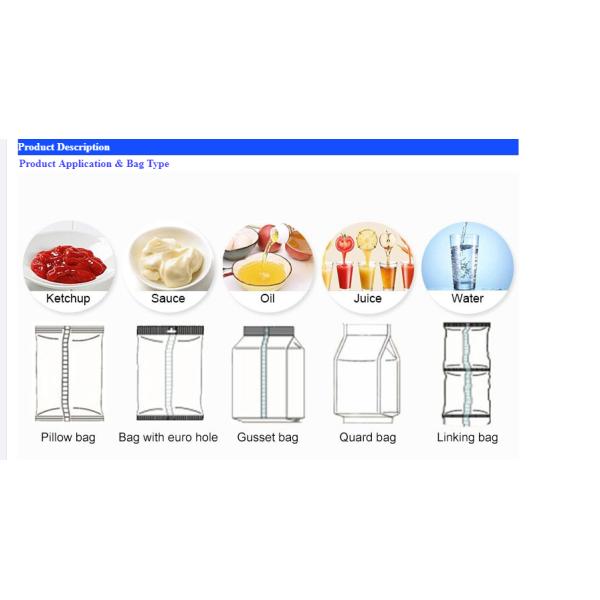

Bag making mode Pillow-type bag, standing bag, punch hold and connect
Range of measuring 150-1300ml
The maximum width of packing film 420mm
Thickness of film 0.04-0.10mm
Air consumption 400L/min 0.7×105Pa
Main power/voltage 2.5KW/220V 50-60Hz
Dimension 1400×950×1600mm
The weight of switchboard 450kg
Film material POPP/CPP,POPP/PE,PET/VMPET/PE,PET/AL/PE NY/PE,PET/PET AND SO ON.

Automatic water liquid sauce milk oil soybean milk packing machine

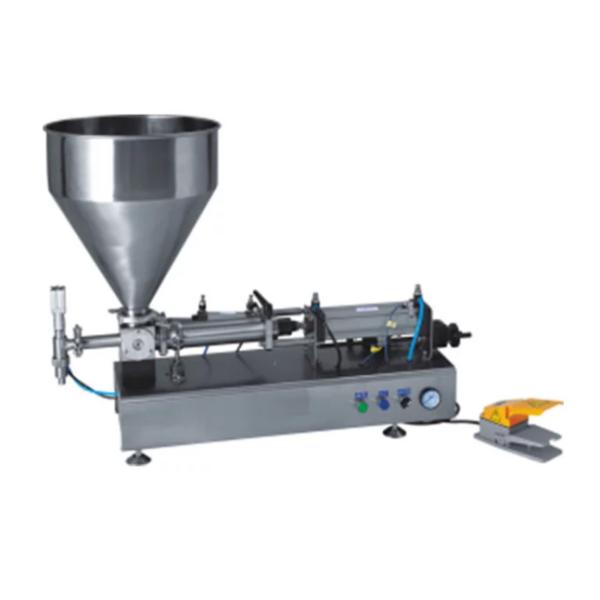

Airtac/Festo Parameter
Packing Modle Filling Range Optimal Filling Range Filling Error Output(min) Other Parameter
AT-100 10-100ml 20-100ml ±0.5% 20~38

Voltage:AC110/220,50Hz

Power:25W

Air pressure:0.4~6MPa

Air consumption:0.28~0.7 m3/min
AT-250 25-250ml 50-250ml ±0.5% 18~30
AT-500 50-500ml 100-500ml ±0.5% 15~22
AT-1000 100-1000ml 200-1000ml ±0.5% 10~18
AT-2000 200-2000ml 400-2000ml ±0.5% 7~13
AT-5000 500-5000ml 1000-5000ml ±0.5% 5~8

Automatic water liquid sauce milk oil soybean milk packing machine

Automatic water liquid sauce milk oil soybean milk packing machine

Automatic water liquid sauce milk oil soybean milk packing machine

Automatic water liquid sauce milk oil soybean milk packing machine
