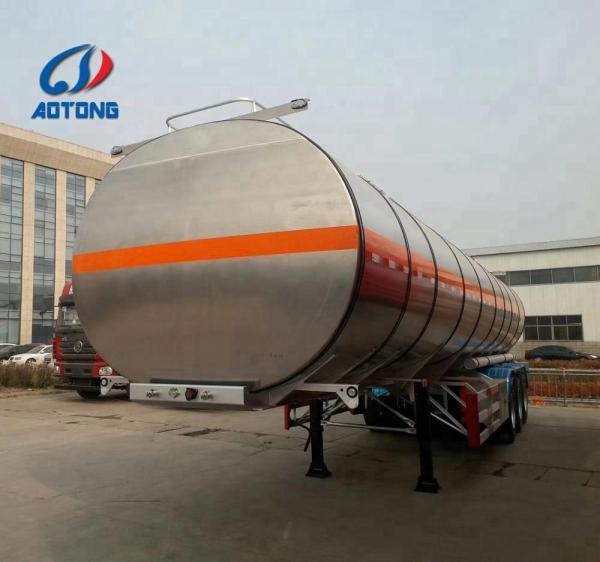

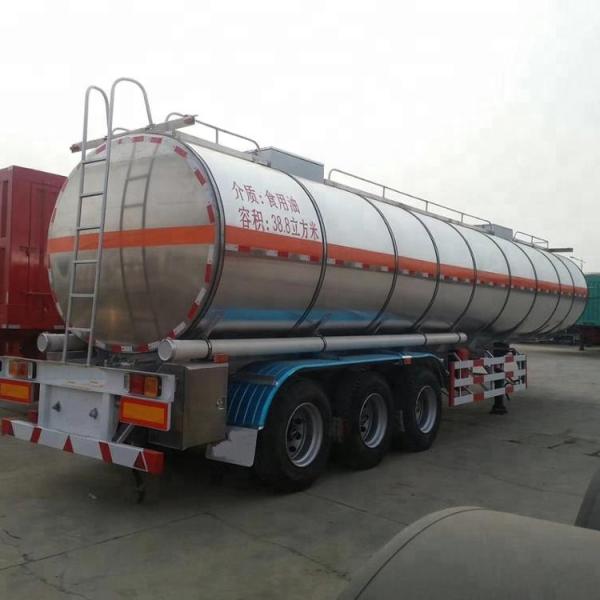

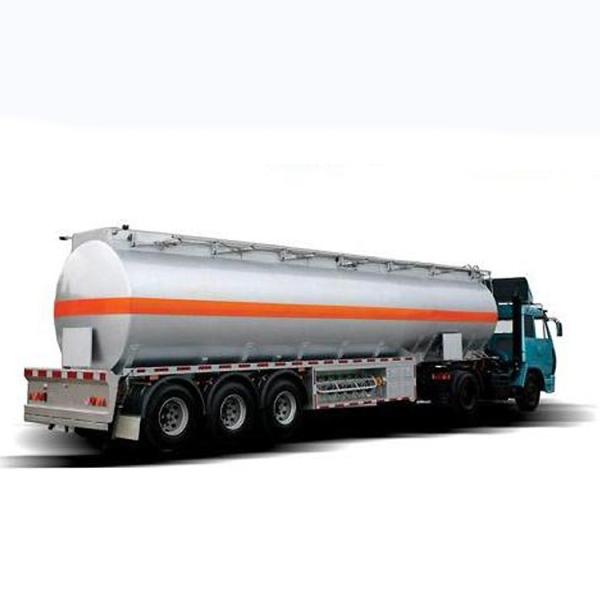

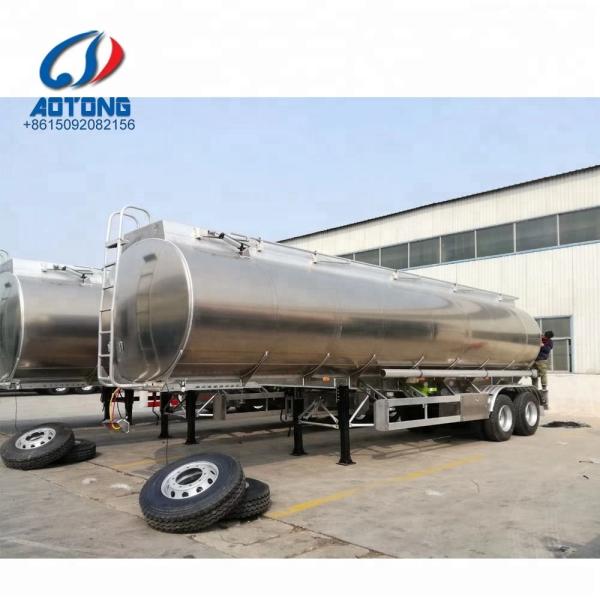

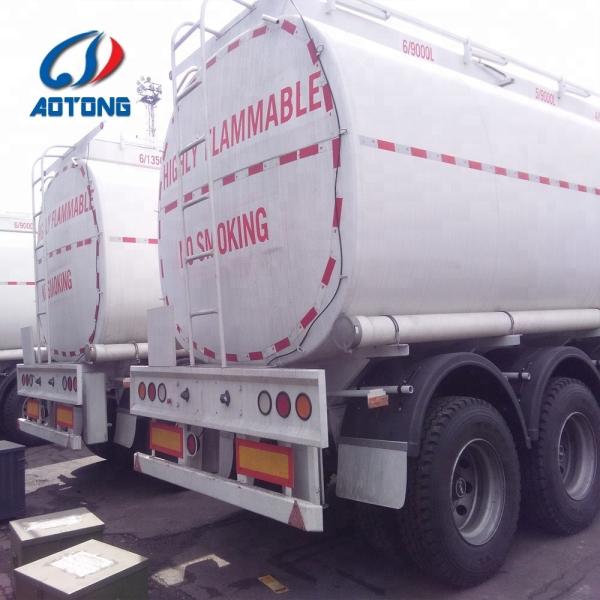

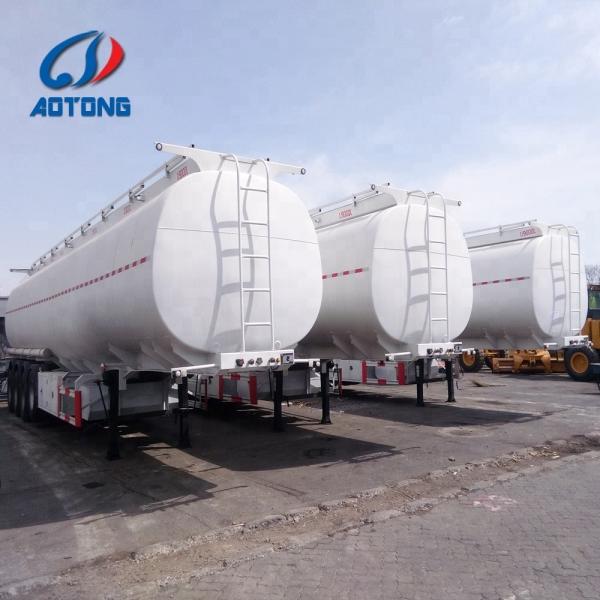

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank
Specifications
Place of Origin :
CHINA
Brand Name :
AOTONG
Packaging Details :
In nude,Polish with water wax before shipment
1 By 40ft/45ft/40fr container
2 By bulk /roro ship
3 As your requirments.
Professional package saves freight cost for customers
Guarantee the firmness and safety of the goods
Supply Ability :
500 Unit/Units per Month aluminum tanker trailer
Price :
$19,000.00/units 1-2 units
Certification :
ISO,CCC
MOQ :
1 UNIT
Delivery Time :
25 days
Use :
Other Trailers
Max Payload :
50ton
Size :
12700*2498*3750(mm)
Function :
Transport Fuel, Oil, Milk, Water
Axle :
3x13ton FUWA Brand
Tire :
Double Coin
Suspension :
Leaf Spring Suspension/Air Suspension
Brake system :
Dual Line Air Braking System
Material :
Aluminium Alloy
King pin :
2"(50mm)or3.5"(90mm) JOST
Color :
Optional
OE NO. :
Requirement
Port :
Tianjin/ Lianyungang/Qingdao/Shanhai port
Payment Terms :
TT
Description

3-Axle Aluminum Fuel/Edible Oil Tanker Truck Semi Trailer/Tank Trailer (Cylindrical-Type Tank)

Product Description

Application:

1. This type of aluminum alloy tank semi trailers is applicable for the transportations of the milk,water,gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-oil products such as alcohol, aldehyde, benzene, liquid substances.

2. The capacity is for 50tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical TankFuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical TankFuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical TankFuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

1. Model: LAT9404GRY

2.18 months guarantee system
3.High quality and service
4.Practical and Economical
5.3C ISO certification
6. Small order can be accepted.

7.more than 14 years experience manufacturer

Type Aluminum Fuel Tank(Cylindrical-Type Tank)
Model LAT9404GRY Tank material Aluminum alloy
Length(mm) 12700 Approach/departure angle(°) -/34
Width(mm) 2498 Front overhang(mm) -
Height(mm) 3750 Rear overhang(mm) 1430
Capacity(m 3 ) 49.8 Wheelbase(mm) 7000/1360/1360
Loading mass(kg) 33200 Trace(F/R) (mm) 2040
Curb weight(kg) 6800 Axle number 3
Tire Model 12R22.5-18PR
1100R20-18PR		 Tire number 12
ABS Model CM2XL-4S/2M Steel Plate spring (pics) -
Tank thickness(mm) 5.5/6 Head thickness(mm) 6
Warning system Each side and rear with reflecting mark

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

Product Display

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

Related Products

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

Packaging & Shipping

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

Company Information

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

Our Services

Fuel/Edible Oil Tanker Semi Trailer with Aluminium Alloy 3 Axles Cylindrical Tank

THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

MAIN FRAME

FRAME

1 YEAR

RUNNING GEAR

AXLE

6 MONTHS

SUSPENSION

6 MONTHS

AXLE BEARING

3 MONTHS

KING PIN

1 YEAR

WHEEL HUB

3 MONTHS

BALANCE ARM

3 MONTHS

TIRE

6 MONTHS

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

BRAKING DEVICE

BRAKE DRUM

3 MONTHS

SUPPORT DEVICE

LANDING GEAR

6 MONTHS

BRKE CHAMBER

3 MONTHS

SPARE WHEEL CARRIER

6 MONTHS

AIR RESERVOIR

6 MONTHS

ITEM NAME

WARRANTY

OTHERS

LEAF SPRING

3 MONTHS

BRAKE CHAMBER DIAPHRAGM

3 MONTHS

EMERGENCY RELAY VALVE

3 MONTHS

BRAKE SHOE

3 MONTHS

RELAY VALVE

3 MONTHS
