Specifications
Brand Name :
AOTONG
Place of Origin :
CHINA
Certification :
ISO,CCC
MOQ :
1 UNIT
Delivery Time :
25 days
Payment Terms :
TT
Electric :
24V 7ways
Loading Capacity :
30T~ 60T
Usage :
Transporting Bulk Goods Such As Sand, Gravel, Coal, Etc.
Type :
Semi-Trailer
Brake System :
Dual Line Air Brake System
Suspension :
Mechanical Or Air Suspension
Axle :
FUWA/BPW Optional
Description

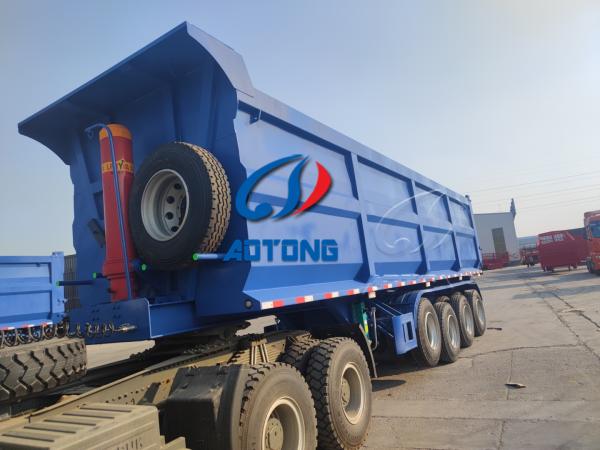

Product Description:

Suitable for transporting a wide range of materials, including sand, gravel, coal, and construction waste. The trailer's suspension can be either mechanical or air suspension, depending on the customer's preference and needs.

Provide maximum capacity for loading and unloading goods. The end tipper truck trailer is equipped with a hydraulic system that enables it to lift and dump the cargo automatically. This feature saves time and increases efficiency in the transportation process.

The Dump/Tipping Semi Trailer product is a reliable and durable transportation solution that meets the needs of various industries. Its high loading capacity and efficient dumping system make it an ideal choice for businesses looking for a cost-effective way to transport bulk goods.

Features:

This Dump/Tipping Semi Trailer is perfect for hauling heavy loads with a optional loading capacity. It comes with your choice of mechanical or air suspension, making it versatile for a variety of uses. The dual line air brake system ensures safe and reliable braking in any conditions.

Technical Parameters:

Outside Dimensions (L*W*H) (6000-17000)*2500*1550mm
Rated Load 35T-80T
Tare Weight 7000 kg
Wheel Base 8390+1310+1310(mm)
Tires specification
No. of tires
Spare tire carriers

Axles

Brand
No. of axles:
Axle-load
Wheel rim 7.50-20 rim or 8.00
Suspension rigid suspension,10 pcs leaf-spring
Brakes brand
Brake chamber
System
Main Beam material
specification
Cross Beam material Q235B
Side beam Channel steel
Plate form Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)
King Pin 50# or 90#
Landing gear 28Ton
Accessory One tooling box with a set of standard trailer tool
Voltage 24V
Receptacle 7 ways (7 wire harness)

Applications:

The Dump/Tipping Semi Trailer is available in different loading capacities, making it suitable for different types of goods and materials.

The Dump/Tipping Semi Trailer is a versatile semi-trailer that can be used in various occasions and scenarios. For instance, it is commonly used in the construction industry for transporting building materials, such as sand, gravel, and bricks. The trailer can also be used in the mining industry for carrying ores, minerals, and other heavy materials. Additionally, it is suitable for transporting agricultural products, such as grain, fertilizers, and animal feed.

The trailer is also designed to be self-tipping, which means that it can be easily unloaded without the need for external assistance. This feature makes it an ideal choice for customers who need a side tipper semi trailer that can be used in tight spaces and difficult terrain.

FAQ:

Q: What is the brand name of the dump/tipping semi trailer?

A: The brand name of the dump/tipping semi trailer is AOTONG.

Q: Where is the dump/tipping semi trailer manufactured?

A: The dump/tipping semi trailer is manufactured in China.

Q: What certifications does the dump/tipping semi trailer have?

A: The dump/tipping semi trailer has ISO and CCC certifications.

Q: What is the minimum order quantity for the dump/tipping semi trailer?

A: The minimum order quantity for the dump/tipping semi trailer is 1 unit.

Q: What are the payment terms for the dump/tipping semi trailer?

A: The payment terms for the dump/tipping semi trailer are TT.

Q: How long does it take for delivery of the dump/tipping semi trailer?

A: The delivery time for the dump/tipping semi trailer is 25 days.
