Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
40 feet,12.5 m
Max Payload :
50 tons
Place of Origin :
CHINA
Brand Name :
AOTONG
Axle :
13 ton outboard type drum ,bolt 10-M22*1.5,PCD335,BRAKE PAD 220MM
Suspension :
American type suspension,wide hanger
Landing Gear :
28 ton landing gear
Loading capacity :
50 tons
Main Beam :
H type 500 height, 18+10+20 thickness
Brake System :
Dual Lines Pneumatic Brake System
King pin :
2 inch, 50 mm type
Tire :
245/70r19.5
Leaf Spring :
Wide spring
Painting :
anti rust blast, 3 layer painting
Price :
$15,500.00/units >=1 units
Certification :
ISO,CCC
Packaging Details :
Exporting Standard
MOQ :
1 UNIT
Delivery Time :
25 days
Payment Terms :
TT
Description
Product Description
Customize the semi trailer according to your requirements.Professional semi trailer manufacturer with more tahan 20 years of production experience serve for you —AOTONG
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
4 axles lowbed semi trailer
Brand
Aotong
Model
LAT9321TDP
Size
14000*3000*1100 (mm)
Payload
80000KG
Main beam
Heavy duty I beam.
Side beam
250mm I beam
Plate
5mm checked plate
Ladder
Mechanical spring ladder or hydraulic ladder
Axles
4 * 13ton capacity (Brand optional)
Suspension
Mechanical suspension (Air suspension optional)
Leaf spring
10pcs
Tire
12R22.5 / 11.00R20 16pcs (Other size optional)
Rim
9.00-22.5 / 11.00R20 16pcs (Other size optional)
Kin pin
2’’/3.5’’ bolt type
Landing gear
28 Ton two speed
Braking system
Double air chamber ,brake valve,45L air tanks ;ABS optional
Electrical
LED light , 7 ways ,24V
Painting
Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice
Accessory
One tooling box with a set of standard trailer tool
Usage
Is applicable for the transportations of the mechanical equipment,
large objects, highway construction equipment, large tanks,
power plant equipment or machine, and all sorts of steel products.
Other Descriptions
The cargo platform is lower than others,
is applicable for unsound road condition,
ensuring the stablenessof the transportation.
Other Specifications
It's concave structured with tyre appeared style,
the height of the cargo's carrying platform from ground is 900mm,
(ladders belong to optional components), with the overall height of 1710 mm
Remark
We can design model according to client's requirement
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
AOTONG low loader trailer can satisfy the concentrated force, the anti bump and the distortion resistance.
AOTONG make sure that lowbed semi trailer can meet load requirements on different kind of roads and has a long service life.
We start from every detail, carefully craft to customize your high-quality semi trailer.
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design！
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Popular Colors and High Quality Painting
We use high quality paint to make our products beautiful, seamless, dustproof and easy to clean.KTL electrophoresis + powder
spraying, instead of traditional paint process to make a good bond with a solid base, good wear resistance, durability and has
good anti-corrosion effect and long paint life.
Which color do you want to customize, click to get more!
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Related Products
We also have rich production experience in the following models.
If this item is not what you like, then we suggest these items：
Click to get the models that have been shipped to your country！
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
2 axles lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
3 axles lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
4 axles lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Multi axles lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Extendable lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Detachable gooseneck semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Modular trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Multi line axle lowbed semi trailer
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
lowbed semi trailer with side wall

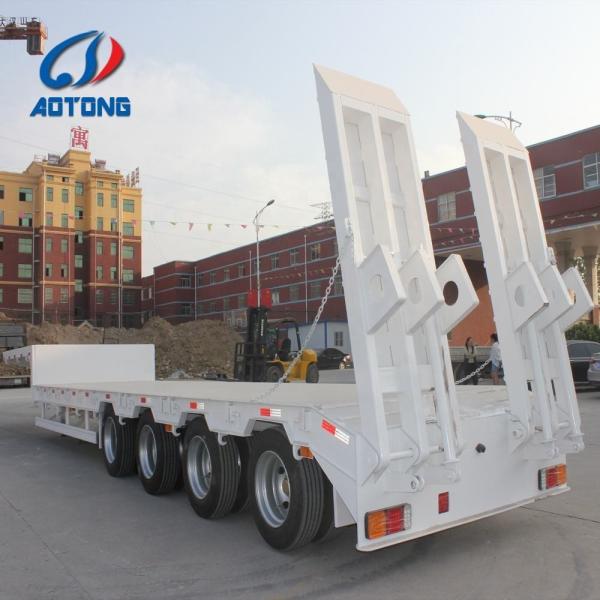

Our lowbed semi trailer ladder has a rib design to increase its load carrying capacity.
A variety of ladder can be selected, ordinary ladder, spring ladder, hydraulic ladder, hydraulic folding ladder. The spring ladder can be lowered by its own weight. Hydraulic ladder reduces labor strength. Folding the ladder will lower the up and down slope.
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Lowbed Semi-Trailer for Heavy Road Equipment 4 Axles 12.5m 40 Feet Tire 245/70r19.5
Packing&Shipping
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
