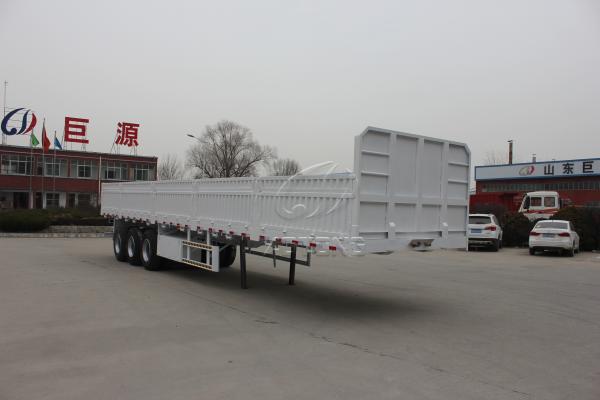

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
12500-13000*2500*600-1200mm
Max Payload :
80T
Place of Origin :
CHINA
Brand Name :
AOTONG
Function :
cargo transport
Axle :
FUWA BPW etc
Tire :
11R22.5 or optional
Suspension :
Mechanical/air suspension
Brake System :
Dual Line Braking System
King pin :
2"(50mm)or3.5"(90mm)
Landing Gear :
Standard 28 Ton
Electric :
24V 7 ways
Color :
Custom's Requirement
Certification :
ISO,CCC
Packaging Details :
Exporting Standard
Port :
Qingdao
Supply Ability :
300 Set/Sets per Month
MOQ :
1 UNIT
Price :
$13,000.00/sets >=3 sets
Delivery Time :
25 days
Payment Terms :
TT
Description
Semi Trailer

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

AOTONG cargo board sidewall semi trailer side tailgate semi truck trailer producer

Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo

Basic Specifications

sidewall semi trailer

Overall Dimensions

12500-13000*2500*600-1000mm or optional

Related load

50 tons

Tare weight

6000KGS
Running Gear
Axle

13T axle; 2/3 pieces
Tire

12.00R22.5; 8/12 pieces Triangle
Rim

8.5-22.5; 8/12 pieces
Suspension System

10pieces leaf spring 10mm
Brake System

Brake- double wheel cylinder with single diaphragm

-Wabco mode; with load censer valve and trailer Triplex valve w/Quick release valve system assembly

-standard emergency and service line air tubs assembly

-Trailer lock valve assembly

Under Frame

specially I beam disagn for back side tipper
Outer frame

steel made conic edge
Cross member

reinforce with 42cm gap
Wheelbase 1310mm
Kingpin 2’ or 3.5’ interchangeable
Landing gear Landing gear with 30T each other /brand jost
Electrical System tail & reverse light reflectors operate with 24 volt circute
Light and reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting Three coats painting; Any color will be available
Accessories
Toolbox One tool box with a set of standard trailer tools
Spare tire carrier one or two pieces
Fender Plastic fenders
Container twistlocks 8/12 pieces

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo CarrierSide Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Packaging & Shipping

1. We will spary wax for the flatbed trailer before shipment against saltwater corrosion.

2. Regarding to the shipping method, you could choose which one is better for you, by container vessel, Ro-Ro vessel or by bulk vessel.

3. We provide lowest shipping freight based on the long-term cooperation relationship with ship agency.

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

FAQ

  1. Creative design for your own special transportation program.
  2. High tensile steel provides the strongest performance of semi trailer.
  3. Automatic submerged arc welding and straightening machines make best main beam.
  4. One coat blasting plus two coats polyester painting.
  5. Standard and Brands of semi trailer parts can be chosen according to different requests.
  6. Necessary accessories offered.
Company & Factory

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Welcome to visit our factory and we will pick you up at airport!

Established in 1992, our factory is specialized in the manufacture of flatbed trailer. Located in Liangshan,Jining. We enjoy convenient access to major transportation networks. Our factory covers an area of 15,000 square meters and has around 500 staff members. Furthermore, all our flatbed trailer are manufactured with advanced equipments and strict QC procedure in order to ensure high quality.

Wih stable and timely supply, credible quality and sincere service, our flatbed trailer sell well in both domestic and overseas market...

Production Machinery:

Machine Name Brand & Model No. Quantity Number of Year(s) Used
CNC Flame Plasma Cutting Machine GS 2 4.0
Press Machine JC21-160 4 4.0
Hydraulic Plate Bender WC67Y-200/4000 2 3.0
Hydraulic Pendulum Plate Shears QC12Y-12*3200 2 3.0
Drilling Machine with Jointed Arm ZN3050*16 4 4.0
Shaping Machine BS6065 2 4.0
Universal Rotary Milling Machine X6232 1 4.0
CNC Lathe EL6140N 2 4.0
Saw Machine GD4028N 2 5.0
Expander ZX-3000 1 3.0
Rolling Machine W11-4-200 2 3.0
Automatic Round Welding Machine W11SNC-10-6500 1 4.0

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier

Our Services

1. Professional design model of flatbed trailer for customers' special requirements.

2. Strict Quality Control for the flatbed trailer.

3. Longer guarantee terms for the flatbed trailer in whole Chinese market.

THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

MAIN FRAME

FRAME

18 MONTHS

RUNNING GEAR

AXLE

18 MONTHS

SUSPENSION

18 MONTHS

AXLE BEARING

18 MONTHS

KING PIN

18 MONTHS

WHEEL HUB

12 MONTHS

BALANCE ARM

18 MONTHS

TIRE

12 MONTHS

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

BRAKING DEVICE

BRAKE DRUM

12 MONTHS

SUPPORT DEVICE

LANDING GEAR

12 MONTHS

BRKE CHAMBER

12 MONTHS

SPARE WHEEL CARRIER

12 MONTHS

AIR RESERVOIR

18 MONTHS

ITEM NAME

WARRANTY

OTHERS

LEAF SPRING

10 MONTHS

BRAKE CHAMBER DIAPHRAGM

10 MONTHS

EMERGENCY RELAY VALVE

10 MONTHS

BRAKE SHOE

10 MONTHS

RELAY VALVE

10 MONTHS

Side Board Fence Tri Axles Flatbed Detachable Sidewall Semi Trailer for Cargo Carrier
