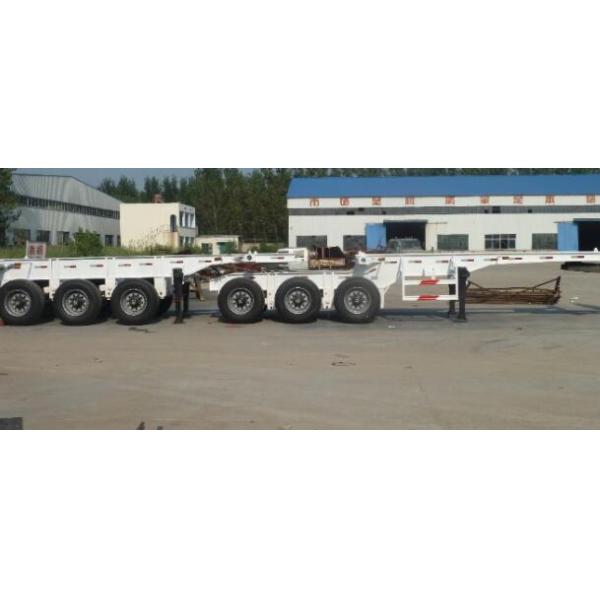

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
13000X2500X3090 (mm)
Max Payload :
80ton
Place of Origin :
CHINA
Brand Name :
AOTONG
Axle :
FUWA BPW or other optional
Tire :
12R22.5
Suspension :
Mechanical/Air Suspension
Landing Gear :
28T standard
Brake System :
Dual line braking system
Loading capacity :
20 Tons-100 Tons
Twist lock :
4/8/12
King pin :
2"(50mm)or3.5"(90mm)
Color :
Customers Optional
Usage :
bulk cargo or container transport
MOQ :
1 UNIT
Price :
$19,900.00/units >=2 units
Certification :
ISO,CCC
Packaging Details :
Exporting Standard
Delivery Time :
25 days
Payment Terms :
TT
Description
Product Description

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading

Name

Skeleton container chassis

Tires Specifications

12r22.5 or 385/65R22.5 12pcs/6pcs Triangle brand

Rims

9.00-20 12pcs

Axles

3*13ton axles FUWA Brand

King Pin

50#/90#

Landing Leg

Single side operation or double side operation, Static capacity 28Ton Jost brand

Pieces of leaf-spring

10/10/10 thicken

Suspension

Rigid suspension ( air suspension optional)

Material of the Main Beam

H beam automatic submerged arc welded,height:500mm

Brake System

Dual line braking system with WABCO braking valve

Brake Air Chamber

6 double chamber

Electrical

24V 7 ways(7 wire harness) LED light

Color

Any color will be available

Accessory

One tooling box with a set of standard trailer tool

Painting

Sand blasting

One time Primer coating

Two times finish coating

Spare wheel carrier

1

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading 13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading

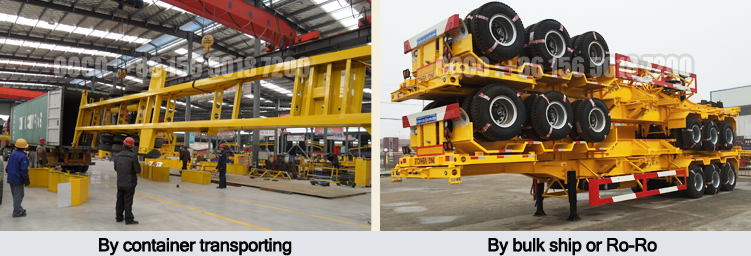

Packaging & Shipping

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading 13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading

13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading13000X2500X3090 mm Steel 3 Axles Bi-Train Tandem Semi Trailer for Container Loading
