Model

Outside Dimension

L×W×H(mm)

Axle

Tire size

Total Weight

(kg)

Rated Load

(kg)

LAT9402GFL

12700X2500X4000

3

1100R20
12R22.5

41000

30000

Manufacture

Liangshan Juyuan special vehicle manufacturing Co., Ltd

Main Frame and tank material

Q235A manganese plates, automatic submerged arc welded

Axle

brand: FUWA (BPW optional)

Suspension

Independent stamping steel rigid suspension ( air suspension)

King Pin

2" or 3.5" traction pin made in China( Jost optional)

Landing Gear

chinese brand loading 28000kg (JOST optional)

Spare Wheel Carrier

One set of spare wheel carrier including a riser.

Braking System

Kemi or other Brand of China; ABS (optional )

Brake Air Chamber

Four double and two single chamber

Electrical System

1. Voltage: 24v 2. Receptacle:7 ways(7 wire harness)

Painting

Sand blasting processing clean rust

1 coat of anticorrosive primer

2 coats of finish urethane paint

Color as customer choice

Accessory

One tooling box with a set of standard trailer tool

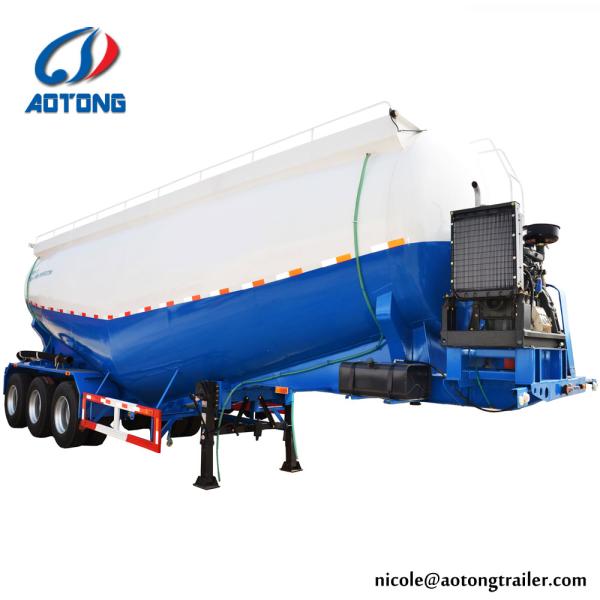

Usage

The cargo's carrying part is tank-style designed,

is suitable for the transportation of powedred cement,chemical material,fertilizers,flour,flyash products

Characteristics

1. High transport efficiency, ensuring the products will not be deteriorated

in the process of transportation,saving the packing materials to reduce the transport costs.

2. Equipped with gasification bed, intake control system,

and thrusting control system to ensure the pipelines unimpeded.

3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle,

ensuring the discharging speed.

4. The diesel engine (air compressor unit), providing compressed air.

Other Descriptions

The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight.

The internal part can be single layer or dual layer

Remark

We can designed model according to client's requirement.
