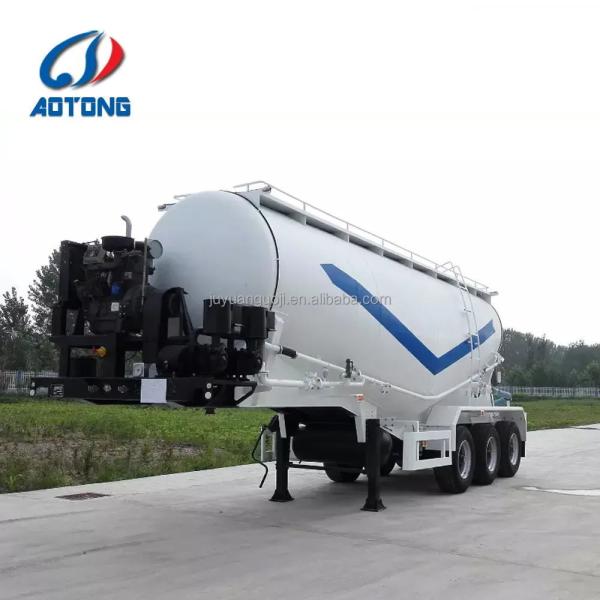

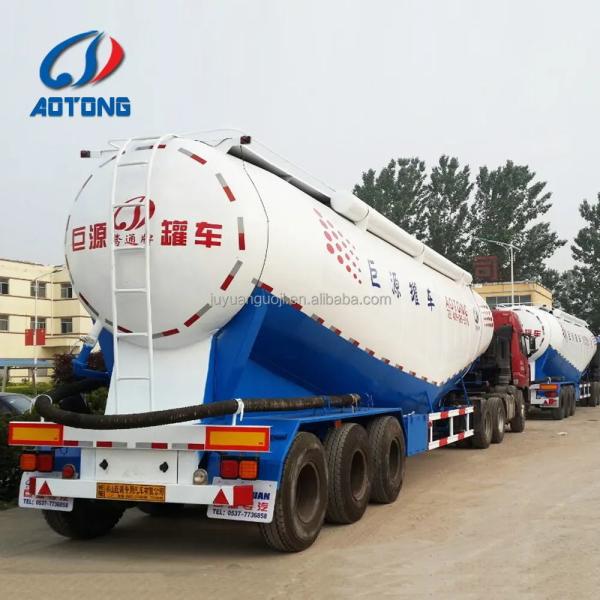

3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer
Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
11980*2500*3800mm(optional)
Max Payload :
45 - 100 Tons
Place of Origin :
CHINA
Brand Name :
AOTONG
Product name :
Bulk Cement Trailer
Axle :
13 Ton Fuwa/BPW
Tire :
11.00r20 12r22.5 315 385
Suspension :
Leaf Spring Suspension/Air Suspension
King pin :
2"(50mm)or3.5"(90mm)
Landing Gear :
Heavy Duty Landing Gear
Brake System :
Dual Line Braking System
Color :
Customers Optional
Load weight :
30-45T
Tank material :
Steel Material Q235
Packaging Details :
In nude,Polish with water wax before shipment
1 By 40ft/45ft/40fr container
2 By bulk /roro ship
3 As your requirments.
Professional package saves freight cost for customers
Guarantee the firmness and safety of the goods
Port :
Tianjin/ Lianyungang/Qingdao/Shanghai port
Supply Ability :
200 Set/Sets per Month
Price :
$18,200.00/sets 1-2 sets
Certification :
ISO,CCC
MOQ :
1 UNIT
Delivery Time :
25 days
Payment Terms :
TT
Description

The direct factory for all kinds of good quality semi trailers.

1.30 years experience manufactory
2.CCC,ISO,SGS agree
3.Well designed ,small order accept.
4.Manufacture according to your detail requirements
5.After-sale-support;6 month guarantee term

1-Container series

3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer

3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer

Product Information

Product Bulk Cement Tank Trailer

Place of Origin

Shandong province, China

Outside Dimensions (L*W*H)

(6000-17000)*2500*1550mm

Rated Load

45000 kg

Tare Weight

7000 kg

Wheel Base

7000+1310+1310(mm)

Volume

44.6m3

Compartment No & Valve

5 isolated compartments with loading and unloading valves, loading and unloading pump

Tires

specification

11.00r20/12R22.5-18

No. of tires

8/12/16

Spare tire carriers

1 or 2

Axles

Brand

FUWA (BPW optional)

No. of axles:

2/3/4

Axle-load

14T/16T/20T per axle

Wheel rim

7.50-20 rim or 8.00

Suspension

rigid suspension,10 pcs leaf-spring

Brakes

brand

TKL brand

Brake chamber

double air chamber

System

Dual line braking system /ABS

Main Beam

material

I beam ,Q345B, automatic submerged arc welded

specification

Height is 500mm,upper plate is 14mm,lower plate is 16mm,middle is 8mm

Cross Beam material

Q235B

Side beam

Channel steel

Plate form

Steel Sheet 3mm thickness or diamond plate(Also can choose other thickness ,such as 2mm,2.3mm,4mm,5mm,6mm)

King Pin

50# or 90#

Landing gear

28Ton

Accessory

One tooling box with a set of standard trailer tool

Voltage

24V

Receptacle

7 ways (7 wire harness)

Lights

Front corner marker lamp :red ;reflector lamp :white

Side marker :orange

Rear lamp :red; rear reflector :white; turn single lamp :orange

Painting ,marking and side guard can according to the customer’s requirement

Other Specifications

 The sealing head of the tank shell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer

Painting ,marking and side guard can according to the customer’s requirement
Packaging & Shipping

PACKAGING & SHIPPING

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer 3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer3 axle 30 ton bulk cement tanker for powder material transport tank semi trailer

After-sale Service

AFTER-SALE SERVICE

THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

MAIN FRAME

FRAME

1 YEAR

RUNNING GEAR

AXLE

6 MONTHS

SUSPENSION

6 MONTHS

AXLE BEARING

3 MONTHS

KING PIN

1 YEAR

WHEEL HUB

3 MONTHS

BALANCE ARM

3 MONTHS

TIRE

6 MONTHS

ITEM NAME

WARRANTY

ITEM NAME

WARRANTY

BRAKING DEVICE

BRAKE DRUM

3 MONTHS

SUPPORT DEVICE

LANDING GEAR

6 MONTHS

BRKE CHAMBER

3 MONTHS

SPARE WHEEL CARRIER

6 MONTHS

AIR RESERVOIR

6 MONTHS

ITEM NAME

WARRANTY

OTHERS

LEAF SPRING

3 MONTHS

BRAKE CHAMBER DIAPHRAGM

3 MONTHS

EMERGENCY RELAY VALVE

3 MONTHS

BRAKE SHOE

3 MONTHS

RELAY VALVE

3 MONTHS

For more details,please contact us.

Welcome to our factory,we will pick you up at airport.
