Specifications
Use :
Truck Trailer
Type :
Semi-Trailer
Material :
Steel
Size :
11280*2495*3970 (mm)
Max Payload :
60T
Place of Origin :
CHINA
Brand Name :
AOTONG
Rated Load :
30-60 TONS
Axle :
13 TONS FUWA
Tire Size :
12.00R22.5-18
Suspension :
Heavy duty leaf spring suspension
Brake Air Chamber :
Six double chamber
Brake system :
Dual line braking system
Kingpin :
50#/90#
Landing Gear :
standard 28T
Color :
customer's optional
Certification :
ISO,CCC
Price :
$19,000.00/sets >=1 sets
Packaging Details :
Exporting Standard
MOQ :
1 UNIT
Delivery Time :
25 days
Payment Terms :
TT
Description

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit

Product Description

Type

Dump trailer

Payload

80T-100T(25m3--37m3)

Axle Weight Load

14T/16T/20T per axle

Specification:

Axle number

Three

Axle specs.

FUWA /BPW brand

Suspension

mechanical suspensions

King Pin

50#/90#

Dimensions(LxWxH)

11280*2495*3970mm(Outside)
10500*2300*1500mm(Inner)

Rim

9.00*22.5

Lifting system

Full set of Hyva/Jiuzhouzhongli hydraulic system

Steel Spring

10pieces

Tire:

Tire specs.

12.00R22.5-18

Number of Tire

12pieces

Spare Tire Carriers

2 pieces

Frame: (specs. and materials)

Main frame is height 500mm .

Frame Beam

Upper and lower plate is20mm,middle is10mm(Double+three plate).height is 500 mm

Frame Floor

The Thickness is 3mm flat bed

Brake Chamber

Two double and two single chamber

Electrical:

Voltage

24V

Receptacle

7 ways(7 wire harness)

Light color:

Side marker lamp

Orange

Rear lamp

Red

Turn signal lamp

Orange

Landing Leg support:

28ton

Side Guard

According to the requirement of the buyer

Procurement of raw materials

We have perennial cooperation suppliers of raw materials with really good quality and have certain amount reserve, saving cost and production cycle, and make the product standardization. Constantly updated product design, technology is guaranteed.

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit

Production process

We have advanced Instrument and equipment, professional engineers, assemblyline production of standardized products, the workers have many years of work experience, they have efficient work and products have meticulous workmanship.

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit

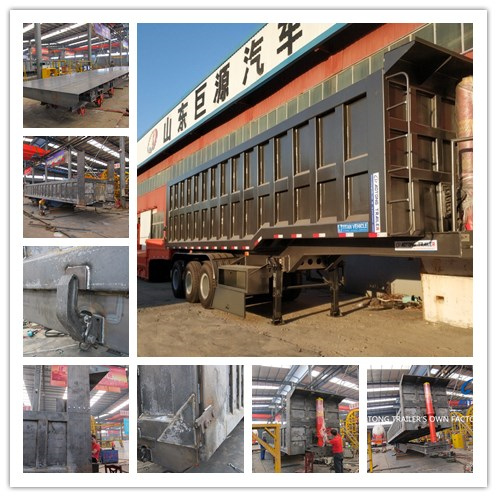

End product display

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit

Packaging & Shipping

The small and medium semi trailers with the size and numbers which can be put into the containers, usually use the container transport, to ensure the semi trailers will not scratch or lost during longdistance transit and saving transport cost. Large size semi trailer, use the truck head drag to the pier, if multiple trailers stacked, we’ll using rope to tied and fixed in the form of bulk maritime transport.

Customer's Optional Tri Axles Heavy Duty Cargo Side Dump Rear Tipping Trailer Benefit
