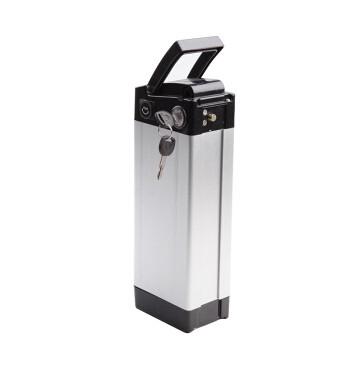

CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
Specifications
Brand Name :
CHAOWEI
Model Number :
BN4810AB
Certification :
CE, UL, CCC
Place of Origin :
Zhejiang
MOQ :
10 pcs
Payment Terms :
T/T, L/C
Supply Ability :
6000 pcs per month
Delivery Time :
25 days - 30 days
Packaging Details :
Carton
Nominal Voltage :
48V
Nominal Capacity :
10Ah
Type :
LiMnO2
Material :
Li(NiCoMn)O2
Safety :
No fire risks
Cycle Life :
1200 cycle at 80% DOD
Price :
Negotiation
Description

CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery

Description

BN Series Lithium Ion Battery Pack is designed based on MnNiCo Ternary technology with excellent cycle performance and high safety.BN Series is mainly applied to electric bicycles, tricycles and other electric vehicles. The battery module is comprised of soft-packed battery cells in series and battery protection module is included to ensure supreme reliability.

Features

• Modularized design and pefectly compatible to the electric bicycles which are using traditional VRLA batteries

• 'Green " and environment-friendly, no pollution to the environment during production and normal usage

• Stable structure and simplified production process enables mass production and easy maintenance

• Completely new protection design of water-proof, fire-proof, shock-resistance enable high safety

• Professional protection module and BMS ensures the battery pack to be protected perfectly

• High weight and measurement specific energy ensures the battery pack extremely long-voyage ability

• Super long life supported by innovative technologies, high quality material and strict manufacturing control

Applications

1. Electric Bicycle or Scooter

2. Electric Tricycles, or electric vehicles

Specifications

Battery Model No.

BN4810AB

Material

MnNiCo Ternary Material + LiMn2O4

Nominal Voltage (V)

48V

Nominal Capacity (C2, 25℃ )

10Ah

Battery Pack Dimension (mm)

390mm X 106mm X 76mm (L X W X H)

Nominal Weight (Kg)

3.8 Kgs ± 0.1

Continuous Charge Current (A)

2A - 4A

Charge Time (hr)

3h - 6h

Discharge Cut-off Voltage (V)

≥ 39.5V

Continuous Discharge Current (A)

≤ 10A

Pulse Discharge Current (A)

≤ 15A

Cycle Life at80% D.O.D.

≥ 700Cycles

Capacity Retention Rate at 0℃

≥ 90%

Self-Discharge Rate (25℃)

≤ 5% per month

Temperature Characteristic

Charging

-20℃ - 40℃

Discharging

-20℃ - 40℃

Storage

-20℃ - 40℃

Images

CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery

CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery

CE , UL Approved 48V Electric Bike Lithium Battery 10A rechargeable lithium battery
