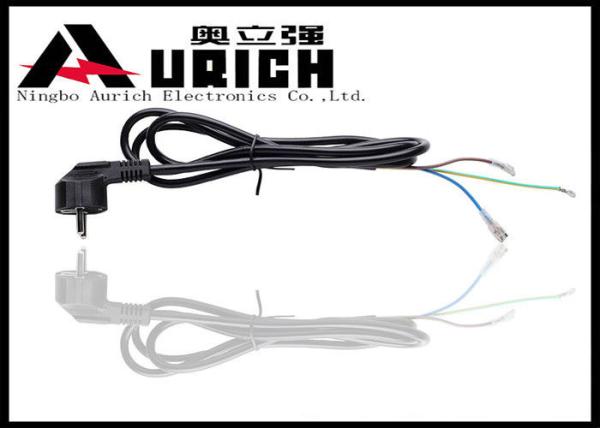

220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
220v Pvc Sheath Two Pin Power Supply Power Cable For Air Conditioner EU Approval
Specifications
Brand Name :
Aurich
Model Number :
AU-003
Certification :
VDE
Place of Origin :
Zhejiang, China (Mainland)
MOQ :
2000PCS
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5000000 PCS Year
Delivery Time :
20-30
Packaging Details :
40CM*30CM*27CM
Standard :
European Standard
Insulation Material :
PVC
Conductor Material :
Copper
Product name :
PE Sheathed Power Cable
Sheath :
Flame Retardant PVC
Application :
Household appliances
Description

danish cord set EU approval 220v pvc cable iec end france electrical power plug

Features:

  • Rubber sheathed flexible cable/PVC
  • Various type of plug available
  • Cable working temperature should not exceed 65°C
  • Cable have a certain extent of temperature resistance and oil resistance, fit to work outside and work in the smeary environment.
  • Reach standard GB/T 18380.1-2001 vertical flame test.
  • When cable in temperature of 20°C the insulation resistance between conductors above 50MΩ.km.

Application: Rated voltage 300/500V, 350/750V, for Air conditioner, home appliance power supply.

Example: VDE H05RR-F, H05RN-F, H07RN-F

specification

Conductor

Normal thickness of insulation

mm

Normal thickness of jacket

mm

Over diameter

mm

Max conductor resistance at 20°C

≤Ω/km

Ampere

rating

A

No. of core

normal cross-sectional area of conductor

mm2

No. / Dia.

mm
1 1.5 30/0.25 0.8 1.4 5.8~6.7 13.3 27
2.5 49/0.25 0.9 1.4 6.5~7.2 7.98 37
4 56/0.30 1.0 1.5 7.6~8.5 4.95 47
6 84/0.30 1.0 1.6 8.5~9.5 3.30 52
2 1 32/0.20 0.8 1.3 8.2~9.1 19.5 17
1.5 30/0.25 0.8 1.5 9.1~10.1 13.3 21
2.5 49/0.25 0.9 1.7 10.9~12.4 7.98 30
2×4 56/0.30 1.0 1.8 12.9~14.8 4.95 39
3×6 84/0.30 1.0 2.0 14.7~16.6 3.30 51
3 3×1 32/0.20 0.8 1.4 8.9~9.9 19.5 12
3×1.5 30/0.25 0.8 1.6 9.8~11.1 13.3 18
3×2.5 49/0.25 0.9 1.8 11.7~13.4 7.98 26
3×4 56/0.30 1.0 1.9 13.8~15.7 4.95 34
3×6 84/0.30 1.0 2.1 15.7~17.6 3.30 43
cable type section area of copper conductor
HO3VV-F 3*0.5MM2
H03VV-F 3*0.75MM2
HO5VV-F 3*0.75MM2
HO5VV-F 3*1MM2
HO5VV-F 3*1.5MM2
H05RR-F 3*0.75MM2
H05RR-F 3*1MM2
H05RR-F 3*1.5MM2
H05RN-F 3*0.75
H05RN-F 3*1MM2
H05VV-F 3*1.5MM2
H07RN-F 3*1MM2
H07RN-F 3*1.5MM2
H05V2V2-F 3*0.75
H05V2V2-F 3*1MM2

Our Services
1. Any inquiries will be replied within 24 hours.
2. High quality, reasonable and competitive price, fast lead time.
3. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
4. Faster delivery.
Sample order in stock, and 2-5days for bulk production.
5. Payment
We can accept payment methods: L/C, T/T, Western Union,PayPal other payment can negotiation.
6. Sample Charge
1) Samples charge:According to your design . Sampling time:3-6Working days
2) Samples charge:Free for Existing Samples Sampling time:1day
