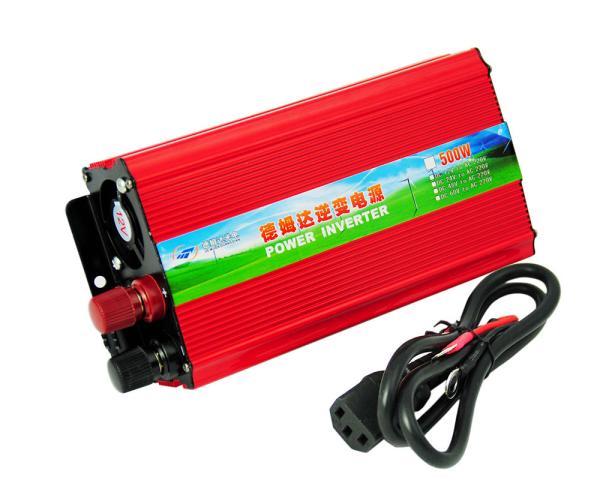

Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Ac To Dc,12v/24v/48v To 110v/220v Modified Sine Wave Inverter300W,500W,1000W.
Specifications
Brand Name :
APS
Model Number :
Modified Sine Wave Inverter-300W,500W,1000W
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
T/T, L/C, D/A, D/P, T/T
Supply Ability :
100000PCS
Delivery Time :
20 Days
Packaging Details :
Standard Export Package
Description

Features :

1.High-end chip,improve the working reliability.

2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse connection protection.

3.Sound and light alarm,under-voltage alarm,with frequency-conversion cooling fan.

4.Soft-start function,increase loading capacity.

5.Aluminum alloy shell,Heat eliminable.

6.With battery clip,AC input wire,cigarette lighter socket.

Power Rating 300W 500W 1000W
Continue Output Rating 300W 500W 1000W
Peak Power Rating Output 600W 1000W 2000W
Input Section DC Input Voltage 12V 24V 48V 12V 24V
DC Operating Voltage 11-15V 21-29V 40-55V 11-15V 21-29V
DC Low-voltage Protection 9-10.5V 18.5-20.5V 39V 9-10.5V 18.5-20.5V
DC Low-voltage Alarm 9.5-11V 19.5-21V 40V±1 9.5-11V 19.5-21V
DC Over-voltage Protection ≥15V ≥29V ≥55V ≥15V ≥29V
Fuse 40A*1 20A*2 30A*1 40A*1 20A*3
Quiescent Current ≤0.5A ≤0.5A ≤0. 5A ≤0. 5A ≤1A
Output Section Output Waveform Modified Sine Wave
Output Voltage 220V±10%
Output Frequency 50HZ±1%
Transfer Efficiency ≥90%
Overload Protection 300W--360W 500W--600W 1000W--1200W 1000W--1200W
Short-circuit Protection Yes
Operating Temperature -10℃--+50℃
Temperature Protection +60℃--+70℃
Green LED Indicator Green Light(Working),Flash(Overload Protection)
Red LED Indicator Red Light(Error Protection)
