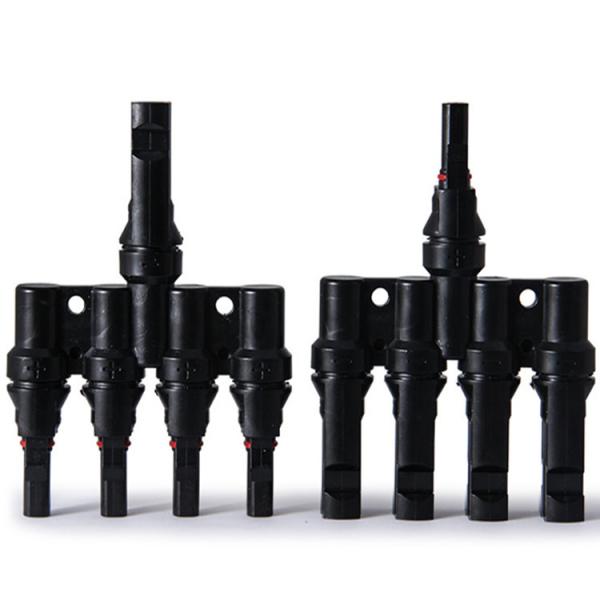

A.MC4 T-Branch Connector 4 in 1

Description:

MC4 T-Branch Connector for 4 panels parallel connection, widely used in off grid installing, RV solar system

Features:

Compatible with all MC4 Type Solar Panel Connector

-IP67 Water proof degree

-TUV, CE, ROHS Compliant

-UV Resistent

Technical Data:

Maximum Current: 30A

Maximum voltage: DC 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Connecting cable specifications: 2.5MM2/14AWG 4mm2/12AWG 6mm2/10AWG

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N

B.MC4 Adaptor 5 in 1 T-branch connector

Description:

MC4 T-Branch Adaptor for 5 panels parallel connection

Features:

Compatible with all MC4 Type Solar Panel Connector

-IP67 Water proof degree

-TUV, CE, ROHS Compliant

-UV Resistent

Technical Data:

Maximum Current: 30A

Maximum voltage: DC 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Connecting cable specifications: 2.5MM2/14AWG 4mm2/12AWG 6mm2/10AWG

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N

C.MC4 Y Connector 2 in 1

Description:

MC4 Cable Branch for solar panel parallel 2 way, 2Male1Female and 2Female1Male set, with 4.0mm2 solar DC Cables each MC4 Plug( We also have MC4 T-branch with no wire ) , widely used for RV Solar Kits, Off grid installing

Features:

Compatible with all MC4 Type Connector

-IP67 Water proof degree

-Easy, convenient to install

Technical Data:

Maximum Current: 30A

Maximum voltage: DC 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Solar cable specifications: 14AWG 4mm2

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N

D.MC4 Splitter Y Connector 3 in 1

This MC4 Y Splitter Connect triple solar panel together. This pair of “Y” shape connectors ( 3Female1Male and 3Male1Female) will allow you to connect panels or strings of panels together, also called 3 in 1 MC4 Y Branch for solar panel connection, compatible with any MC4 Type Plug Features-Compatible with all MC4 Type Connector

-IP67 Water proof degree

-Easy, convenient to install

Technical Data:

Maximum Current: 30A

Maximum voltage: DC 1000V

Contact resistance:≤5mmΩ

Temperature: -40 ℃ ~ +90 ℃

Waterproof Grade: IP67

Flame class: UL94-V0

Solar cable specifications: 14AWG 4mm2

Test voltage: 6.6KV (50Hz, 1min)

Metal materials: copper tin plated

Insulation material: PPO

Lock mode: Self-locking

Security Level: Class ‖

Insertion force:≤50N

Withdrawal force:≥50N
