Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Pre-heat / Indirect Thermosiphon Compact SUS304 Coil/Stainless Coil Solar Water Heater ---Copper Coil Model
Specifications
Brand Name :
APS
Model Number :
APGC-470-1800/58-20-20 APGC-470-1800/58-24-20 APGC-470-1800/58-25-25 APGC-470-1800/58-30-30 APGC-470-1800/58-36-30
Certification :
CE
Place of Origin :
China
MOQ :
50PCS
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
20 Days
Packaging Details :
Standard Export Package
Description

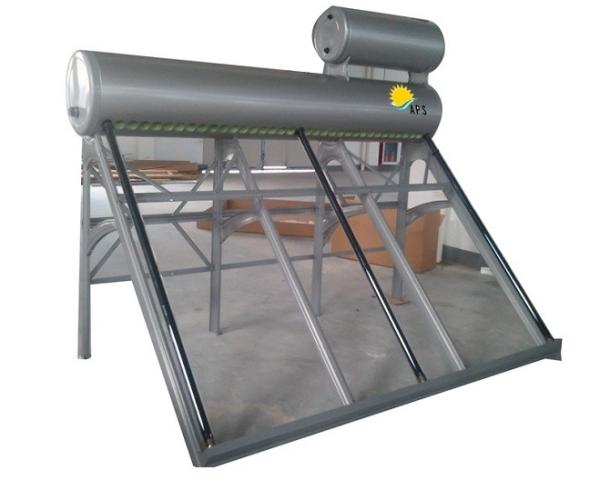

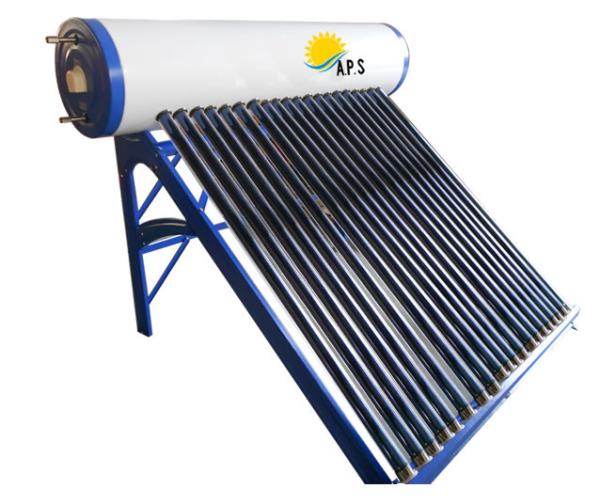

Compact Copper Coil Solar Water Heater Color Steel Series.

Tech Data:

1. Inner water tank:Stainless Steel, SUS304-2B, SS316L; Thickness, 0.31-0.51MM.

2. Outer water tank:Color Steel ; Thickness, 0.40MM.

3. Insulation layer:Polyurethane foam; Thickness, 30-60MM.

4. Frame:Galvanized Steel;Angle, As your requirement.

5. Vacuum tubes:ALN/AIN-SS/CU layer; 58-1800.

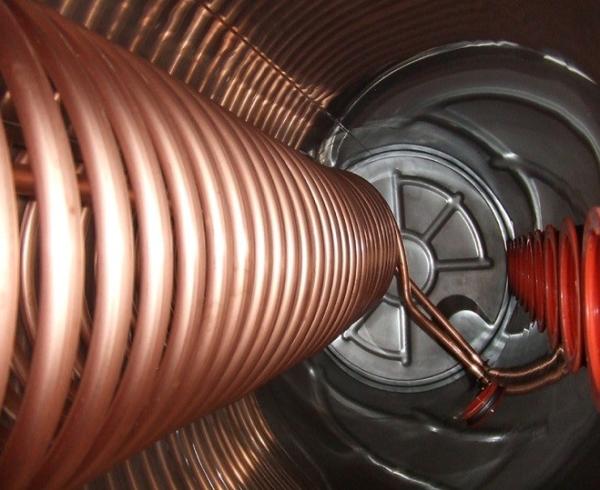

6. Copper Coil:15M(18Tubes) 20M(24Tubes), 25M(30tubes);30M(36tubes).

7. Assistant Tank heating element, Mg Rod, Reflector and Controller can be provided.

Characteristic:

1. When water flows into the copper coil, it absorbs heat from the water in the tank, therefore; the water tank is just a heat storage.
2. It can be used at any time to warm the cold water. It can overcome the shortcoming of traditional solar water heater, such as slow heating rate, long waiting time.
3. High Efficiency: A special heat exchanging mode is adopted to avoid mixed effect, so cold water can be heated at any moment.
4. Water pressure is same as tap water; it can be connected directly to city tap water system.
5. Green and economical. No pollution in working, no cost for hot water.

Model:

Model of Theoretical Aperture Loading
Solar Water Heater Capacity Area 40HQ
APGC-470-1800/58-20-20 200L 1.861M2 87 No.
APGC-470-1800/58-24-20 240L 2.233M2 82 No.
APGC-470-1800/58-25-25 250L 2.326M2 73 No.
APGC-470-1800/58-30-30 300L 2.791M2 63 No.
APGC-470-1800/58-36-30 360L 3.349M2 56 No.
