SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
SUS 304 316 Micron Stainless Steel Wire Mesh For Filters
Specifications
Brand Name :
Velp
Model Number :
SS mesh - 17
Certification :
SGS CE ISO9002 BV
Place of Origin :
China
MOQ :
10sqm
Price :
USD 1-2 Per Sqm
Payment Terms :
MoneyGram, Western Union, T/T, L/C
Supply Ability :
2000 sqm per week
Delivery Time :
15 days
Packaging Details :
Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Name :
SUS 304 316 wire netting cloth micron stainless steel wire mesh for filters
Package :
Bubble film,kraft,plastic cloth,wooden case
Delivery time :
5 days for stock materials
Weave style :
Plain Weave,twill weave,Plain/Twill Weave,Dutch/Plain/Twill Weave,twill or dutch
Keywords :
Food grade 100 micron stainless steel wire mesh
Use :
filters,sieve,chemical industry,mine industry,paper making etc
Samples :
A4 size for free
Description

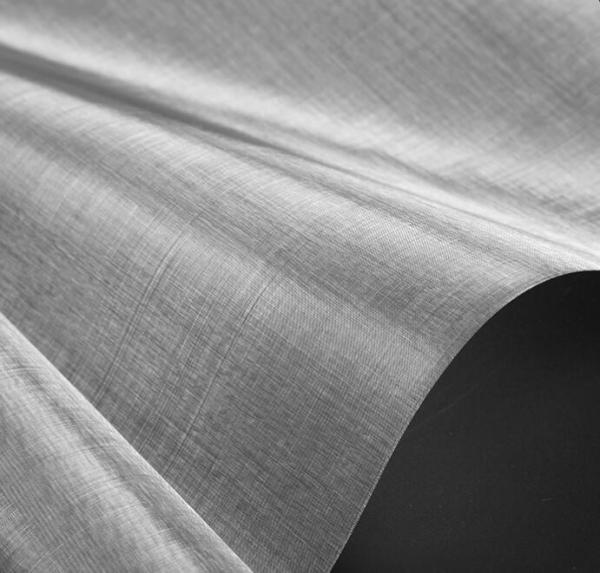

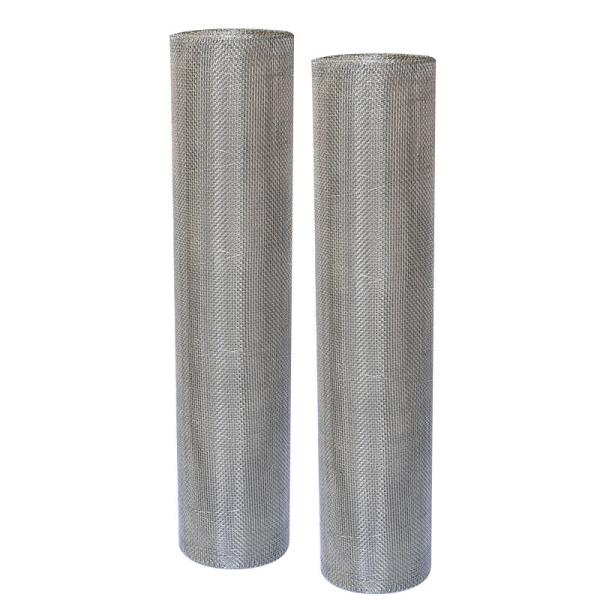

SUS 304 316 wire netting cloth micron stainless steel wire mesh for filters

Product description

Our woven stainless steel mesh offers a high level of protection against corrosion. We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade).
Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

Feature of 100 mesh micron stainless steel screen

304 stainless steel mesh has excellent corrosion resistance and intergranular corrosion resistance. In the experiment, it is concluded that 304 stainless steel mesh has strong corrosion resistance in nitric acid with concentration ≤65% below boiling temperature. It also has good corrosion resistance to alkali solution and most organic and inorganic acids.

Application:

1. It is used for screening and filtering in acid and alkali environment, used as mud net in petroleum industry, chemical fiber industry, screen and electroplating.
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries.
3. It can be used for screening and filtering in acid and alkali environment. It can be used as mud net in petroleum industry, screen in chemical fiber industry and acid washing net in electroplating industry. Our factory can design and manufacture various types of products according to users' needs.

The detail mesh matching with diameters

Specification list of Stainless Steel Wire Mesh
Meshes Per Linear Inch Diameter of Wire Width of Opening Open
Area, %
Inches mm Inches mm
10 x 10 0.047 1.2 0.053 1.34 28.1
10 x 10 0.035 0.9 0.065 1.65 42.3
10 x 10 0.032 0.8 0.068 1.27 46.2
10 x 10 0.025 0.63 0.075 1.90 56.3
12 x 12 0.041 1.0 0.042 1.06 25.4
12 x 12 0.035 0.9 0.048 1.22 33.2
12 x 12 0.032 0.8 0.051 1.29 37.5
12 x 12 0.028 0.7 0.055 1.39 43.6
12 x 12 0.023 0.58 0.060 1.52 51.8
14 x 14 0.032 0.8 0.039 1.52 29.8
14 x 14 0.025 0.63 0.046 0.99 41.5
14 x 14 0.023 0.58 0.048 1.22 45.2
14 x 14 0.020 0.5 0.051 1.30 51.0
16 x 16 0.028 0.7 0.035 0.89 30.5
16 x 16 0.023 0.58 0.040 1.01 39.9
16 x 16 0.018 0.45 0.045 1.14 50.7
18 x 18 0.020 0.5 0.036 0.91 41.1
18 x 18 0.018 0.45 0.038 0.96 48.3
20 x 20 0.023 0.58 0.027 0.68 29.2
20 x 20 0.020 0.5 0.030 0.76 36.0
20 x 20 0.018 0.45 0.032 0.81 41.0
20 x 20 0.016 0.40 0.034 0.86 46.2
24 x 24 0.014 0.35 0.028 0.71 44.2
28 x 28 0.010 0.25 0.026 0.66 51.8
30 x 30 0.013 0.33 0.020 0.50 37.1
30 x 30 0.012 0.30 0.021 0.53 40.8
35 x 35 0.012 0.30 0.017' 0.43 33.8
35 x 35 0.010 0.25 0.019 0.48 42.4
40 x 40 0.014 0.35 0.011 0.28 19.3
40 x 40 0.012 0.30 0.013 0.33 27.4
40 x 40 0.010 0.25 0.015 0.38 36.0
40 x 40 0.0095 0.24 0.016 0.40 38.4
50 x 50 0.009 0.23 0.011 0.28 30.3
60 x 60 0.0075 0.19 0.009 0.22 30.5
70 x 70 0.0065 0.17 0.008 0.20 29.8
80 x 80 0.0070 0.18 0.006 0.15 19.4
80 x 80 0.0055 0.14 0.007 0.17 31.4
90 x 90 0.0055 0.14 0.006 0.15 25.4
100 x 100 0.0045 0.11 0.006 0.15 30.3
120 x 120 0.0040 0.10 0.0043 0.11 26.6
120 x 120 0.0037 0.09 0.005 0.12 30.7
150 x 150 0.0026 0.066 0.0041 0.10 37.4
165 x 165 0.0019 0.048 0.0041 0.10 44.0
180 x 180 0.0023 0.058 0.0032 0.08 33.5
180 x 180 0.0020 0.050 0.0035 0.09 41.1
200 x 200 0.0020 0.050 0.003 0.076 36.0
200 x 200 0.0016 0.040 0.0035 0.089 46.0
220 x 220 0.0019 0.048 0.0026 0.066 33.0
230 x 230 0.0014 0.035 0.0028 0.071 46.0
250 x 250 0.0016 0.040 0.0024 0.061 36.0
270 x 270 0.0014 0.040 0.0022 0.055 38.0
300 x 300 0.0012 0.030 0.0021 0.053 40.1
325 x 325 0.0014 0.040 0.0017 0.043 30.0
325 x 325 0.0011 0.028 0.0020 0.050 42.0
400 x 400 0.0010 0.025 0.0015 0.038 36.0
500 x 500 0.0010 0.025 0.0011 0.028 25.0
635 x 635 0.0009 0.022 0.0006 0.015 14.5
