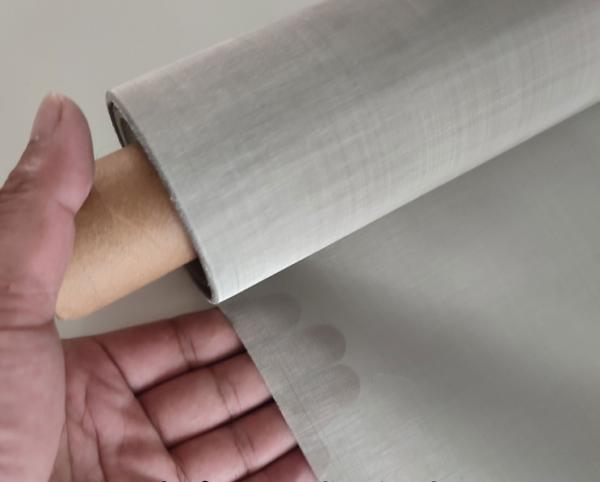

304 Stainless Steel Mesh High Temperature Metal Filteration Woven Wire Cloth

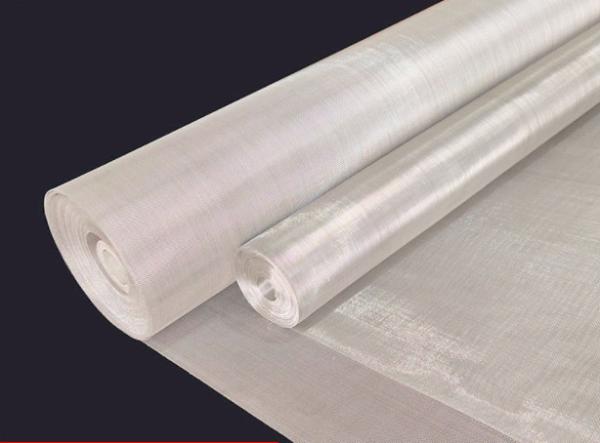

201 304 ss wire mesh rolls stainless steel woven metal mesh fabric screens

Product description

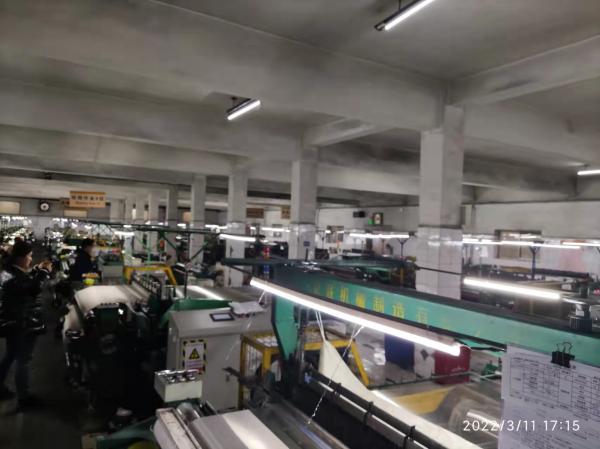

Woven wire mesh or woven wire cloth is woven by machine,It is similar to the process of weaving clothing.But it is made of wire.The mesh can be woven in different weave styles.Its purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production costs of woven wire mesh higher.But it also has a very wide range of uses.

The materials are 304 stainless steel wire mesh,316 stainless steel wire mesh,310 stainless steel wire mesh,904L stainless steel wire mesh.430 stainless steel wire and other stainless steel grade.The most popular oness are 304 stainless steel wire mesh and 316 stainless steel wire mesh,which can be used in post application environments and are not expensive.

And some special materials are used to meet the high requirements of the use environment,such as inconel wire mesh,monel wire mesh,titanium wire mesh,pure nickel mesh and pure silver mesh etc.

The detail specifications

Available Weaving Type

1. Plain Weave: Also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

3. Plain Dutch Weave: Similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.

4. Twill Dutch Weave: Similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.

5. Reversed Dutch Weave: Difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
