Stainless Steel Small Hole 300 Mesh Woven Mesh For High Filtration

Stainless Steel Mesh Introduction

Quality stainless steel woven wire mesh, sold by the roll/piece. Our woven 300 mesh has a 0.055mm hole size and 0.03mm thick wire.

Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Woven 300 Mesh is a very fine, cloth-like mesh with a very small hole size. Given that the material is extremely flexible, it may need the support of a frame to add rigidity.

This mesh is only available in our higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.

If you are interested in our product, please contact me as soon as possible.

Stainless Steel Small Hole 300 Mesh Woven Mesh Material

1.Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc

2.Wire Diameter: 0.015-2.8mm

3.Mesh count:

Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave can be woven up to 3500mesh

4.Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.

Stainless Steel Small Hole 300 Mesh Woven Mesh Features

· Corrosion resistance.

· Anti-acid and alkali

· Anti-high temperture.

· Good filter performance.

· Long using life

Stainless Steel Small Hole 300 Mesh Woven Mesh Applications

· In acid, alkali environment conditions sieving and filtering.

· Petroleum industry as mud mesh.

· Chemical fiber industry as screen mesh.

· Plating industry as acid cleaning mesh.

Packing

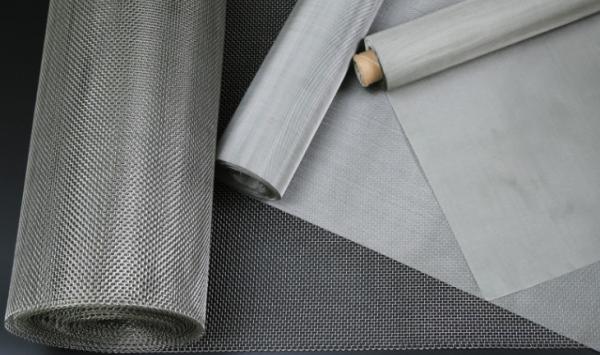

The usual packing is as the picture showed,or as costomized.
