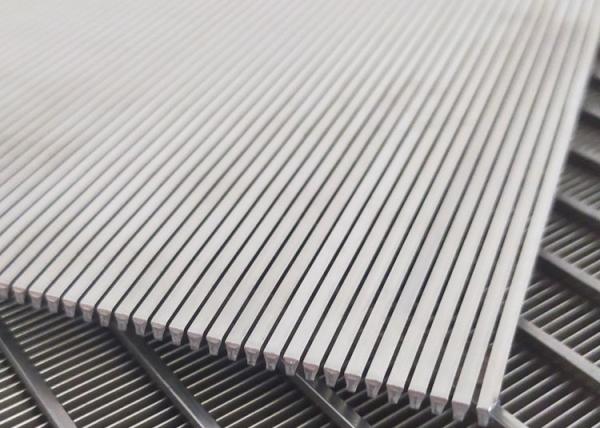

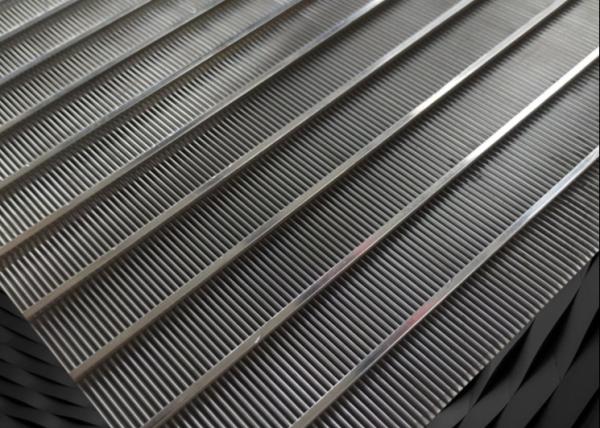

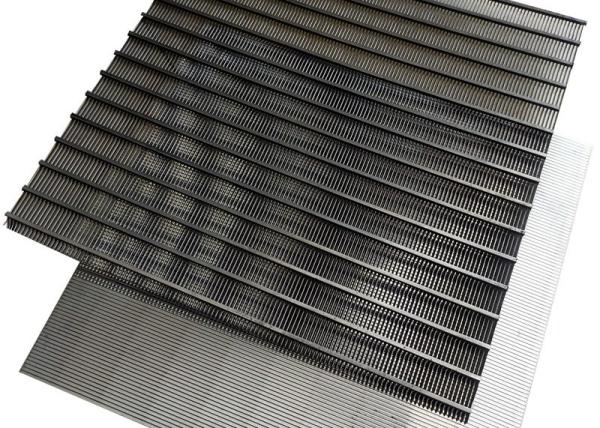

Factory Price 304 Stainless Steel Wedge Wire Screen

Stainless steel wedge wire screen product introduction

304 Stainless Steel Wedge Wire Screen is a metal mesh structure element used for screening and filtering.

It is used in screening, filtering, dewatering, desliming and other operations in many industries.

It has strength, rigidity and bearing capacity, and can be made into a rigid screening and filtering device with various shapes.

Product model: flat screen, arc screen, polyurethane screen, woven raw coal screen slotted screen, petroleum filter, salt industry net, centrifuge screen basket Filter, stainless steel mesh cover .
Uses: used in mining, coal, petroleum, fertilizer, grain and other industries slotted screens, oil filters, salt industry nets

Product introduction: The slotted screen surface is arranged by strips of trapezoidal section.

The screen slot is small, generally 0.25~2mm.
Material: 201, 202, 205, 302, 304, 304L, 316, 316L, 321, imported high-strength stainless steel wedge wire.

Stainless steel wedge wire screen specification

Stainless steel wedge wire screen feature

The stainless steel welded slotted screen is composed of two parts: a support bar and a screen bar.

The support bar can be round wire, triangular wire or trapezoidal wire, the screen bar is triangular wire (v-shaped wire), the gap size is accurate, and the filtering accuracy is high;
It has the characteristics of sturdy structure, high temperature resistance, corrosion resistance, good mechanical performance, long service life, safety and reliability. Can be used for filtration and screening of a variety of media.

Stainless steel wedge wire screen product application

1. Beer machinery: suitable for use in the filter tank of the brewery, with the advantages of high opening rate and long service life.
2. Mining machinery: used for desliming and dewatering in coal preparation plants.
3. Environmental protection: used for filling oil, gas, and water wells with sand and gravel to prevent sand from the formation and protect downhole and surface equipment. It has the advantages of high opening rate, large filtering area, fast filtering speed, long service life, etc.
4. Chemical industry and others: used for sewage treatment in sugar and paper mills; material filtration and dehydration in fertilizer plants and supporting use of various paint booths; starch filtration in food plants; and ventilation for grain storage.

5. Deinking stock washing,Separating different grades of coal,

6. As the fitting using in the water treating equipment .

7. The petroleum industry ,the petroleum product terminal filters and the chemical acid ,the alkali liquid filters.
