Anti skid Diamond Perforated Metal Walkway Aluminunm 5052 Plank Grating

Walkway aluminum plank grating basic information

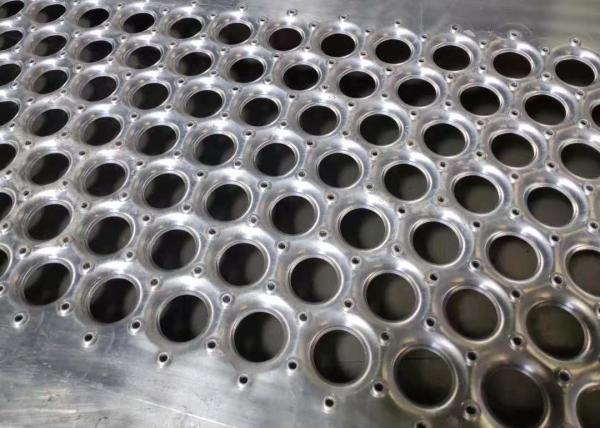

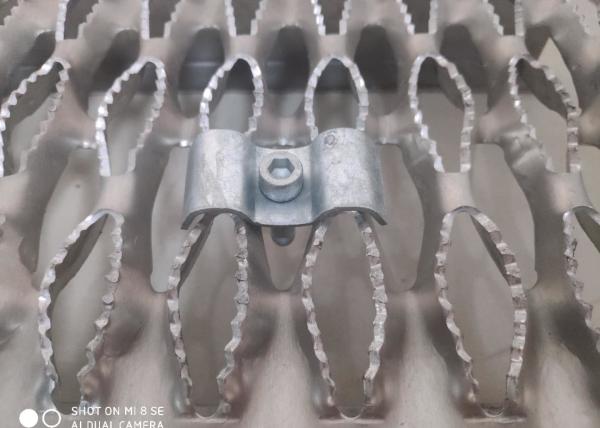

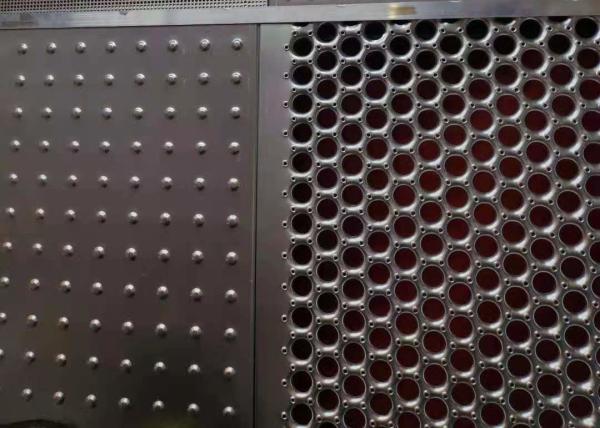

Anti skid plank grating is a kind of perforated metal sheets,Perforated metal comes in a selection of hole shapes,sizes,gauges and material types.The hole on anti slip sheet have embossed shape,round hole ,crocodile diamond shape and tear type.It has two kinds of the anti slip perforated sheet.

Anti skid walkway aluminum plank grating specification

* Material: Galvanized steel ,aluminum alloy and stainless steel

* Width : 4-3/4" 7' 9-1/2" 11-3/4" 18-3/4" and 24"

* Channel height : 1-1/2" 2" 2-1/2" and 3"

* Plank thickness : 12gauge, 14gauge 10gauge 16gauge

* Clear span:2' 2’6” 3'6" 4‘ 4'6" 5’ 5'6" 6‘6” 7’

* Hole available upon request on 3 & 4 & 5 diamond planks

* Special fabrication,cutting or specialty configurations available upon request

Walkway aluminum plank grating main features

1. Open design with ease of maintenance: The open diamond allows liquids,mud,snow and ice to rapidly pass through to keep the grating clean.Thus shedding slip-causing debris.

2. High load bearing capacity.The high strength-weight ratio is respnsible for its high performance.and it is more durable than like products.

3. Light in weight: It is easy to fabricate and install.

4.Corrosion resistance,rust resistance .

Walkway aluminum 5052 plank grating application

Grip strut plank can be made out of iron plate,aluminum plate or stainless steel plate etc.Based upon different working environments,If iron carbon material is used,when grip strut plank is ready.It can be electro-galvanized,hot galvanized and spray painting.Grip strut plank has skid resistance and beautiful look.So it is widely used as stair tread,walkway and workshop floor in factories and transportation facilities etc.When grip strut plank is coverd with mud,ice,snow,grease,oily soil or cleaning media,grip strut plank can efficiently safeguard the safety of operating person.
