Specifications
Brand Name :
Yuntong
Model Number :
YT-F240
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1 Square Meter
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
2000 square meters per week
Delivery Time :
5-8 work days
Packaging Details :
Paper carton inside,wooden case outside
Product name :
High Strength 316 Inox Cable Webnet For Building Outside
Raw Material :
AISI 304,316,316L
Measure :
Customized
Cable Structure :
7x7,7x19
Technique :
Woven
Color :
Stainless steel primary color
Angle :
60 degree
Mesh Type :
Woven Type，Ferruled Type
Mesh Opening :
from 25x25mm to 200x200mm
Cable Diameter :
1.2mm,1.5mm,2.0mm,2.4mm,3.2mm,4.0mm
Description

Plain Weave Style High Strength 316 Inox Cable Webnet For Building Outside

316 Inox Cable Webnet Introduction:

Architectural stainless steel cable webnet or building stainless steel wire rope net is made of stainless steel rope twisted up and down and extruded with steel sleeve. The diameter of the steel wire rope is 1.2, 1.5, 2.0, 3.0, 4.0mm, steel wire rope structure There are 7 * 7, 7 * 19, etc..And the materials are ss304, ss316, ss316L.

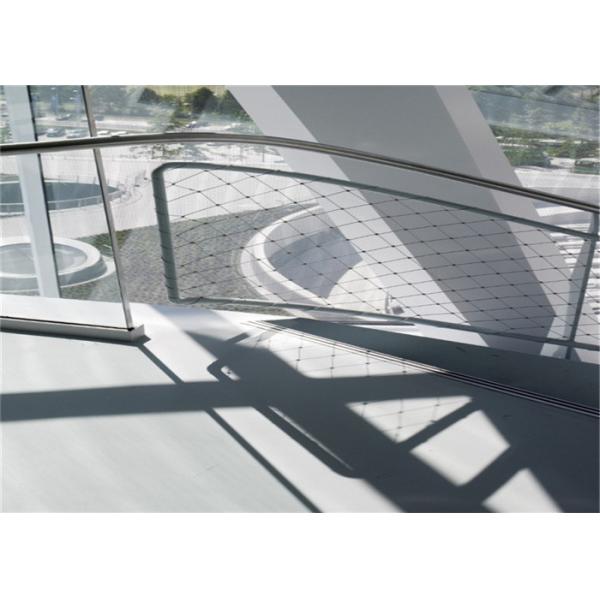

Inox cable webnet is used for railing infills or as a substitute for standard railings. It is equally suitable for such applications in residential, semi-public, and public spaces. Whether in homes, in kindergartens and schools, in museums and offices, on bridges or publicly accessible vantage points: Webnet is always convincing because it combines functionality, aesthetic appeal, economical use of materials, and longevity. And not least, this product is sustainable in the best sense of the term, especially as regards its cost-effectiveness.

Apart from the comparatively low investment, one of the key benefits of Webnet is that it involves virtually no maintenance expenditure.

Specifications Of the 316 Inox Cable Webnet :

  • Various Mesh Hole sizes: from 25x25mm to 200x200mm,30 x 30mm, 40 x 40mm, 51 x 51mm, 60 x 60mm, 90 x 90mm, 102 x 102mm, 120 x 120mm, 150 x 150mm are popular.
  • Various Wire Rope Diameters: from 1.2mm to 6.0mm, 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm are popular.
  • Mesh size: We can do the cable mesh according to customers' requirements.
  • Cable Structures: 7x7,7x19

316 Inox cable wenbet (Ferruled Type)
Item No.s Cable Diameter Mesh Opening Size(W x H) Normal Break
inch mm inch mm lbs
YT-3212F 1/8 3.2 4.75 x 8.23 120 x 207.8 1600
YT-3210F 1/8 3.2 4 x 6.9 102 x 156 1600
YT-3290F 1/8 3.2 3.55 x 6.15 90 x 156 1600
YT-3276F 1/8 3.2 3 x 5.2 76 x 131.6 1600
YT-3251F 1/8 3.2 2 x 3.46 51 x 88.3 1600
YT-2410F 3/32 2.4 4 x 6.9 102 x 176.7 920
YT-2490F 3/32 2.4 3.55 x 6.15 90 x 156 920
YT-2476F 3/32 2.4 3 x 5.2 76 x 131.6 920
YT-2460F 3/32 2.4 2.4 x 4.16 60 x 104 920
YT-2451F 3/32 2.4 2 x 3.46 51 x 88.3 920
YT-2076F 5/64 2.0 3 x 5.2 76 x 131.6 676
YT-2060F 5/64 2.0 2.4 x 4.16 60 x 104 676
YT-2051F 5/64 2.0 2 x 3.46 51 x 88.3 676
YT-2038F 5/64 2.0 1-1/2 x 2.6 38 x 65.8 676
YT-1676F 1/16 1.6 1.2 x 2.08 76 x 131.6 480
YT-1651F 1/16 1.6 2 x 3.46 51 x 88.3 480
YT-1638F 1/16 1.6 1-1/2 x 2.6 38 x 65.8 480
YT-1630F 1/16 1.6 1.2 x 2.08 30 x 52 480
YT-1625F 1/16 1.6 1 x 1.73 25.4 x 44 480
YT-1238F 3/64 1.2 1-1/2 x 2.6 38 x 65.8 270
YT-1230F 3/64 1.2 1.2 x 2.08 30 x 52 270
YT-1225F 3/64 1.2 1 x 1.73 25.4 x 44 270
YT-1220F 3/64 1.2 4/5 x 1.39 20 x 34.6 270

Mesh Type:

There are two kinds of the rope mesh,one is the woven type,the other is the ferruled type.

Plain Weave Style Architectural Wire Mesh High Strength 316 Inox Cable Webnet

Wire rope composition​:

Plain Weave Style Architectural Wire Mesh High Strength 316 Inox Cable Webnet

Package Dteails Of the inox cable webnet :

  • Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

  • Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

  • As customer's requirements

Plain Weave Style Architectural Wire Mesh High Strength 316 Inox Cable Webnet

Features:

1. It can be made to customer orders and statically tested – especially suitable for facades
2. Anti-corrosive, resist the rust, large breaking force, can be repeated use.
3. without toxic material, safety, environmental protection.
4. Green and environmental protection, without any chemical treatment,
5.The netting is clipped to the cable,
6. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
7. The mesh size and diameter can be modified
8. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
9.Good perspective, luxurious appearance and novel style.
10. Service life is more than 30 years;

Kindly Reminder:


Price For Inox cable webnet:

  1. Please confirm the cable diameter and mesh aperture you need?

  2. Which kind of cable webnet do you prefer? Woven or Ferruled .

  3. What is the material of the cable webnet you want ? SS304,SS316 or SS316L .

  4. Please tell us the dimension of the cable webnet you prefer and the quantity .

  5. You can also tell me where will you use the mesh then I will give you some advices based on your needs.

When we get your confirmations, then we will be able to offer our exact price timely.
