70 Degree Lead Free Flame Retardant Pvc Insulating Compound For Cable And Wire
70 Degree Lead Free Flame Retardant Pvc Insulating Compound For Cable And Wire
Specifications
Brand Name :
ARCHTEX
Model Number :
ASA
Certification :
REACH, FDA
Place of Origin :
CHINA
MOQ :
200kgs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Metric Tons/Metric Ton per month
Delivery Time :
5-8 working days
Packaging Details :
220kgs/200kgs iron drum or plastic drum, 1200kgs tons of barrels, liquid bags
Product Name :
PVC Compound granules
Material :
Raw PVC Material
Appearance :
Transparent Granule
Application :
Plastic
Tin content(%) :
19±0.5
Sulfur Content(%) :
12±0.5
Color(Pt-Co) :
≤50
Specific Gravity(25℃,g/cm³) :
1.16-1.19
Refractive Index(25℃) :
1.507-1.511
Viscosity(25℃,mPa•s) :
20-80
Monomethyl Tin Content(%) :
19.0-29.0
Trimethyl Tin Content(%) :
<0.1
Description

70 Degree Lead Free Flame Retardant Pvc Insulating Compound For Cable And Wire

Product Details

Plastic PVC Granules
1. Type:We provide all kinds of PVC granules, for shoessoles,cablewire,garden hose,rigid profiles and etc.

2, Use and standard: wire and cable

3, Process: extrusion

4, Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

5, color: Any colors, base on requirement.

6, Packing: 25kg net weight per in a kraft bag.

7, Transportation and storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.

We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.

Specifications

Grade UL 80℃ standard cable material UL 105℃ standard cable material
Properties Units/
Terms		 EUL80-K/UL1007 EUL80-K/UL1015 EUL105-K/UL1015 EUL105-K/UL1007

Temp Resistance 		℃ 80 80 105 105

Hardness		 Shore A 89±2A 89±2A 88A±2A (45P) 88A±2A (45P)

Tensile Strength		 PSI ≥2000 ≥1900 ≥1700 ≥1750

Elongation at break		 % ≥200 ≥190 ≥180 ≥180

Cold bend temp 		℃/4H -20 -20 -20 -20

Insulation Resistance

 M•KM ≥2.5 ≥2.5 ≥2.5 ≥10

Burning test		 -- VW-1 VW-1 VW-1 VW-1

Aging temp 		℃ 113 113 136 136

Aging time		 H 168 168 168 168

T.S After Aging		 PSI ≥2200 ≥2000 ≥1900 ≥1950

T.S residual rate		 % ≥70 ≥70 ≥75 ≥75

Elongation at break after aging		 % ≥160 ≥170 ≥130 ≥135

Elongation residual rate		 % ≥65 ≥65 ≥65 ≥65

Special Gravity		 g/cm3 1.43±0.02 1.43±0.02 1.43±0.02 1.43±0.02

Product Show

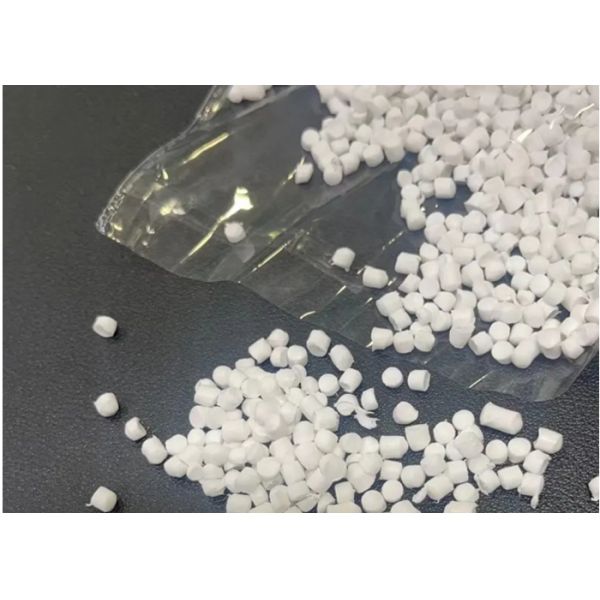

70 Degree Lead Free Flame Retardant Pvc Insulating Compound For Cable And Wire

FAQ

Q: Are you trading company or manufacturer?
A: We are manufacturer. Our factory is founded in 2007, we have more than 14 year experience on PVC stabilizer manufacturing.

Q: Can i get some samples?
A: Yes, free samples(5-10 Kg)are available for most of our products, you only need to pay the shipping cost.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: What's your payment terms?
A: T/T or Irrevocable L/C.

Q: What documents you provide?
A: Usually, we provide Commercial Invoice, Packing List, Bill of loading, COA, if your markets have any special requirements, let us know.
